    Littelfuse Inc. AQ24C-01FTG

    Part No.:
    AQ24C-01FTG
    Manufacturer:
    Littelfuse Inc.
    Category:
    TVS Diodes
    Package:
    SC-76, SOD-323
    Datasheet:
    KATY Electronic Technology Co., LTDAQ24C-01FTG.pdf
    Description:
    TVS DIODE 24VWM 42VC SOD323
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Littelfuse Inc.
    Package/Case:
    SC-76, SOD-323
    Series:
    AQ, SPA®
    Packaging:
    Tape & Reel (TR)
    Product Status:
    Active
    Type:
    Zener
    Unidirectional Channels:
    -
    Bidirectional Channels:
    1
    Voltage - Reverse Standoff (Typ):
    24V (Max)
    Voltage - Breakdown (Min):
    -
    Voltage - Clamping (Max) @ Ipp:
    42V
    Current - Peak Pulse (10/1000µs):
    7A (8/20µs)
    Power - Peak Pulse:
    450W
    Power Line Protection:
    No
    Applications:
    CAN
    Capacitance @ Frequency:
    50pF @ 1MHz (Max)
    Operating Temperature:
    -40°C ~ 150°C (TA)
    Grade:
    Automotive
    Qualification:
    AEC-Q101
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    SOD-323

    1. How to order AQ24C-01FTG on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that AQ24C-01FTG is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the AQ24C-01FTG. All suppliers must pass our qualification reviews before they can publish their products including AQ24C-01FTG on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of AQ24C-01FTG products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the AQ24C-01FTG price and inventory displayed accurate?

    The price and inventory of AQ24C-01FTG fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of AQ24C-01FTG?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the AQ24C-01FTG we delivered, we will accept the replacement or return of the AQ24C-01FTG only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of AQ24C-01FTG.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as AQ24C-01FTG pin diagram, AQ24C-01FTG datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

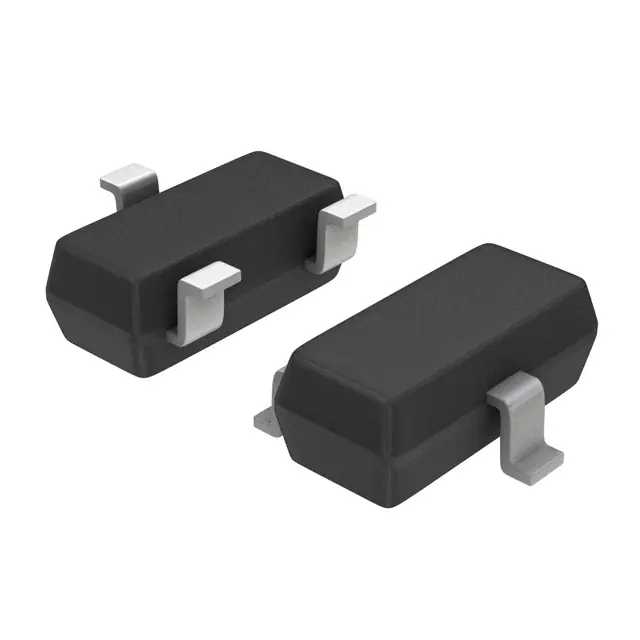

    Image AQ24CANA-02HTG AQ24CANFD-02HTG AQ24COM-02HTG AQ24COM-01LTG AQ24COM-02JTG
    Part Number AQ24CANA-02HTG AQ24CANFD-02HTG AQ24COM-02HTG AQ24COM-01LTG AQ24COM-02JTG
    Manufacturer Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc. Littelfuse Inc.
    Package/Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 SC-79, SOD-523 SC-70, SOT-323
    Series AQ24CANA, SPA® AQ, SPA® AQ24COM-02 AQ24COM-02 AQ24COM-02
    Packaging Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
    Product Status Active Active Active Active Active
    Type Zener Zener Zener Zener Zener
    Unidirectional Channels - - - - -
    Bidirectional Channels 2 2 2 1 2
    Voltage - Reverse Standoff (Typ) 24V (Max) 24V (Max) 24V (Max) 24V (Max) 24V (Max)
    Voltage - Breakdown (Min) 26.7V 26.7V 26V 26V 26V
    Voltage - Clamping (Max) @ Ipp 50V 50V 50V (Typ) 50V (Typ) 50V (Typ)
    Current - Peak Pulse (10/1000µs) 5A (8/20µs) 3A (8/20µs) 5A (8/20µs) 5A (8/20µs) 5A (8/20µs)
    Power - Peak Pulse 250W 200W 250W 250W 250W
    Power Line Protection No No No No No
    Applications CAN CAN CAN CAN CAN
    Capacitance @ Frequency 15pF @ 1MHz 11.5pF @ 1MHz 13pF @ 1MHz 13pF @ 1MHz 13pF @ 1MHz
    Operating Temperature -40°C ~ 150°C (TA) -40°C ~ 150°C (TA) -40°C ~ 150°C (TA) -40°C ~ 150°C (TA) -40°C ~ 150°C (TA)
    Grade Automotive Automotive Automotive Automotive Automotive
    Qualification AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101
    Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
    Supplier Device Package SOT-23-3 SOT-23-3 SOT-23-3 SOD-523 SC-70-3
