    Finder Relays, Inc. 62.32.9.125.0070

    Part No.:
    62.32.9.125.0070
    Manufacturer:
    Finder Relays, Inc.
    Category:
    Power Relays, Over 2 Amps
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTD62.32.9.125.0070.pdf
    Description:
    RELAY GEN PURPOSE DPDT 16A 125V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Finder Relays, Inc.
    Series:
    62
    Packaging:
    Bulk
    Product Status:
    Obsolete
    Mounting Type:
    Socketable
    Coil Voltage:
    125VDC
    Contact Form:
    DPDT (2 Form C)
    Contact Rating (Current):
    16 A
    Switching Voltage:
    400VAC - Max
    Load - Max Switching:
    6400VA
    Coil Current:
    10.4 mA
    Coil Type:
    Non Latching
    Features:
    Diode, Lighted Indicator, Test Button
    Termination Style:
    Plug In, Quick Connect - 0.187" (4.7mm)
    Seal Rating:
    -
    Coil Insulation:
    -
    Must Operate Voltage:
    100 VDC
    Must Release Voltage:
    25 VDC
    Operate Time:
    11 ms
    Release Time:
    4 ms
    Operating Temperature:
    -40°C ~ 70°C
    Contact Material:
    Silver Cadmium Oxide (AgCdO)
    Relay Type:
    General Purpose
    Grade:
    -
    Qualification:
    -

    1. How to order 62.32.9.125.0070 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that 62.32.9.125.0070 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the 62.32.9.125.0070. All suppliers must pass our qualification reviews before they can publish their products including 62.32.9.125.0070 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of 62.32.9.125.0070 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the 62.32.9.125.0070 price and inventory displayed accurate?

    The price and inventory of 62.32.9.125.0070 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of 62.32.9.125.0070?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 62.32.9.125.0070 we delivered, we will accept the replacement or return of the 62.32.9.125.0070 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of 62.32.9.125.0070.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as 62.32.9.125.0070 pin diagram, 62.32.9.125.0070 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

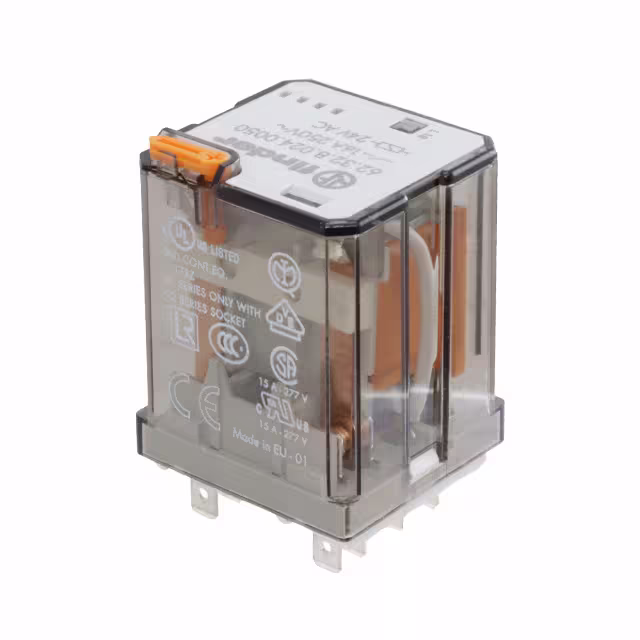

    Image 62.32.8.024.0050 62.22.9.024.0000 62.33.8.230.0040 62.33.9.024.0070 62.33.9.024.4300
    Part Number 62.32.8.024.0050 62.22.9.024.0000 62.33.8.230.0040 62.33.9.024.0070 62.33.9.024.4300
    Manufacturer Finder Relays, Inc. Finder Relays, Inc. Finder Relays, Inc. Finder Relays, Inc. Finder Relays, Inc.
    Series 62 62 62 62 62
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Obsolete Obsolete Obsolete Obsolete Active
    Mounting Type Socketable Through Hole Socketable Socketable Socketable
    Coil Voltage 24VAC 24VDC 230VAC 24VDC 24VDC
    Contact Form DPDT (2 Form C) DPDT (2 Form C) 3PDT (3 Form C) 3PDT (3 Form C) 3PST-NO (3 Form A)
    Contact Rating (Current) 16 A 16 A 16 A 16 A 16 A
    Switching Voltage 400VAC - Max 400VAC - Max 400VAC - Max 400VAC - Max 400VAC - Max
    Load - Max Switching 6400VA 6400VA 6400VA 6400VA 6400VA
    Coil Current 90 mA 54 mA 10.5 mA 54 mA 125 mA
    Coil Type Non Latching Non Latching Non Latching Non Latching Non Latching
    Features Lighted Indicator, Test Button - Mechanical Indicator, Test Button Diode, Lighted Indicator, Test Button -
    Termination Style Plug In, Quick Connect - 0.187" (4.7mm) PC Pin Plug In, Quick Connect - 0.187" (4.7mm) Plug In, Quick Connect - 0.187" (4.7mm) Plug In, Quick Connect - 0.187" (4.7mm)
    Seal Rating - - - - -
    Coil Insulation - - - - -
    Must Operate Voltage 19.2 VAC 19.2 VDC 184 VAC 19.2 VDC 20.4 VDC
    Must Release Voltage 4.8 VAC 4.8 VDC 46 VAC 4.8 VDC 4.8 VDC
    Operate Time 11 ms 11 ms 11 ms 11 ms 11 ms
    Release Time 4 ms 4 ms 4 ms 4 ms 4 ms
    Operating Temperature -40°C ~ 70°C -40°C ~ 70°C -40°C ~ 70°C -40°C ~ 70°C -40°C ~ 70°C
    Contact Material Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) Silver Tin Oxide (AgSnO)
    Relay Type General Purpose General Purpose General Purpose General Purpose General Purpose
    Grade - - - - -
    Qualification - - - - -
