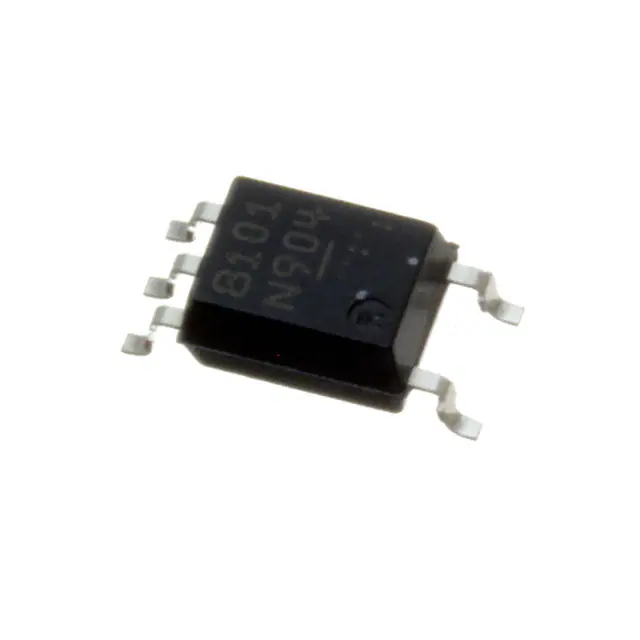

    CEL PS8101-V-A

    Part No.:
    PS8101-V-A
    Manufacturer:
    CEL
    Category:
    Transistor, Photovoltaic Output Optoisolators
    Package:
    6-SOIC (0.173", 4.40mm Width), 5 Leads
    Datasheet:
    KATY Electronic Technology Co., LTDPS8101-V-A.pdf
    Description:
    OPTOISOLATOR 3.75KV TRANS 6SO
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    CEL
    Series:
    NEPOC
    Package/Case:
    6-SOIC (0.173", 4.40mm Width), 5 Leads
    Packaging:
    Tube
    Product Status:
    Obsolete
    Number of Channels:
    1
    Voltage - Isolation:
    3750Vrms
    Current Transfer Ratio (Min):
    15% @ 16mA
    Current Transfer Ratio (Max):
    35% @ 16mA
    Turn On / Turn Off Time (Typ):
    500ns, 600ns
    Rise / Fall Time (Typ):
    -
    Input Type:
    DC
    Output Type:
    Transistor
    Voltage - Output (Max):
    35V
    Current - Output / Channel:
    8mA
    Voltage - Forward (Vf) (Typ):
    1.7V
    Current - DC Forward (If) (Max):
    25 mA
    Vce Saturation (Max):
    -
    Grade:
    -
    Qualification:
    -
    Operating Temperature:
    -55°C ~ 100°C
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    5-SOP
