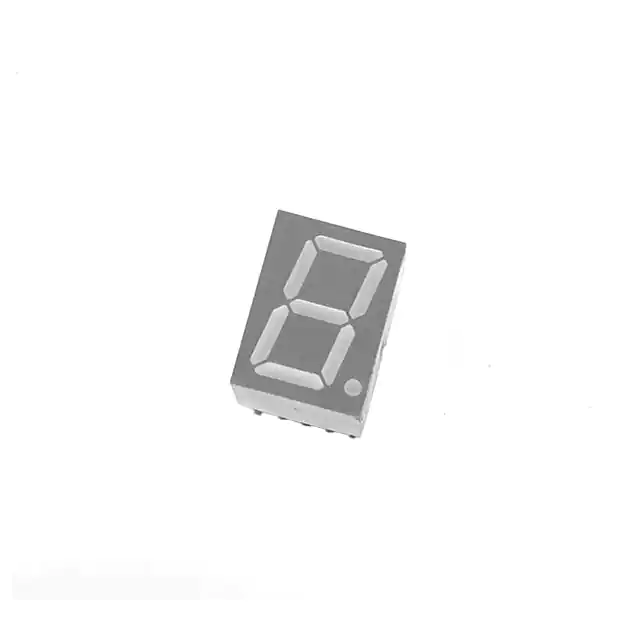

    Broadcom Limited HDSP-5601

    Part No.:
    HDSP-5601
    Manufacturer:
    Broadcom Limited
    Category:
    LED Character and Numeric
    Package:
    10-DIP (0.600", 15.24mm)
    Datasheet:
    KATY Electronic Technology Co., LTDHDSP-5601.pdf
    Description:
    DISPLAY 7SEG 0.56" SGL GRN 10DIP
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Broadcom Limited
    Series:
    HDSP-560x
    Package/Case:
    10-DIP (0.600", 15.24mm)
    Packaging:
    Tube
    Product Status:
    Active
    Display Format:
    -
    Number of Characters:
    1
    Size / Dimension:
    0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm)
    Digit/Alpha Size:
    0.56" (14.22mm)
    Display Type:
    7-Segment
    Common Pin:
    Common Anode
    Color:
    Green
    Voltage - Forward (Vf) (Typ):
    2.1V
    Current - Test:
    10mA
    Millicandela Rating:
    2.5mcd
    Wavelength - Peak:
    566nm
    Power Dissipation (Max):
    105mW
