Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2530650000SPD TYPE 2 1.5KVDC MCOV 3 POLE |
9 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 3 | 1.5kVDC | 20 kA | 30 kA | 65 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cURus, VDE |
|
|
2801289SPD 10VAC/15VDC MCOV 1 POLE |
2 |
|
Datasheet |
PT | Bulk | Active | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 900 V | -40°C ~ 70°C | - | DIN Rail | UL |
|
|
SPDN-D277-3YSPD TYPE 1 350V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-D | Bulk | Active | Type 1 | Module Only | 1 | 350V | 20 kA | 50 kA | 200 kA | 2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-D120-3YSPD TYPE 1 150V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-D | Bulk | Active | Type 1 | Module Only | 1 | 150V | 20 kA | 50 kA | 200 kA | 1 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
1260-2SMG-230SPD 275VAC MCOV 1 POLE |
9 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-3S-600SPD TYP 2/TYP 4 690V MCOV 3 POLE |
10 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 3 | 690V | 20 kA | 40 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1260-2NSMG-120SPD 150VAC MCOV 1 POLE |
10 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-3S-480SPD TYP 2/TYP 4 550V MCOV 3 POLE |
6 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 3 | 550V | 20 kA | 50 kA | 200 kA | 1.8 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1093400000SPD 28VAC/40VDC MCOV 1 POLE |
3 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 28VAC, 40VDC | 2.5 kA | 10 kA | - | - | - | -40°C ~ 70°C | - | DIN Rail | CE, UL |
|
2910390SPD TYPE 1 750VAC MCOV 1 POLE |
3 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 750VAC | 15 kA | 30 kA | 25 kA | 4 kV | 2.9 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
2730550000SPD TYPE 2 300VAC MCOV 3 POLE |
8 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 3 | 300VAC | 20 kA | 50 kA | 200 kA | - | - | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
|
1250A-4S-400SPD TYP 2/TYP 4 420V MCOV 4 POLE |
10 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 4 | 420V | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

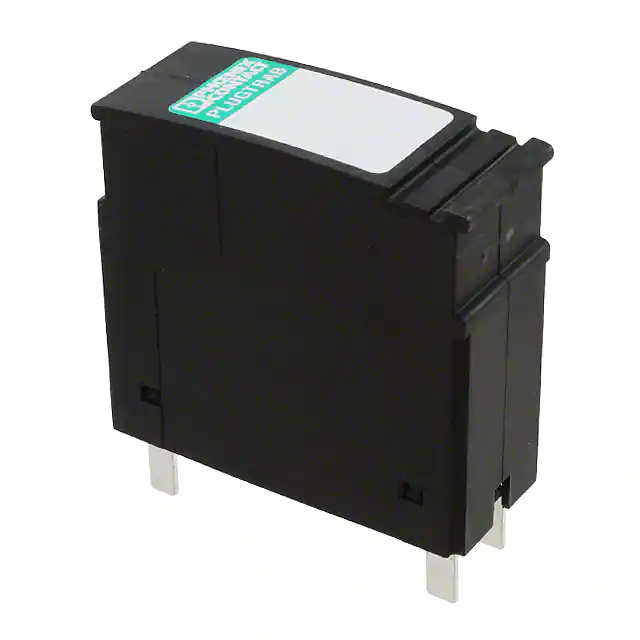

2839211SPD 4VAC/6VDC MCOV 1 POLE |
3 |
|
Datasheet |
- | Bulk | Active | - | Base + Module | 1 | 4VAC, 6VDC | 10 kA | 10 kA | - | - | 450 V | -40°C ~ 85°C | - | DIN Rail | cUL, EAC, UL |
|

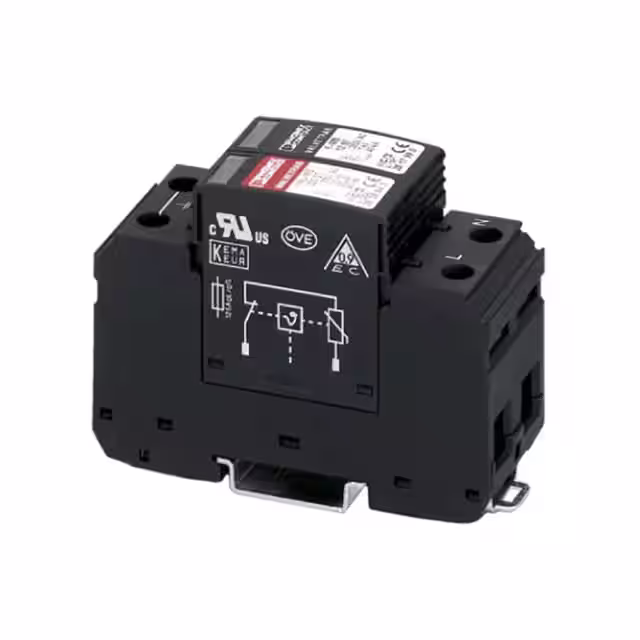

2804380SPD TYPE 2 640VAC MCOV 2 POLE |
20 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 2 | 640VAC | 20 kA | 40 kA | 25 kA | - | 1.8 kV | -40°C ~ 80°C | - | DIN Rail | CB, CCA, CSA, cUL, cULus, EAC, KEMA-KEUR, OVE, UL |
|

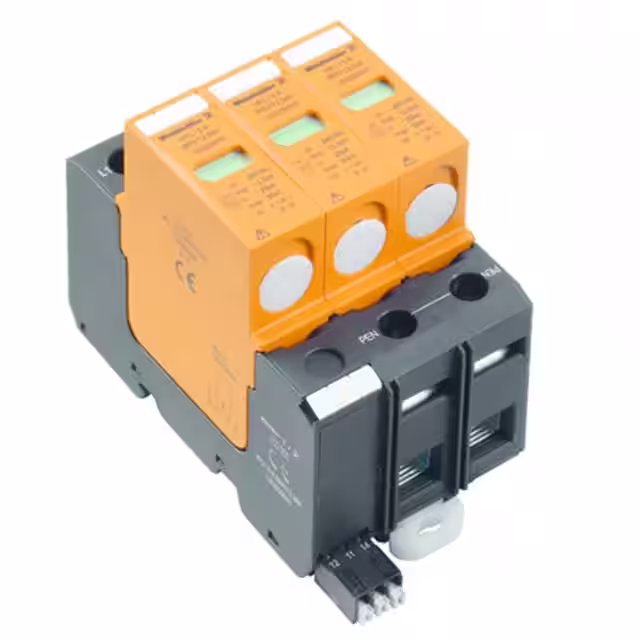

1352220000SPD TYP1/TYP2 280VAC/230VDC MCOV |
3 |
|
Datasheet |
- | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 280VAC, 230VDC | 25 kA | 50 kA | 25 kA | - | - | -40°C ~ 70°C | Remote Signaling Contacts | DIN Rail | CE, EAC, UL |
|
|
HAW562-8DASPD TYPE 1 33VDC/23.3VAC MCOV |
8 |
|
Datasheet |
HAW562 | Box | Active | Type 1 | Base + Module | 1 | 33VDC, 23.3VAC | 5 kA | - | - | - | 1.4 kV | -40°C ~ 80°C | Visual Life Indicator | DIN Rail | - |
|
|
2905350SPD TYPE 2 350VAC MCOV 1 POLE |
5 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 350VAC | 20 kA | 40 kA | 50 kA | - | 850 V | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
2905471SPD TYPE 1/TYPE 2 350VAC MCOV |
2 |
|
Datasheet |
FLT | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350VAC | 25 kA | - | 25 kA | - | 1.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cURus, EAC |
|
|
1260-2SMG-120SPD 150VAC MCOV 1 POLE |
10 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2905472SPD TYPE 1 350VAC MCOV 1 POLE |
3 |
|
Datasheet |
FLT | Bulk | Active | Type 1 | Base + Module | 1 | 350VAC | 100 kA | - | - | 1.2 kV | 1.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
