RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZC-C-0W02RF ANT 2.4GHZ CHIP SOLDER SMD Synzen |
13,790 |
|
Datasheet |
SIRIUSa | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.75 | -11dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, WLAN, ISM |
|

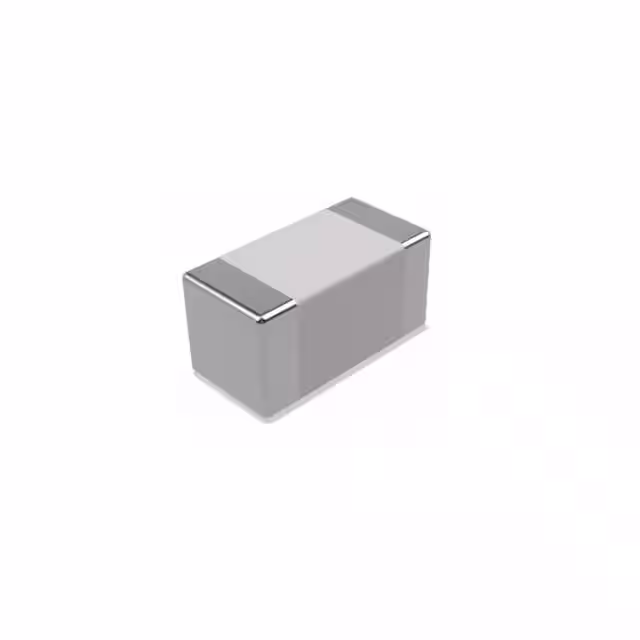

SZC-C-0M01ISM 868/915MHZ SMD ANTENNA Synzen |
20,000 |
|
Datasheet |
VEGA | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 889MHz | 863MHz ~ 915MHz | Chip | 1 | 2.1 | -8.5dB | 1.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | LoRa, ISM |
|
|
SZC-C-1G18RF ANT GNSS CHIP SOLDER SMD Synzen |
15,970 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Chip | 1 | 1.7 | -12.5dB | 3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | GNSS |
|
SZP-C-0W01WI-FI/BLE 2.4-2.5GHZ SMD CHIP Synzen |
5,000 |
|
Datasheet |
AULIN | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.1 | -8dB | 1.65dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Bluetooth, WLAN, Zigbee |
|

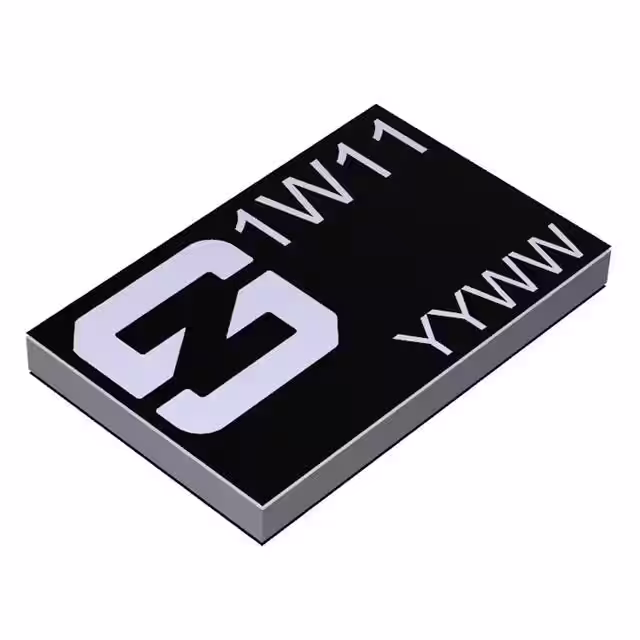

SZP-C-1W11Tri-Band WLAN/BLE SMD Antenna Le Synzen |
900 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Chip | 3 | - | - | 0.8dBi, 2.48dBi, 2.82dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Wi-Fi |
|

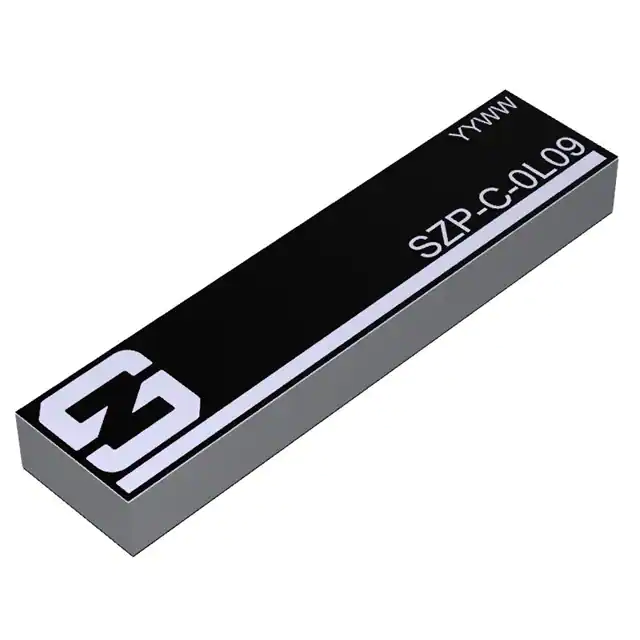

SZP-C-0L094GLTE ANT 698-2690MHZ SMD CHIP Synzen |
2,000 |
|
Datasheet |
PROCYON a | Tape & Reel (TR) | Active | Cellular | Wide Band | - | 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Chip | 5 | 3.1, 2.9, 2.8, 3.0 | - | 1.2dBi, 3.1dBi, 2.5dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | - |
|

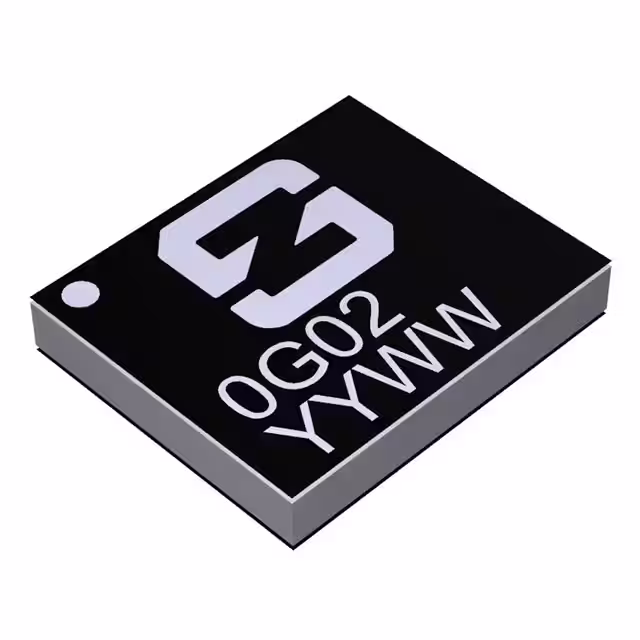

SZP-C-0G02GNSS ANT 1.559-1.61GHZ SMD CHIP Synzen |
2,000 |
|
Datasheet |
LODESTAR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Chip | 1 | 1.5 | -12dB | 0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Beidou, Galileo, GLONASS, GPS |
|

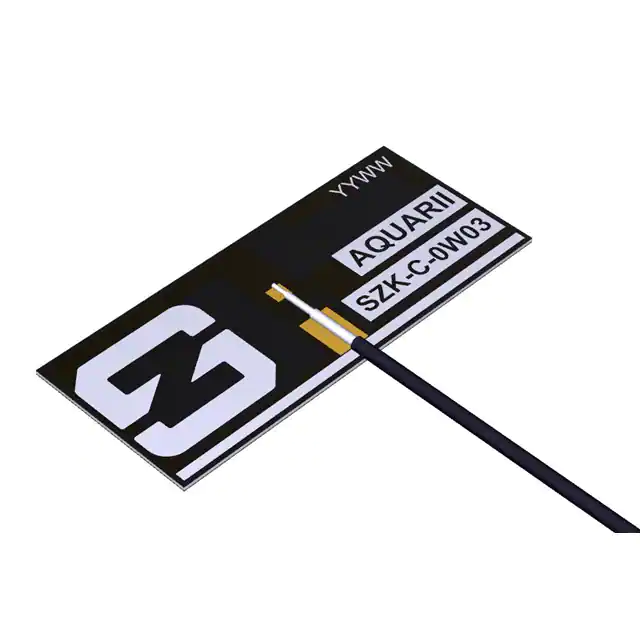

SZK-C-0W03WI-FI ANT 2.4-5GHZ FLAT PATCH IP Synzen |
500 |
|
Datasheet |
AQUARII | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 1.85, 1.9 | -10dB, -10dB | 1.85dBi, 5.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | WLAN |
|

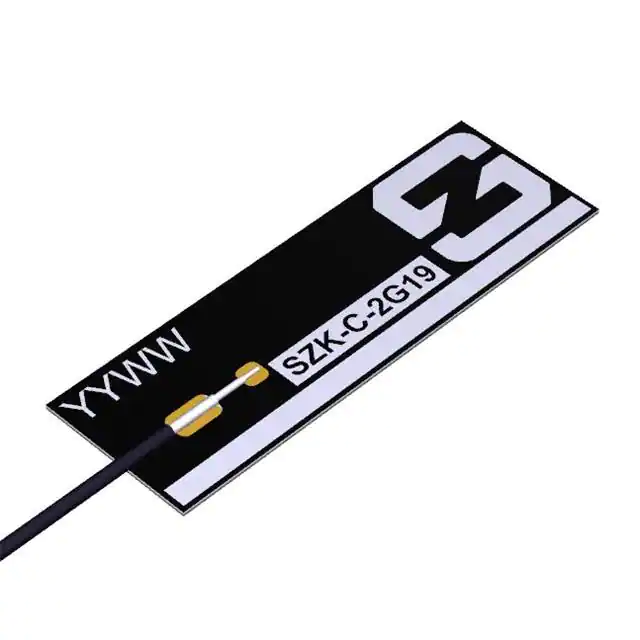

SZK-C-2G19GNSS ANT FLAT PATCH IPEX Synzen |
200 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | - | - | 2.79dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
SZK-C-0G04GNSS ANT FLAT PATCH IPEX Synzen |
890 |
|
Datasheet |
ZETA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Flat Patch | 1 | 1.65 | -12dB | 2dBi | - | - | U.FL (UMCC), I-PEX MHF6 | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GPS |
