Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DIP24-1A72-12LRELAY REED SPST 1A 24V |
164 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|

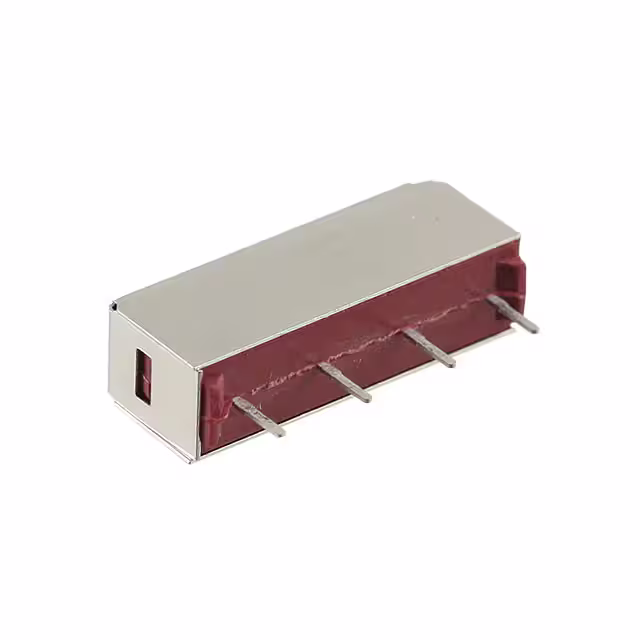

9001-12-10RELAY REED SPST 500MA 12V |
240 |
|
Datasheet |
9000 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|

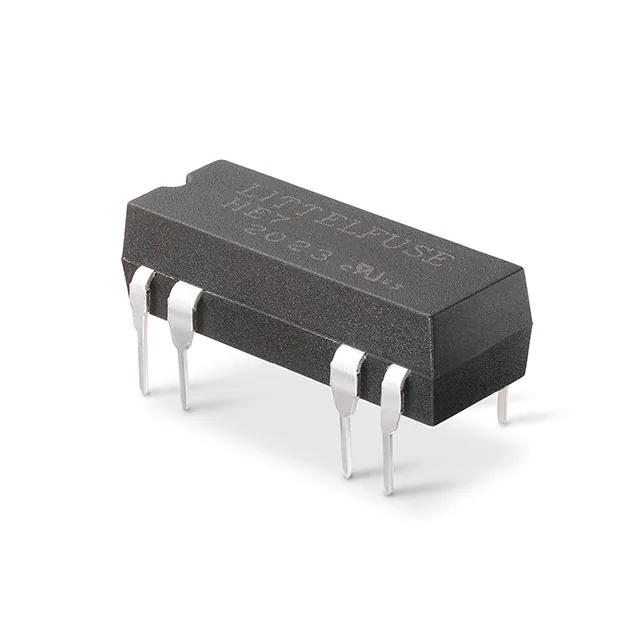

HE721C1230RELAY REED SPDT 250MA 12V |
4,976 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
HE721R1210RELAY REED SPDT 250MA 12V |
5,970 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|

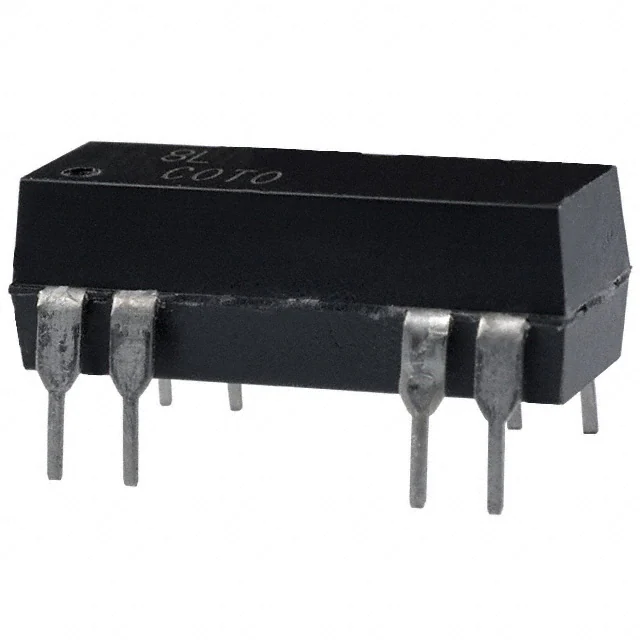

8L41-24-001RELAY REED SPDT 250MA 24V |
419 |
|
Datasheet |
8L | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|

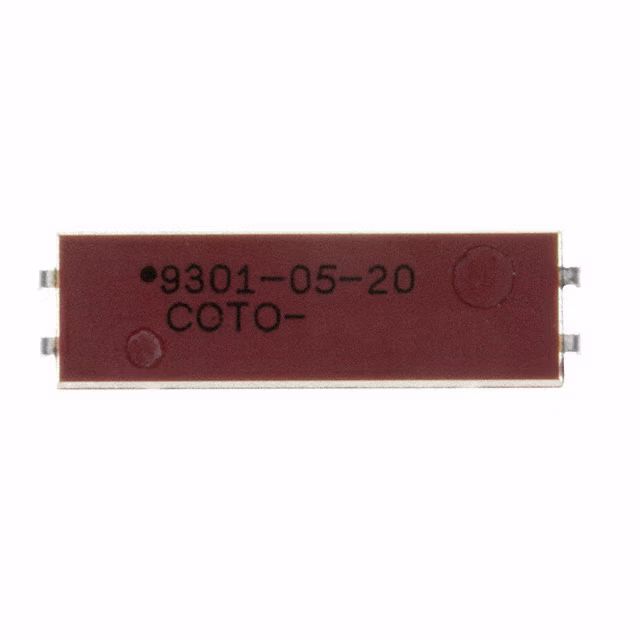

9301-05-20RELAY REED SPST 500MA 5V |
1,102 |
|
Datasheet |
9300 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | J Lead | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
HE721E2400RELAY REED SPDT 250MA 24V |
4,985 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
DIP24-1C90-51DRELAY REED SPDT 500MA 24V |
158 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|
SIL05-1C90-51DGENERAL PURPOSE REED RELAY, FORM |
391 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|
|
V23100V4005A010RELAY REED SPST 500MA 5V |
1,249 |
|
Datasheet |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4012A000RELAY REED SPST 500MA 12V |
1,187 |
|
Datasheet |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
SIL05-1C90-51QGENERAL PURPOSE REED RELAY, FORM |
375 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|

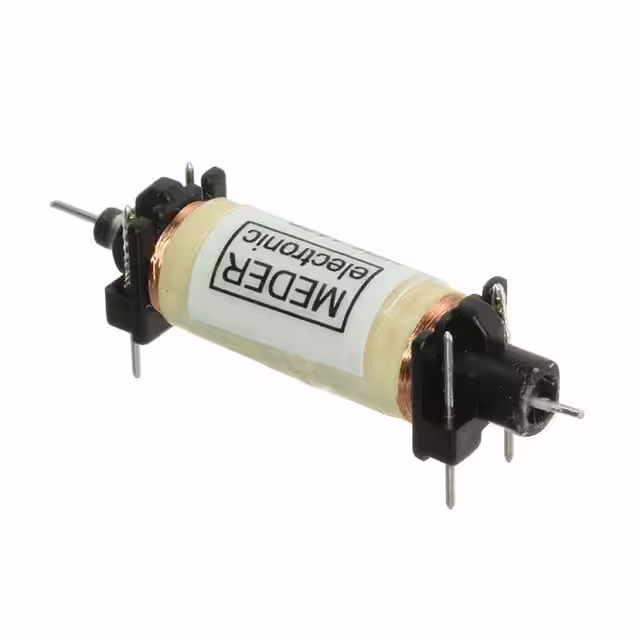

HI05-1A66REED RELAY SPST-NO 5V PCB |
470 |
|
Datasheet |
HI | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C | - |
|
|
SHV24-1A85-78L3KHIGH VOLTAGE REED RELAY, FORM 1A |
238 |
|
Datasheet |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
|
|
SIL05-1C90-51LGENERAL PURPOSE REED RELAY, FORM |
400 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|
|
SHV24-1A85-78D4KHIGH VOLTAGE REED RELAY, FORM 1A |
143 |
|
Datasheet |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
|
|
MRE12-2A85-PHIGH VOLTAGE REED RELAY, FORM 1A |
119 |
|
Datasheet |
MRE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|

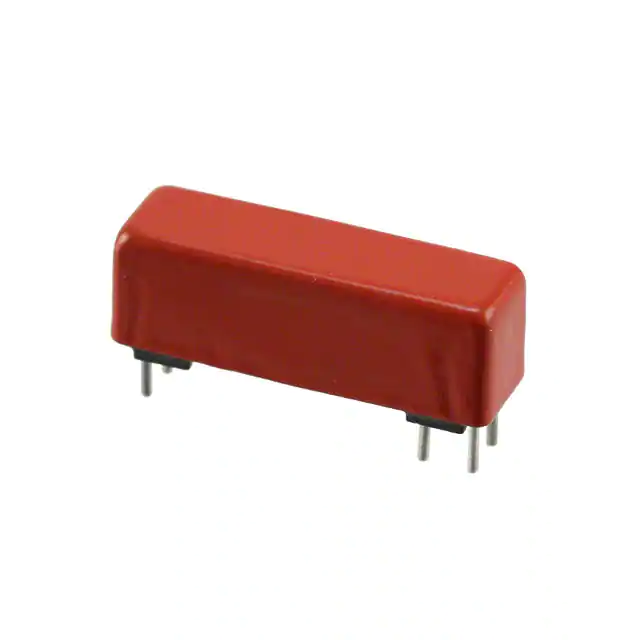

2904-05-411RELAY REED SPST 500MA 5V |
441 |
|
Datasheet |
2900 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
2200-2311RELAY XINCOM CD REV. D BOM/MFG Y |
365 |
|
Datasheet |
2200 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 4 VDC | 1 VDC | 650 µs | 20 µs | -20°C ~ 70°C | - |
|
|
2904-12-311RELAY REED SPST 500MA 12V |
231 |
|
Datasheet |
2900 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
