Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL4118-X007TOPTOISOLATOR 5.3KV TRIAC |
2,894 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR |
|
IL4218-X017TOPTOISOLATOR 5.3KV TRIAC |
1,097 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | BSI, CSA, cUR, FIMKO, UR, VDE |
|
MOC3020SOPTOISOLATOR 5KV TRIAC 6SMD |
4,011 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 30mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
.jpg)
|
VO3023OPTOISOLATOR 5K TRIAC 1CH 6DIP |
1,179 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs | 5mA | 1 A | 200µA (Typ) | - | 1.3V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, cUL, FIMKO, UL |
|
TLP265J(TPL,EX36 PB-F TRIAC COUPLER SO6 ROHS |
8,234 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 10mA | 70 mA | 1mA (Typ) | 20µs | 1.27V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
MOC3022SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
294 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
MOC3023VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
246 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3051SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
868 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 15mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UR, VDE |
|
MOC3023XSMT&ROPTOISOLATOR 5.3KV TRIAC 6SMD |
2,216 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 400 V | 10V/µs (Typ) | 5mA | - | 100µA | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
MOC3023TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
4,990 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
MOC3063XOPTOISOLATOR 5.3KV TRIAC 6DIP |
1,027 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3041XOPTOISOLATOR 5.3KV TRIAC 6DIP |
623 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 15mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3062XOPTOISOLATOR 5.3KV TRIAC 6DIP |
195 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3022VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
1,000 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3020SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
733 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 30mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3071M6-PIN DIP RAND. PHASE TRIAC OUTP |
837 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 15mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3022SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
377 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|

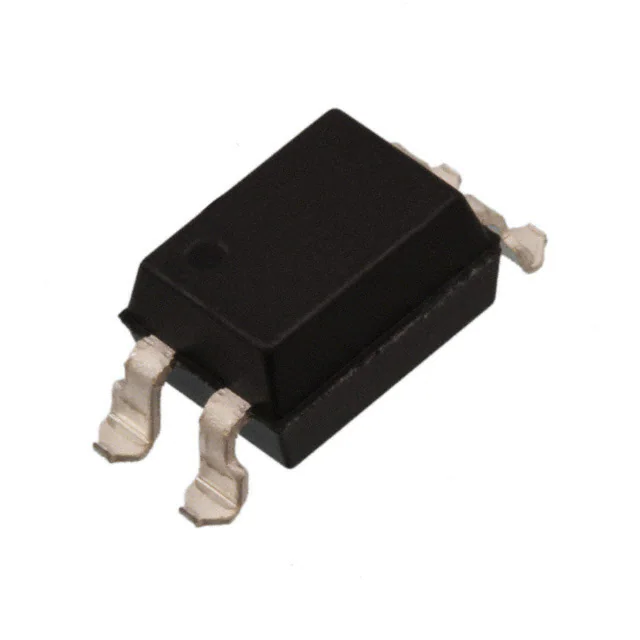

MF306#OPTOISOLATOR 3.75KV TRIAC |
2,940 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 1kV/µs | 30mA | 70 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 110°C | Surface Mount | - | - |
|
|
MOC3041XSMOPTOISOLATOR 5.3KV TRIAC 6SMD |
2,189 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 15mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
|
MOC3063XSMOPTOISOLATOR 5.3KV TRIAC 6SMD |
1,227 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
