Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

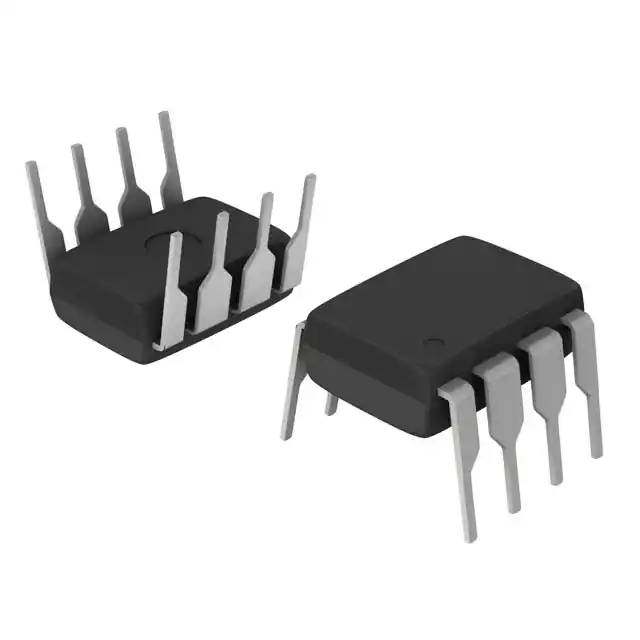

6N137OPTOISO 5KV 1CH OPEN COLL 8DIP |
1,330 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10MBd | 75ns, 75ns | 22ns, 6.9ns | 1.38V | 20mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
6N137SOPTOISO 5KV 1CH OPEN COLL 8SMD |
23,292 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 15MBd | 75ns, 75ns | 22ns, 6.9ns | 1.38V | 20mA | 7V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
6N137S-TA1OPTOISO 5KV 1CH OPEN COLL 8SMD |
200,547 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 15MBd | 75ns, 75ns | 22ns, 6.9ns | 1.38V | 20mA | 7V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
.JPG)
|
TLP2362(TPR,EOPTOISO 3.75KV OPEN COLL SO6-5 |
14,208 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10MBd | 100ns, 100ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
H11L1MOPTOISO 4.17KV OPN COLL 6DIP |
34,089 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
|
TLP2355(TPL,EX36 PB-F PHOTOCOUPLER SO6 ROHS T |
10,871 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 250ns, 250ns | 15ns, 12ns | 1.55V | 20mA | 3V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2361(TPL,EOPTOISO 3.75KV PSH PULL SO6-5 |
7,200 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2358(TPL,E)X36 PB-F PHOTOCOUPLER |
3,235 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 250ns, 250ns | 15ns, 12ns | 1.55V | 20mA | 3V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
H11L1SR2MOPTOISO 4.17KV OPN COLL 6SMD |
15,867 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
TLP2361(V4-TPL,EOPTOISO 3.75KV PSH PULL SO6-5 |
14,853 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
.JPG)
|
H11L1S(TA)OPTOISO 5KV OPEN COLLECTOR 6SMD |
13,707 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
H11L1SMOPTOISO 4.17KV OPN COLL 6SMD |
5,847 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
TLP2745(TP,EOPTOISO 5KV PUSH PULL SO6L |
14,792 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 3ns, 3ns | 1.55V | 15mA | 4.5V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
TLP2348(V4-TPL,EHIGH SPEED LOGIC OUTPUT OPTOCOUP |
233 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | 10Mbps | 120ns, 120ns | 3ns, 3ns | 1.55V | 15mA | 4.5V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO, 5 Lead |
|
|
H11L1SMT&ROPTOISO 5KV OPEN COLLECTOR 6SMD |
8,189 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 6µs, 3µs | 100ns, 50ns | - | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Surface Mount | 6-SMD |
|
|
H11L2SR2MOPTOISO 4.17KV OPN COLL 6SMD |
3,024 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
H11L1SR2VMOPTOISO 4.17KV OPN COLL 6SMD |
4,730 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
TLP2391(TPL,EX36 PB PHOTOCOUPLER DUAL POLARIT |
6,934 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 100ns, 100ns | 3ns, 3ns | 1.55V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
6N137SMOPTOISO 5KV 1CH OPEN COLL 8SMD |
3,171 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
TLP2366(TPL,EOPTOISO 3.75KV PSH PULL SO6-5 |
9,274 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
