Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STGAP2HSCMTRDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
3,750 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
STGAP4STRDISCRETE STMicroelectronics |
1,197 |
|
Datasheet |
- | 36-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | - | 100V/ns | - | 30ns | 15ns, 45ns | - | 3.4A | - | - | 0.3V ~ 28V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | 36-SO | IEC/EN/DIN, UL, VDE |
|
STGAP2SMTRDGTL ISO 1.7KV 1CH GATE DVR 8SO STMicroelectronics |
6,548 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 9.6V ~ 26V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | - |
|
|
STGAP2HDMTRDIGITAL ISO 6KV 2CH GT DVR 36SO STMicroelectronics |
1,375 |
|
Datasheet |
- | 36-BSOP (0.295", 7.50mm Width), 32 Leads | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 6000Vrms | 100V/ns | 90ns, 90ns | - | 30ns, 30ns | 4A, 4A | 4A | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 36-SO | UL, VDE |
|

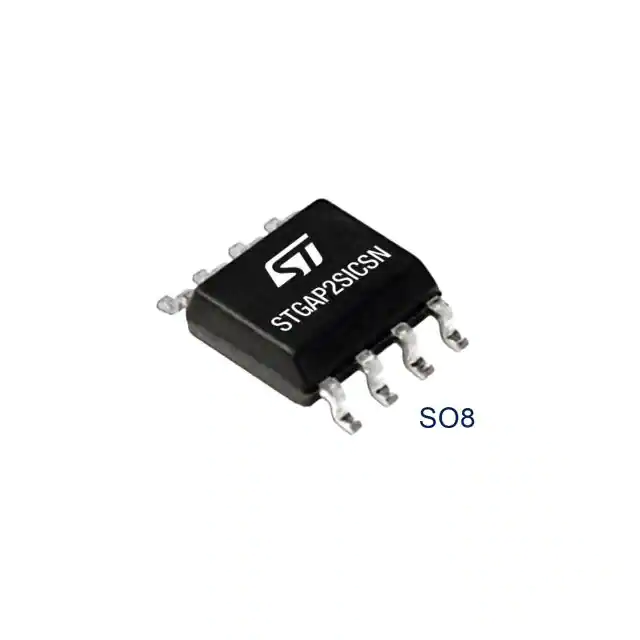

STGAP2SICSNTRDIGITAL ISO 4KV 1CH GATE DVR 8SO STMicroelectronics |
1,837 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 4000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 16.4V ~ 26V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | UL |
|
|
STGAP2SCMTRDGTL ISO 1.7KV 1CH GATE DVR 8SO STMicroelectronics |
16,806 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | - |
|
|
STGAP2HSMTRDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
717 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
STGAP2SICSCDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
1,061 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|

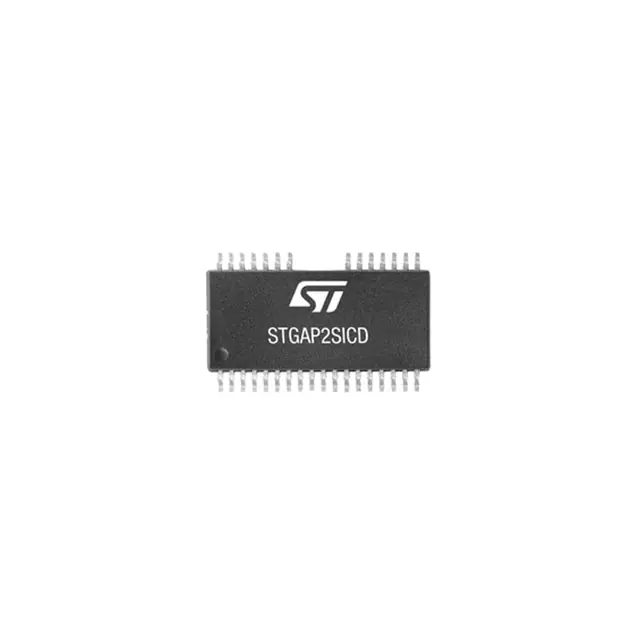

STGAP2SICDTRDIGITAL ISO 6KV 2CH GT DVR 36SO STMicroelectronics |
1,844 |
|
Datasheet |
- | 36-BSOP (0.295", 7.50mm Width), 32 Leads | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 6000Vrms | 100V/ns | 90ns, 90ns | - | 30ns, 30ns | 4A, 4A | 4A | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 36-SO | UL, VDE |
|
|

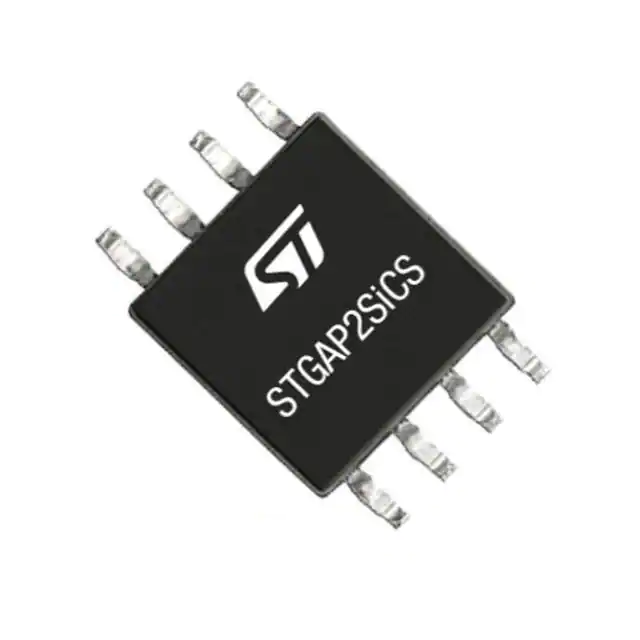

STGAP2SICSDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
799 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
