Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

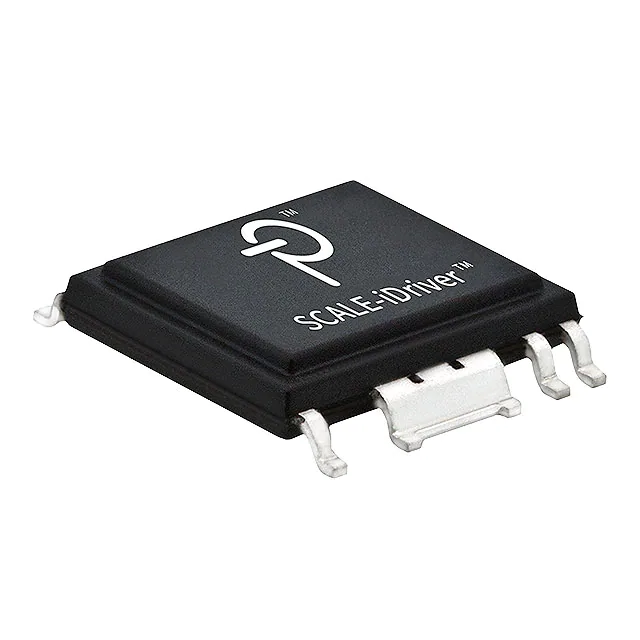

SID1152K-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
895 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 225ns, 225ns (Max) | 2.4A, 2.6A | 5A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
|
SIC1182KQDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
1,804 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 35kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | CSA, UL1577, VDE |
|
|
SIC1182KQ-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
498 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 35kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | CSA, UL1577, VDE |
|
SIC1182KDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
240 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | UL |
|
|
SID1102KDGT ISO 1KV 1CH GT DVR ESOP-R16B Power Integrations |
420 |
|
- |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 1000Vrms | 100kV/µs | 350ns, 350ns | - | 29ns, 14ns | 5A, 5A | - | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | VDE |
|
|
SID1112K-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
990 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 1.125µs, 1.125µs (Max) | 480mA, 520mA | 1A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | VDE |
|
|
SID1112KDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
157 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 1.125µs, 1.125µs (Max) | 480mA, 520mA | 1A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | VDE |
|
|
SID1132KDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
122 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 450ns, 450ns (Max) | 1.2A, 1.3A | 2.5A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
|
|
SIC1181KQ-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
2,990 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 35kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | CSA, UL1577, VDE |
|
|
SID1181KQ-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B Power Integrations |
3,000 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 50kV/µs | 340ns, 330ns | - | 465ns, 460ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | CSA, UL, VDE |
