Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV57091CDWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC onsemi |
988 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
|
NCP51561DBDWR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC onsemi |
910 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 200V/ns | 58ns, 58ns | 5ns | 11ns, 10ns | 9A, 4.5A | 4.5A, 9A | - | - | 18.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, UL, VDE |
|
|
NCP51560BBDWR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC onsemi |
754 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5000Vrms | 200V/ns | 60ns, 60ns | 5ns | 11ns, 10ns | 2.6A, 7A | 4.5A, 9A | - | - | 9.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, UL, VDE |
|
|
NCV51561BBDWR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC onsemi |
920 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5000Vrms | 200V/ns | 58ns, 58ns | 5ns | 11ns, 10ns | 2.6A, 7A | 4.5A, 9A | - | - | 9.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, UL, VDE |
|
NCV57001FDWR2GDGTL ISO 1.2KV 1CH GT DVR 16SOIC onsemi |
825 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 1200Vrms | 100kV/µs | 90ns, 90ns | 15ns | 14ns, 19ns | 7.8A, 7.1A | 6A | - | - | 0V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C (TA) | Surface Mount | 16-SOIC | UL, VDE |
.jpg)
|

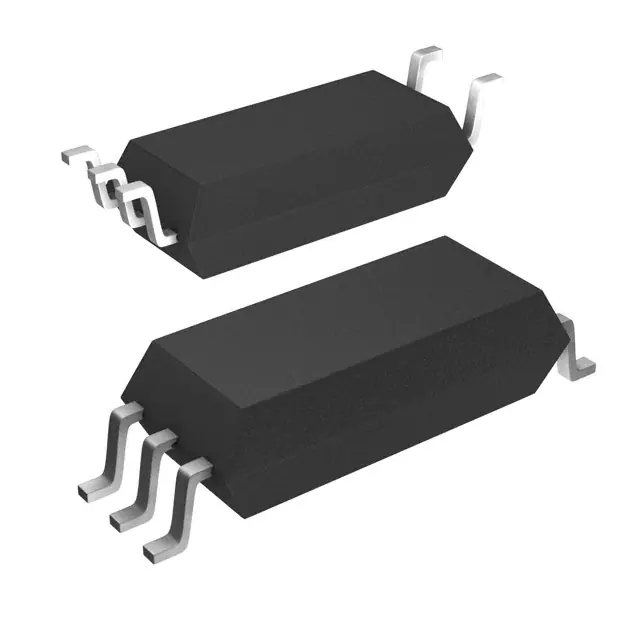

FOD8384VOPTOISO 5KV 1CH GATE DVR 5SOP onsemi |
4,000 |
|
Datasheet |
- | 6-SOIC (0.346", 8.80mm Width), 5 Leads | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 35ns, 25ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP | IEC/EN/DIN, UL |
|
|
FOD8384OPTOISO 5KV 1CH GATE DVR 5SOP onsemi |
1,985 |
|
Datasheet |
- | 6-SOIC (0.346", 8.80mm Width), 5 Leads | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 35ns, 25ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP | UL |
|

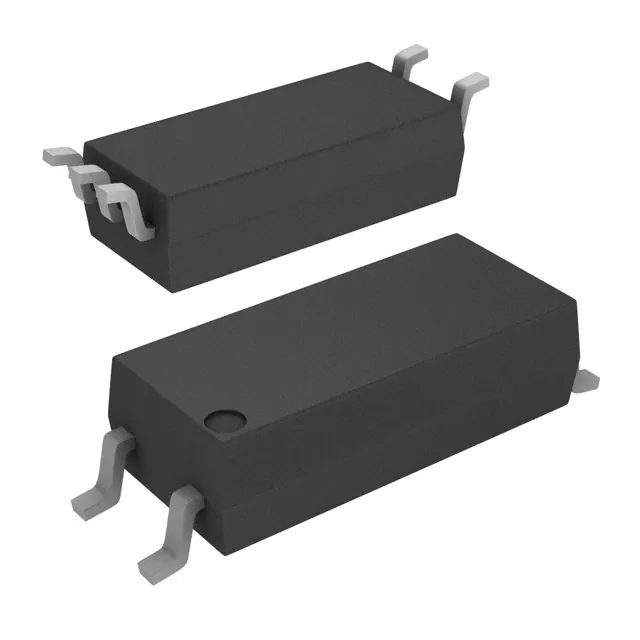

FOD8321OPTOISO 5KV 1CH GATE DVR 5SOP onsemi |
760 |
|
Datasheet |
- | 6-SOIC (0.346", 8.80mm Width), 5 Leads | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 16V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP | UL |
|
|
NCV57530DWKR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC onsemi |
1,000 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width), 14 Leads | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 90ns, 90ns | 20ns | 12ns, 10ns | 6.5A, 6.5A | 6.5A | - | - | 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
|
NCD57530DWKR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC onsemi |
1,000 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width), 14 Leads | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 90ns, 90ns | 20ns | 12ns, 10ns | 6.5A, 6.5A | 6.5A | - | - | 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
