High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9814-03-20RELAY RF SPST-NO 250MA 3.3V |
3,373 |
|
Datasheet |
9800 | Tube | Active | Non Latching | 47.1 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9270-05-00RELAY RF SPST-NO 500MA 5V |
327 |
|
Datasheet |
9270 | Bulk | Active | Non Latching | 50 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.5 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 125°C |
|
9402-12-00RELAY RF SPST-NO 500MA 12V |
1,532 |
|
Datasheet |
9400 | Bulk | Active | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9402-05-20TRRELAY RF SPST-NO 500MA 5V |
3,876 |
|
Datasheet |
9400 | Tape & Reel (TR) | Active | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | J Lead | -20°C ~ 85°C |
|
9814-03-00RELAY RF SPST-NO 250MA 3.3V |
3,526 |
|
Datasheet |
9800 | Tube | Active | Non Latching | 47.1 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
G6K-2F-RF-TR03 DC3RELAY RF DPDT 1A 3V |
2,139 |
|
Datasheet |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
2200-2302RELAY RF SPST-NO 500MA 5V |
4,135 |
|
Datasheet |
2200 | Tube | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VAC, 150VDC - Max | 3.6 VDC | 0.5 VDC | 0.55 ms | 0.1 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|

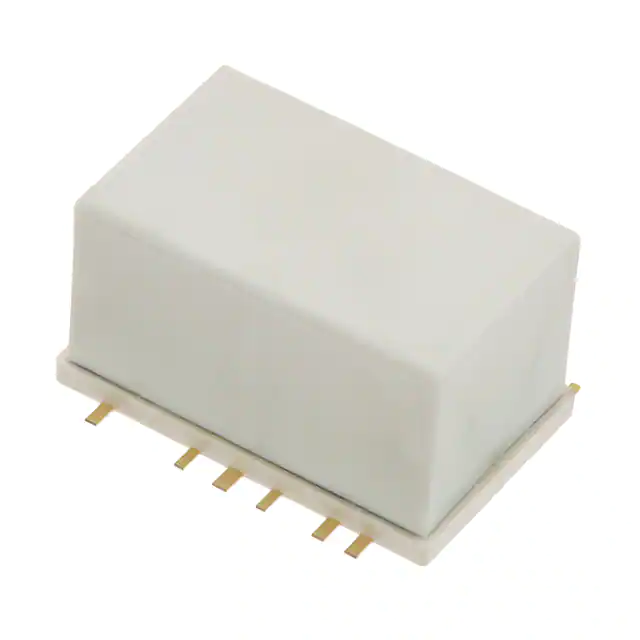

ARS1012RELAY RF SPDT 500MA 12V |
164 |
|
Datasheet |
ARS | Box | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
G6K-2F-RF-S-TR03 DC4.5RELAY RF DPDT 1A 4.5V |
711 |
|
Datasheet |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

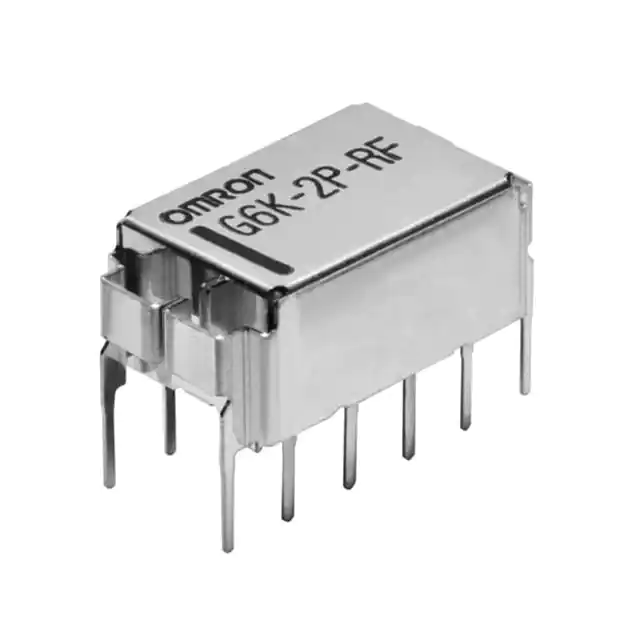

G6K-2P-RF DC4.5RELAY RF DPDT 1A 4.5V |
280 |
|
Datasheet |
G6K-RF | Tube | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARS14Y12RELAY RF SPDT 500MA 12V |
298 |
|
Datasheet |
ARS | Tube | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARS10Y12RELAY RF SPDT 500MA 12V |
1,055 |
|
Datasheet |
ARS | Tube | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
2332-05-020RELAY RF DPST-NO 500MA 5V |
267 |
|
Datasheet |
2300 | Tray | Active | Non Latching | 28.6 mA | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
1462050-4RELAY RF SPDT 2A 12V |
525 |
|
Datasheet |
HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
1462051-4RELAY RF SPDT 2A 12V |
1,308 |
|
Datasheet |
HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
G6K-2F-RF-S DC24RELAY RF DPDT 1A 24V |
647 |
|
Datasheet |
G6K-RF | Tray | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

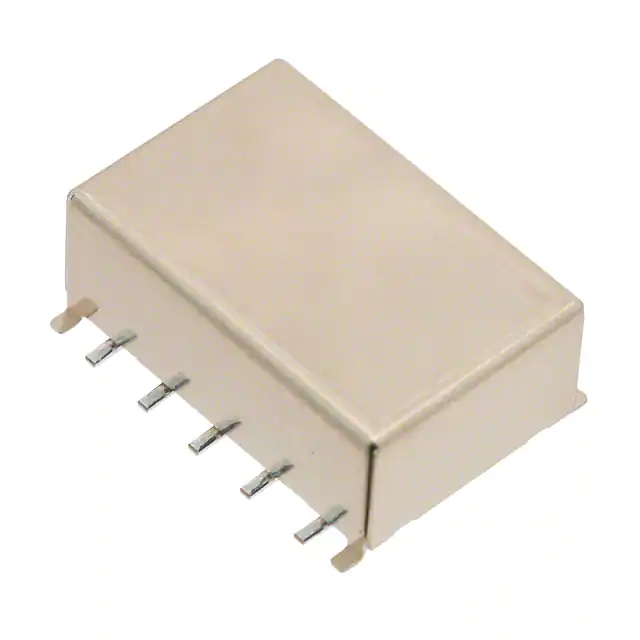

ARA220A12RELAY RF DPDT 1A 12V |
633 |
|
Datasheet |
ARA | Tube | Active | Latching, Dual Coil | 11.7 mA | 12VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 9 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARA220A05RELAY RF DPDT 1A 5V |
1,409 |
|
Datasheet |
ARA | Tube | Active | Latching, Dual Coil | 28.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 3.75 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
G6K-2F-RF-T-TR03 DC4.5RELAY RF DPDT 1A 4.5V |
4,982 |
|
Datasheet |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-TR03 DC4.5RELAY RF DPDT 1A 4.5V |
363 |
|
Datasheet |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
