Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

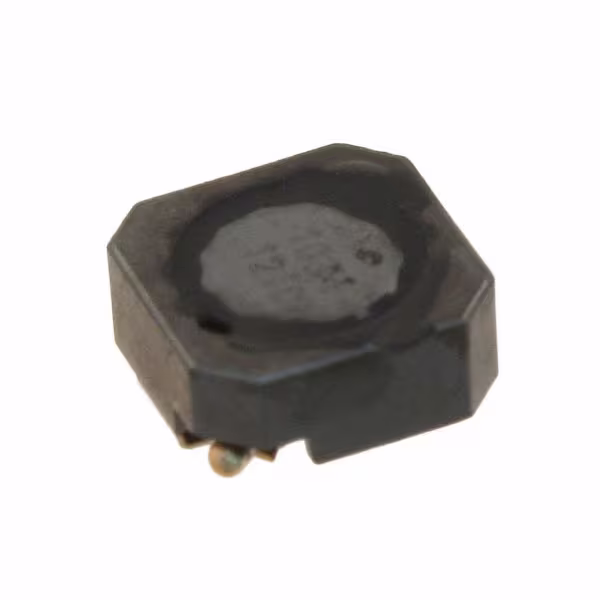

B82472P6104M000FIXED IND 100UH 670MA 390MOHM SM EPCOS - TDK Electronics |
16,096 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 670 mA | 550mA | Shielded | 390mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

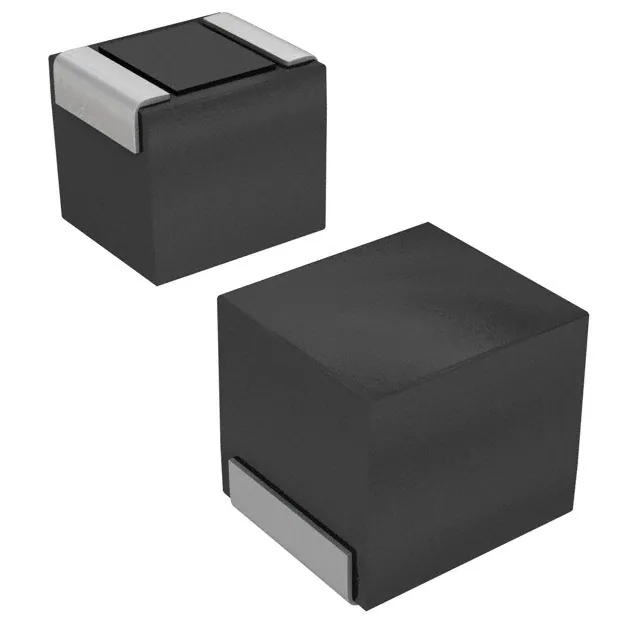

B82442T1103K050FIXED IND 10UH 1.42A 132MOHM SMD EPCOS - TDK Electronics |
1,875 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.42 A | 2.28A | Unshielded | 132mOhm Max | 15 @ 2.52MHz | 19MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82462G4104M000FIXED IND 100UH 530MA 580MOHM SM EPCOS - TDK Electronics |
14,694 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 530 mA | 420mA | Shielded | 580mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4473M000FIXED IND 47UH 750MA 310MOHM SMD EPCOS - TDK Electronics |
15,538 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 750 mA | 600mA | Shielded | 310mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4223M000FIXED IND 22UH 1.05A 150MOHM SMD EPCOS - TDK Electronics |
10,024 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.05 A | 850mA | Shielded | 150mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4224M000FIXED IND 220UH 350MA 1.35OHM SM EPCOS - TDK Electronics |
6,392 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 350 mA | 280mA | Shielded | 1.35Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4682M000FIXED IND 6.8UH 1.65A 50MOHM SMD EPCOS - TDK Electronics |
5,984 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.65 A | 1.5A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4103M000FIXED IND 10UH 1.5A 62 MOHM SMD EPCOS - TDK Electronics |
5,648 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 1.3A | Shielded | 62mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4472M000FIXED IND 4.7UH 2A 40 MOHM SMD EPCOS - TDK Electronics |
2,809 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2 A | 1.8A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4154M000FIXED IND 150UH 380MA 1.05OHM SM EPCOS - TDK Electronics |
502 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 380 mA | 330mA | Shielded | 1.05Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
