Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,00x1,60x,80mm.jpg)
|
CIGW201610GH4R7MLEFIXED IND 4.7UH 1.1A 279MOHM SMD |
197,717 |
|
Datasheet |
CIGW | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 1.1 A | 2A | Shielded | 279mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
-2,70mm.jpg)
|
CBC3225T101MRFIXED IND 100UH 340MA 1.82OHM SM |
79,780 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 340 mA | 270mA | Unshielded | 1.82Ohm Max | - | 6MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
-2,5x2,0x1,00mm.jpg)
|

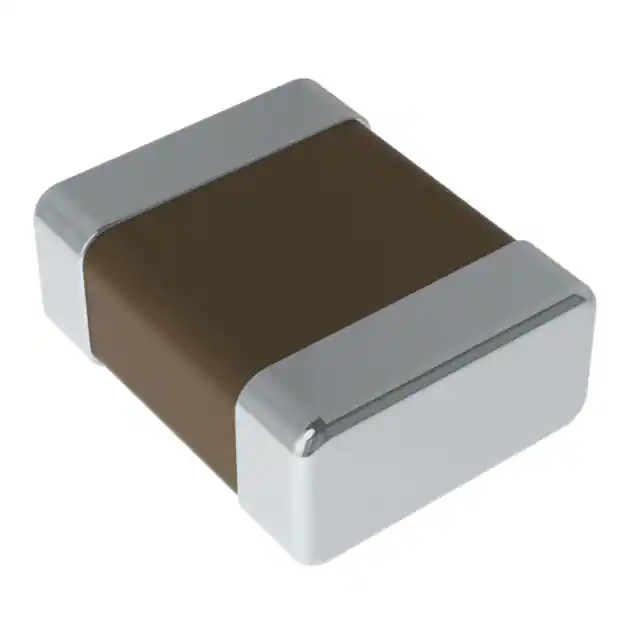

CIGT252010EH1R0MNEFIXED IND 1UH 4.1A 30 MOHM SMD |
54,711 |
|
Datasheet |
CIGT | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 4.1 A | 5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CBC3225T100MRFIXED IND 10UH 900MA 172.9 MOHM |
40,035 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 900mA | Unshielded | 172.9mOhm Max | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
CBC3225T101KRFIXED IND 100UH 340MA 1.82OHM SM |
23,107 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 340 mA | 270mA | Unshielded | 1.82Ohm Max | - | 6MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|

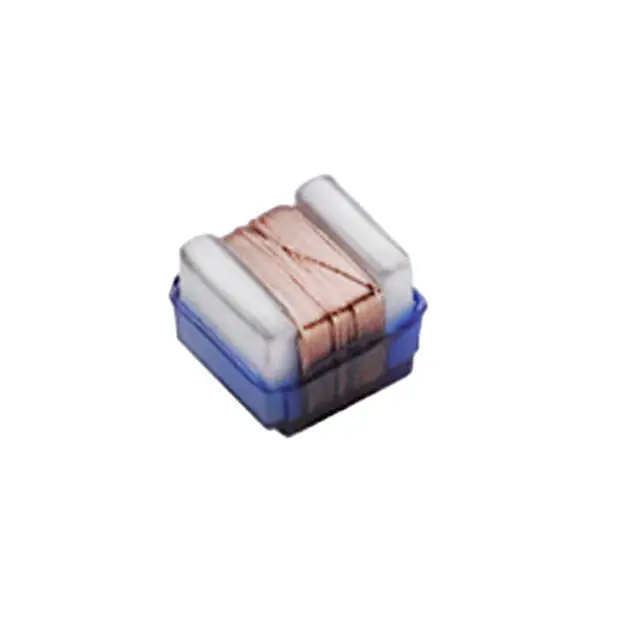

AISC-0603-R047G-TFIXED IND 47NH 400MA 270MOHM SMD |
11,995 |
|
Datasheet |
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 400 mA | - | Unshielded | 270mOhm Max | 36 @ 200MHz | 2.6GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
CBC3225T220KRFIXED IND 22UH 780MA 351MOHM SMD |
3,968 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 780 mA | 620mA | Unshielded | 351mOhm Max | - | 17MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
VLS6045EX-6R8MFIXED IND 6.8UH 3.6A 36 MOHM SMD |
258,984 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.6 A | 4.7A | Shielded | 36mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLS6045EX-3R3NFIXED IND 3.3UH 4.95A 30MOHM SMD |
123,834 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.95 A | 6.5A | Shielded | 23mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
.jpg)
|
LQM18PN2R2MGHDFIXED IND 2.2UH 1.05A 250MOHM SM |
105,510 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.05 A | 250mA | Shielded | 250mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MLF1608DR82JTD25FIXED IND 820NH 70MA 1.4 OHM SMD |
32,671 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±5% | 70 mA | - | Shielded | 1.4Ohm Max | 15 @ 25MHz | 130MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-BR-Series.jpg)
|
BRC2012T2R2MDFIXED IND 2.2UH 1A 143 MOHM SMD |
140,433 |
|
Datasheet |
BR, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.1A | Unshielded | 143mOhm Max | - | 350MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|

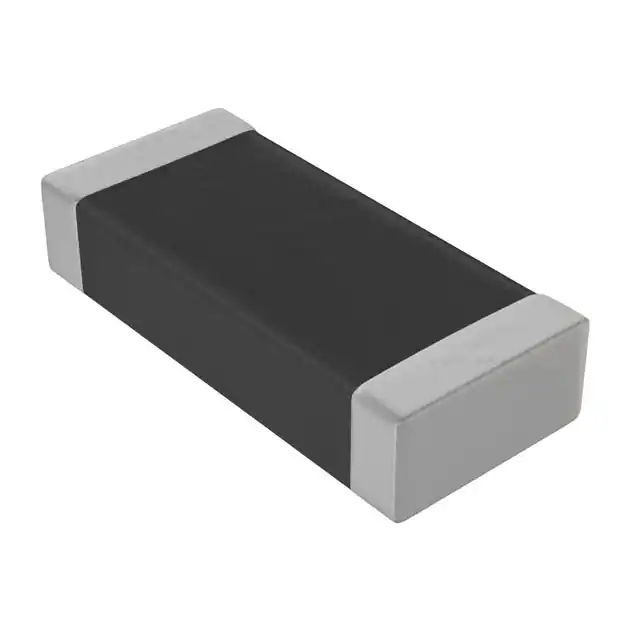

CVH252009-2R2MFIXED IND 2.2UH 1.3A 80 MOHM SMD |
25,830 |
|
Datasheet |
CVH252009 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.3 A | - | Shielded | 80mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
NRS5020T3R3NMGJFIXED IND 3.3UH 2.4A 57.6MOHM SM |
14,270 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.4 A | 2.4A | Shielded | 57.6mOhm Max | - | 46MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
-Height-1.00mm.jpg)
|

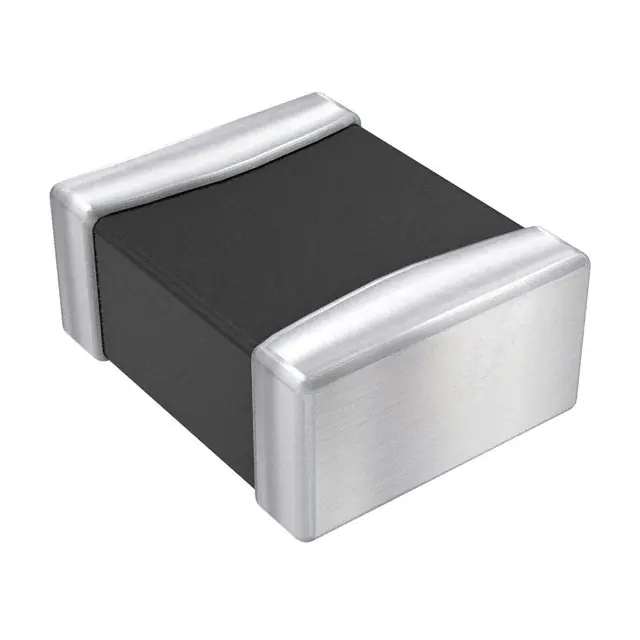

DFE252012P-1R0M=P2FIXED IND 1UH 3.2A 0.042OHM SMD |
226,711 |
|
Datasheet |
DFE252012P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.2 A | 4.3A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
DFE252012P-2R2M=P2FIXED IND 2.2UH 2.2A 0.084OHM SM |
112,584 |
|
Datasheet |
DFE252012P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.2 A | 3A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
DFE252012P-1R5M=P2FIXED IND 1.5UH 2.6A 0.06OHM SMD |
107,613 |
|
Datasheet |
DFE252012P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.6 A | 3.5A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
-Height-1.20mm.jpg)
|

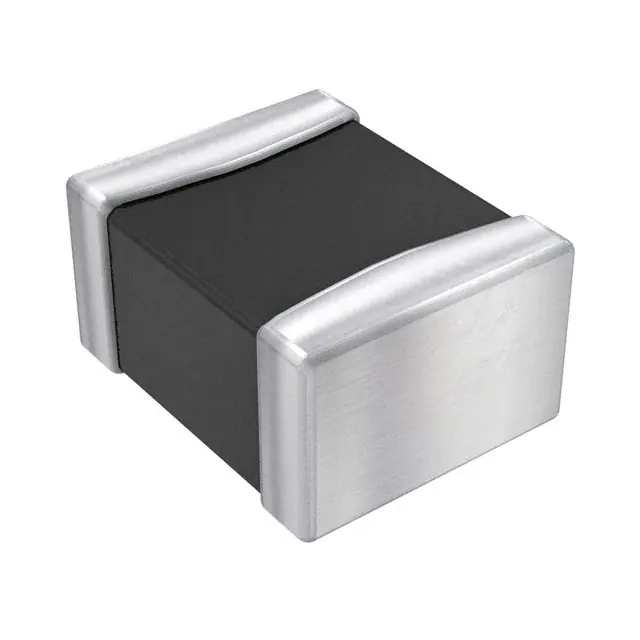

DFE252012P-4R7M=P2FIXED IND 4.7UH 1.4A 0.2OHM SMD |
72,807 |
|
Datasheet |
DFE252012P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.4 A | 2A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
MLP2012H2R2MT0S1FIXED IND 2.2UH 1A 195 MOHM SMD |
30,385 |
|
Datasheet |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1 A | - | Shielded | 195mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
DFE201612P-R47M=P2FIXED IND 470NH 4.8A 33 MOHM SMD |
28,811 |
|
Datasheet |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.8 A | - | Shielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
