Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

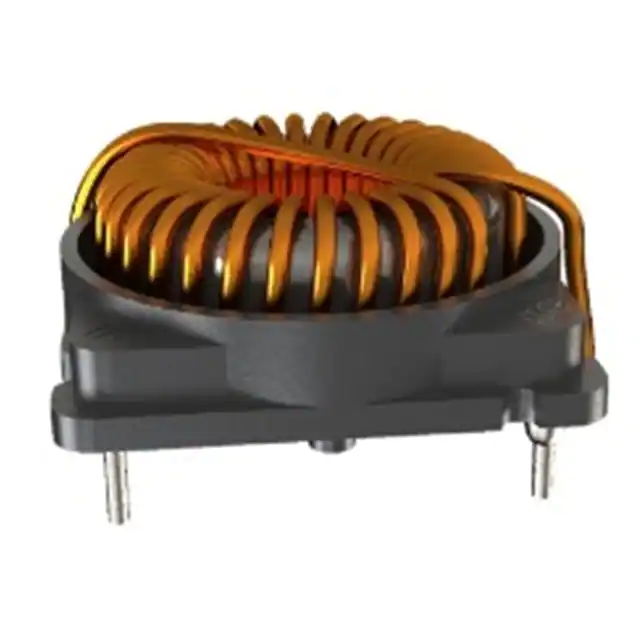

L301314A-251LHF250uH, 112mOhm, 2A Max. Toroida |
24 |
|
Datasheet |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 250 µH | ±15% | 3.6 A | 2A | Unshielded | 112mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.063" L x 1.012" W (27.00mm x 25.70mm) | 0.571" (14.50mm) |
|
CTHFW2918F-6R8MSMD SHLDED POWER INDUCTOR |
17 |
|
Datasheet |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 6.8 µH | ±20% | 28 A | 45A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
|
CTHFW2918F-3R3MSMD SHLDED POWER INDUCTOR |
17 |
|
Datasheet |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 3.3 µH | ±20% | 28 A | 92.5A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
|
CTHFW2918F-100MSMD SHLDED POWER INDUCTOR |
17 |
|
Datasheet |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 10 µH | ±20% | 28 A | 31.2A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
|
CTHFW2918F-150MSMD SHLDED POWER INDUCTOR |
17 |
|
Datasheet |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 15 µH | ±20% | 28 A | 21.2A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
|

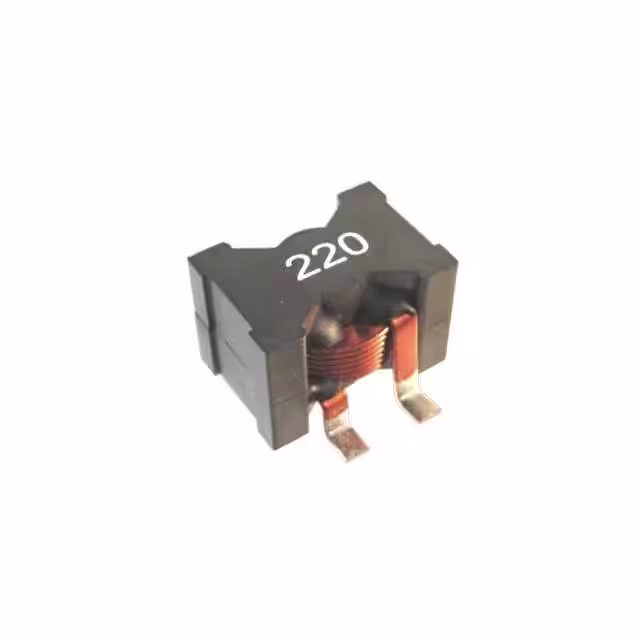

CTHFW2918F-330MSMD SHLDED POWER INDUCTOR |
14 |
|
Datasheet |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 33 µH | ±20% | 28 A | 8.7A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
CTHFW2915F-330MSMD SHLDED POWER INDUCTOR |
14 |
|
Datasheet |
CTHFW2915F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 33 µH | ±20% | 30 A | 2.6A | Shielded | 1.76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
|
CTHFW2915F-4R7MSMD SHLDED POWER INDUCTOR |
14 |
|
Datasheet |
CTHFW2915F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 4.7 µH | ±20% | 30 A | 36.9A | Shielded | 1.76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
|
CTHFW2918F-220MSMD SHLDED POWER INDUCTOR |
13 |
|
Datasheet |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 22 µH | ±20% | 28 A | 14A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
|
CTHFW2915F-100MSMD SHLDED POWER INDUCTOR |
12 |
|
Datasheet |
CTHFW2915F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 10 µH | ±20% | 30 A | 16.2A | Shielded | 1.76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
|
CTHFW2915F-220MSMD SHLDED POWER INDUCTOR |
11 |
|
Datasheet |
CTHFW2915F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 22 µH | ±20% | 30 A | 9A | Shielded | 1.76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
|
CTHFW2915F-1R5MSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTHFW2915F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 1.5 µH | ±20% | 30 A | 100A | Shielded | 1.76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
|
CTHFW2915F-150MSMD SHLDED POWER INDUCTOR |
5 |
|
Datasheet |
CTHFW2915F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 15 µH | ±20% | 30 A | 11A | Shielded | 1.76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
CTSFW1335F-2R2MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW1335F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 14 A | 18A | Shielded | 6.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.154" (3.90mm) |
|
|
CTSFW1335F-1R2MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW1335F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 17 A | 28A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.154" (3.90mm) |
|
CTSFW1350F-100MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW1350F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 8.5 A | 10A | Shielded | 15.51Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.213" (5.40mm) |
|
|
CTSFW1350F-R47MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW1350F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 26 A | 50A | Shielded | 0.99mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.213" (5.40mm) |
|

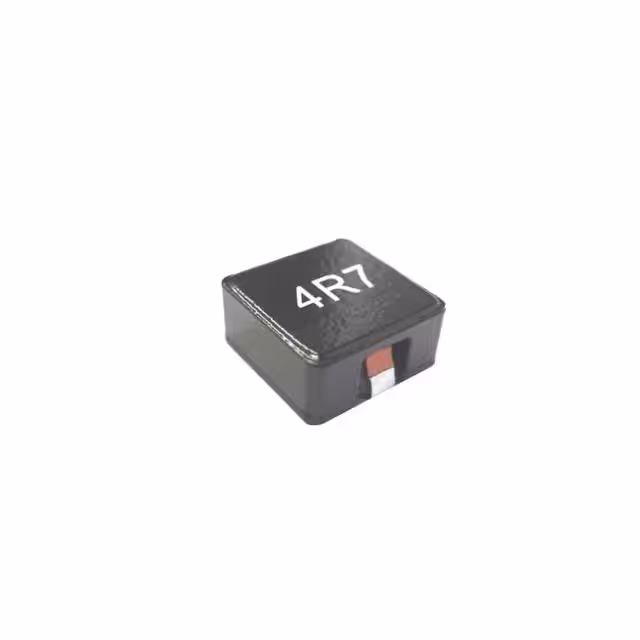

CTSFW1365F-4R7MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW1365F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 13 A | 15A | Shielded | 7.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|

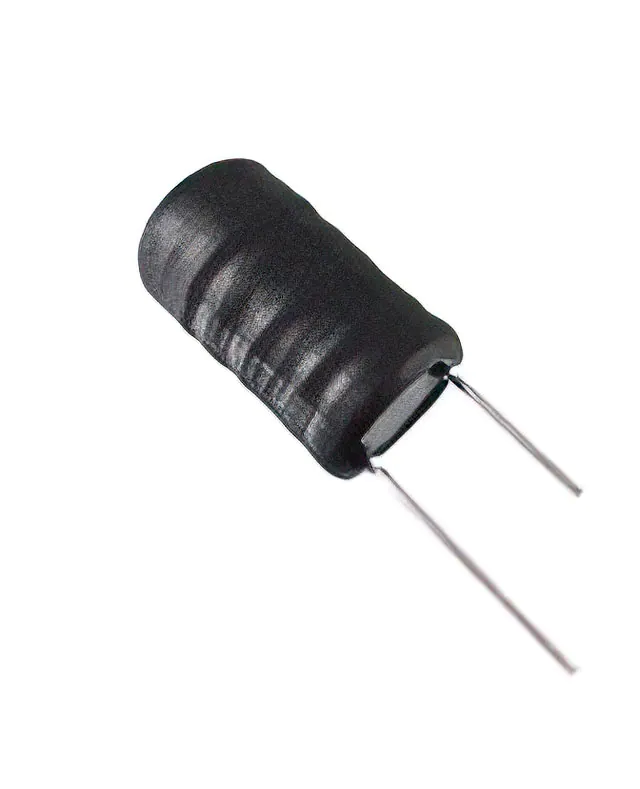

CTRL5480F-4-100K10UH RADIAL FIXED INDUCTOR |
5 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 µH | ±10% | 2.6 A | 8.8A | Unshielded | 31mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
|
CTRL5480F-4-103K100UH RADIAL FXED INDUCTR |
5 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 mH | ±10% | 190 mA | 285mA | Unshielded | 10.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
