Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

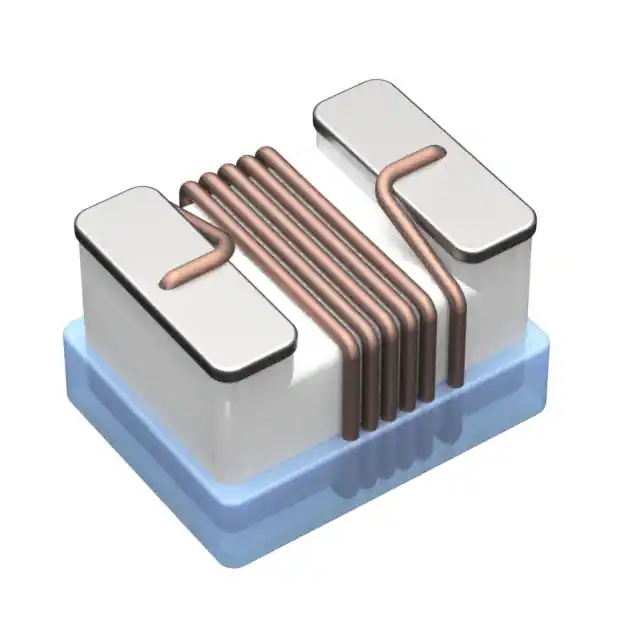

0805CT-470EJTSFIXED IND 47NH 600MA 390MOHM SMD Delta Electronics/Components |
2,316 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 600 mA | - | Unshielded | 390mOhm | 50 @ 500MHz | 2GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|

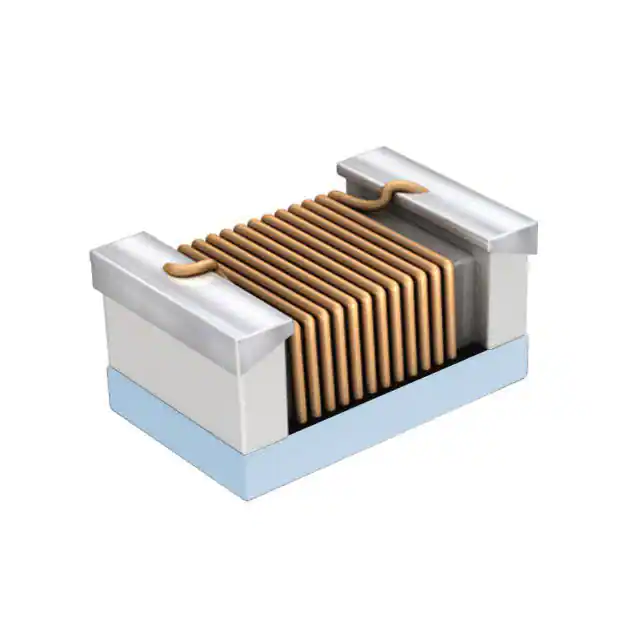

0402HM-150EKTSFIXED IND 15NH 460MA 160MOHM SMD Delta Electronics/Components |
43,153 |
|
Datasheet |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±10% | 460 mA | - | Unshielded | 160mOhm | 30 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0805CT-120EGTSFIXED IND 12NH 800MA 100MOHM SMD Delta Electronics/Components |
9,338 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 800 mA | - | Unshielded | 100mOhm | 55 @ 750MHz | 3.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|
|
0805CT-102EGTSFIXED IND 1UH 170MA 3.5 OHM SMD Delta Electronics/Components |
9,279 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±2% | 170 mA | - | Unshielded | 3.5Ohm | 16 @ 50MHz | 80MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|
|
0805CT-220EGTSFIXED IND 22NH 800MA 150MOHM SMD Delta Electronics/Components |
1,530 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 800 mA | - | Unshielded | 150mOhm | 50 @ 500MHz | 2.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|
0402HP-2N0ECTSFIXED IND 2NH 2.1A 38 MOHM SMD Delta Electronics/Components |
5,927 |
|
Datasheet |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±0.2nH | 2.1 A | - | Unshielded | 38mOhm | - | 15.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HP-1N0EJTSFIXED IND 1NH 2.3A 30 MOHM SMD Delta Electronics/Components |
3,668 |
|
Datasheet |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±5% | 2.3 A | - | Unshielded | 30mOhm | - | 16GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0805CT-1N8EJTSFIXED IND 1.8NH 800MA 30MOHM SMD Delta Electronics/Components |
7,741 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.8 nH | ±5% | 800 mA | - | Unshielded | 30mOhm | 55 @ 1.5GHz | 9.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|
|
0402HP-160EKTSFIXED IND 16NH 850MA 130MOHM SMD Delta Electronics/Components |
7,680 |
|
Datasheet |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±10% | 850 mA | - | Unshielded | 130mOhm | - | 3.7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HP-120EHTSFIXED IND 12NH 1.2A 90 MOHM SMD Delta Electronics/Components |
7,574 |
|
Datasheet |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±3% | 1.2 A | - | Unshielded | 90mOhm | - | 4.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
