Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSAB0420-3R3MSMD MOLDING POWER CHOKE CODACA |
1,603 |
|
Datasheet |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 3.3 A | 4A | Shielded | 87mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
CSAB0420-100MSMD MOLDING POWER CHOKE CODACA |
1,530 |
|
Datasheet |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 1.8 A | 2.2A | Shielded | 282mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

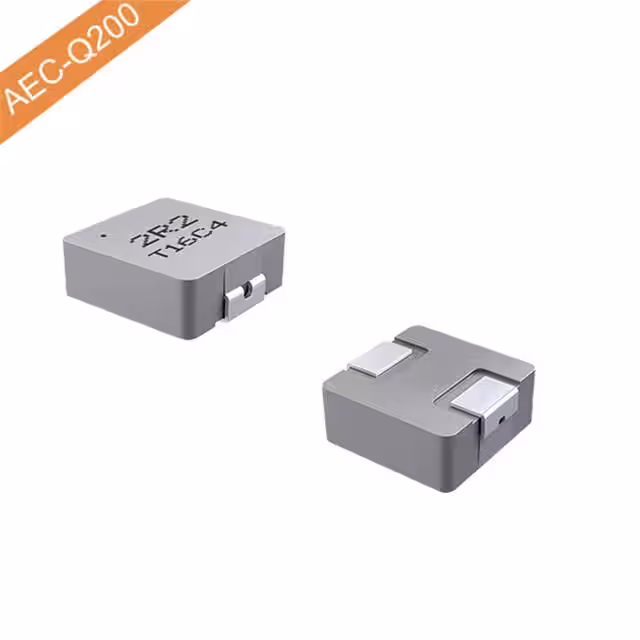

CSAB0730-220MSMD MOLDING POWER CHOKE CODACA |
958 |
|
Datasheet |
CSAB0730 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 2.5 A | 3.5A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|

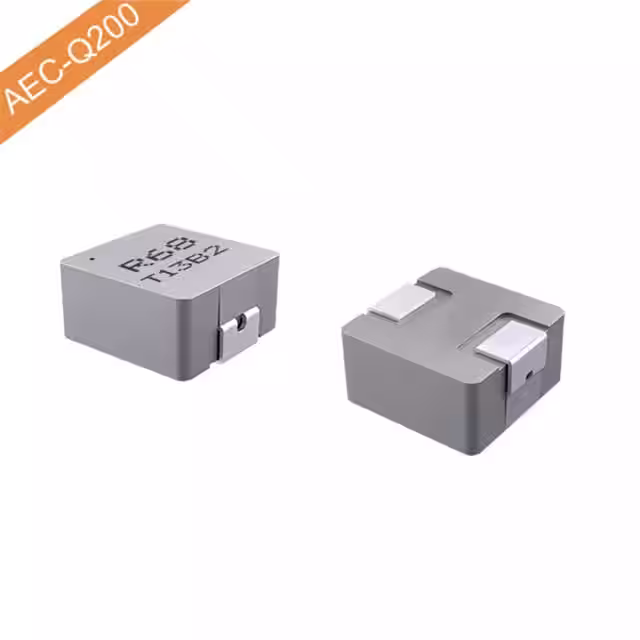

CSAB0740-390MSMD MOLDING POWER CHOKE CODACA |
940 |
|
Datasheet |
CSAB0740 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 39 µH | ±20% | 2.2 A | 2.8A | Shielded | 280mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.157" (4.00mm) |
|
|
CSAB0750-470MSMD MOLDING POWER CHOKE CODACA |
696 |
|
Datasheet |
CSAB0750 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 47 µH | ±20% | 2.4 A | 2.5A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.197" (5.00mm) |
|
CSAB0740-100MSMD MOLDING POWER CHOKE CODACA |
682 |
|
Datasheet |
CSAB0740 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 4.8 A | 6A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.157" (4.00mm) |
|
|
CSAB0750-330MSMD MOLDING POWER CHOKE CODACA |
529 |
|
Datasheet |
CSAB0750 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 33 µH | ±20% | 3 A | 3.3A | Shielded | 204mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.197" (5.00mm) |
|
|
CSAB0740-1R0MSMD MOLDING POWER CHOKE CODACA |
500 |
|
Datasheet |
CSAB0740 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 14.6 A | 18.5A | Shielded | 6.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.157" (4.00mm) |
|
|
CSAB0420-R22MSMD MOLDING POWER CHOKE CODACA |
500 |
|
Datasheet |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.22 µH | ±20% | 11.7 A | 18A | Shielded | 6.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-R68MSMD MOLDING POWER CHOKE CODACA |
350 |
|
Datasheet |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.68 µH | ±20% | 7.6 A | 9A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
