Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPRH1210-681MSMD POWER INDUCTOR CODACA |
180 |
|
Datasheet |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 1.07 A | 1.4A | Shielded | 677mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-470MSMD POWER INDUCTOR CODACA |
179 |
|
Datasheet |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 3.42 A | 5.2A | Shielded | 66.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-220MSMD POWER INDUCTOR CODACA |
162 |
|
Datasheet |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.82 A | 7.5A | Shielded | 33.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-102MSMD POWER INDUCTOR CODACA |
124 |
|
Datasheet |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 830 mA | 1.1A | Shielded | 1.126Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-821MSMD POWER INDUCTOR CODACA |
246 |
|
Datasheet |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 920 mA | 1.25A | Shielded | 927mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-270MSMD POWER INDUCTOR CODACA |
245 |
|
Datasheet |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 4.54 A | 7A | Shielded | 38.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
CSHB0530R-1R0MSMD MOLDING POWER CHOKE CODACA |
200 |
|
Datasheet |
CSHB0530R | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 12.5 A | 14A | Shielded | 12.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.118" (3.00mm) |
|

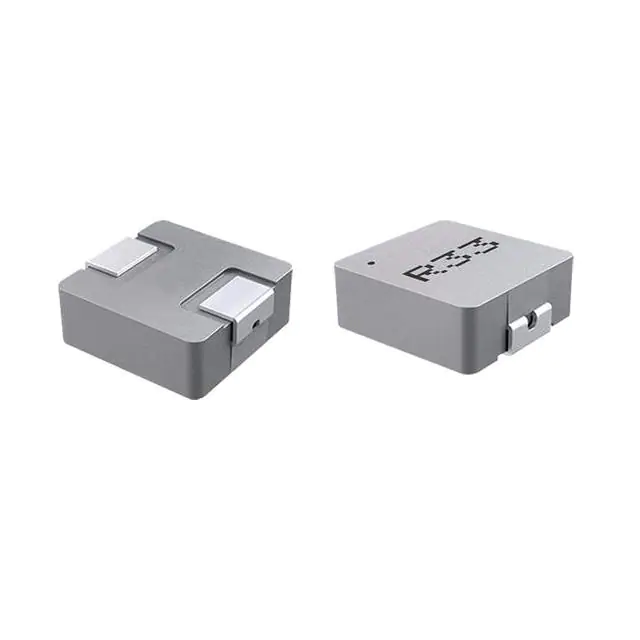

CSHB0421R-220MSMD MOLDING POWER CHOKE CODACA |
7,183 |
|
Datasheet |
CSHB0421R | Nonstandard | Tape & Reel (TR) | Active | Molded | Magnetic Powder | 22 µH | ±20% | 2 A | 2A | Shielded | 320mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0421R-1R5MSMD MOLDING POWER CHOKE CODACA |
6,632 |
|
Datasheet |
CSHB0421R | Nonstandard | Tape & Reel (TR) | Active | Molded | Magnetic Powder | 1.5 µH | ±20% | 7.5 A | 7.5A | Shielded | 21.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|

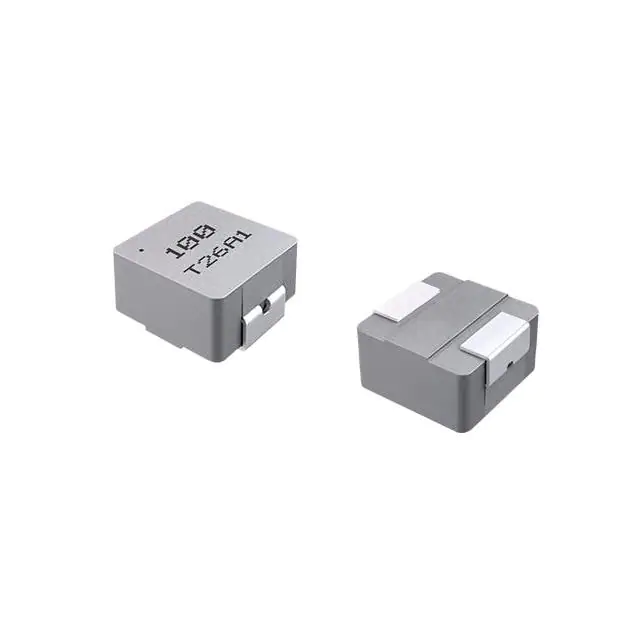

CSHB0430R-2R2MSMD MOLDING POWER CHOKE CODACA |
1,980 |
|
Datasheet |
CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 8.3 A | 7.5A | Shielded | 24.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
