Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPDX1515A-100MCTHT CLASS D IND FOR DIGITAL AMP CODACA |
20 |
|
Datasheet |
CPDX1515A | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | ±20% | 14.7 A | 27.8A | - | Shielded | 9.35mOhm Max | 10 µH | - | - | Through Hole | - | 0.610" L x 0.602" W (15.50mm x 15.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.630" (16.00mm) |
|
|
CSCF2918H-150MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
4,637 |
|
Datasheet |
CSCF2918H | Nonstandard | Active | Wirewound | Ferrite | ±20% | 30 A | 30A | - | Shielded | 2.58mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 1.102" L x 0.776" W (28.00mm x 19.70mm) | Mn-Zn Ferrite Low Loss | -40°C ~ 125°C | 100 kHz | 0.728" (18.50mm) | |
|

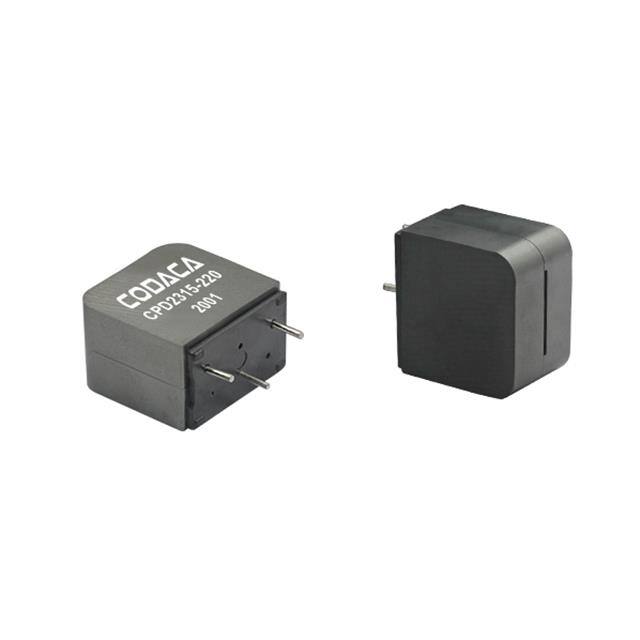

CPD2315-220MTHT CLASS D IND FOR DIGITAL AMP CODACA |
2,821 |
|
Datasheet |
CPD2315 | Nonstandard | Active | Wirewound | Ferrite | ±20% | 13 A | 20.5A | Vertical, 3 PC Pin | Shielded | 8.6mOhm Max | 22 µH | - | - | Through Hole | - | 0.906" L x 0.571" W (23.00mm x 14.50mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 100 kHz | 0.906" (23.00mm) | |
|
|
CPD1717BA-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
22 |
|
Datasheet |
CPD1717BA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | ±20% | 14 A | 14A | Vertical, 4 PC Pin | Shielded | 13mOhm Max | 15 µH | - | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.760" (19.30mm) |
|
|
CPD2320S-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
17 |
|
Datasheet |
CPD2320S | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | ±20% | 9.8 A | 35A | Vertical, 4 PC Pin | Shielded | 14.4mOhm Max | 15 µH | - | - | Through Hole | - | 0.906" L x 0.787" W (23.00mm x 20.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.906" (23.00mm) |
|
|
CPD2320S-100MTHT CLASS D IND FOR DIGITAL AMP CODACA |
15 |
|
Datasheet |
CPD2320S | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | ±20% | 10 A | 40A | Vertical, 4 PC Pin | Shielded | 13.2mOhm Max | 10 µH | - | - | Through Hole | - | 0.906" L x 0.787" W (23.00mm x 20.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.906" (23.00mm) |
|
|
CSEG1060-100MMOLDING POWER CHOKE CODACA |
2,424 |
|
Datasheet |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CSEG1060-6R8MMOLDING POWER CHOKE CODACA |
4,163 |
|
Datasheet |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CSEG1060-8R2MMOLDING POWER CHOKE CODACA |
2,541 |
|
Datasheet |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CSEG1060-1R0MMOLDING POWER CHOKE CODACA |
4,220 |
|
Datasheet |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
