Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN1060-101MFIXED IND 100UH 1.7A 210MOHM SMD Bourns Inc. |
80,759 |
|
Datasheet |
SRN1060 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.7 A | 1.7A | Shielded | 210mOhm Max | 13 @ 2.52MHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SRN1060-151MFIXED IND 150UH 1.25A 300MOHM SM Bourns Inc. |
15,669 |
|
Datasheet |
SRN1060 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.25 A | 1.35A | Shielded | 300mOhm Max | 13 @ 2.52MHz | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.236" (6.00mm) |
|

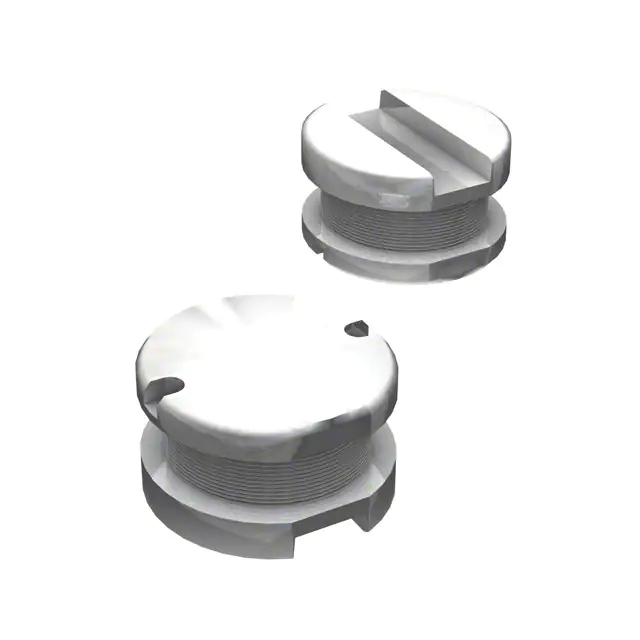

SDR1006-221KLFIXED IND 220UH 660MA 730MOHM SM Bourns Inc. |
68,744 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 660 mA | 1.1A | Unshielded | 730mOhm Max | 12 @ 796kHz | 3.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-101KLFIXED IND 100UH 970MA 350MOHM SM Bourns Inc. |
6,258 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 970 mA | 1.7A | Unshielded | 350mOhm Max | 15 @ 796kHz | 5.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|

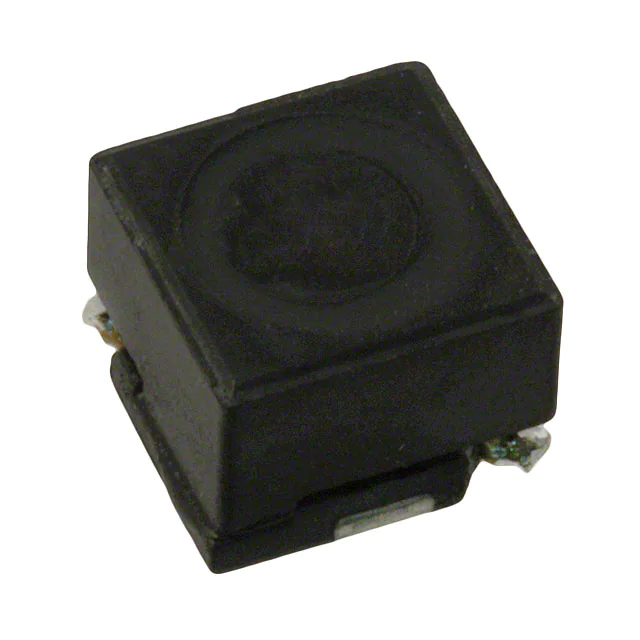

SRR0604-220MLFIXED IND 22UH 900MA 190MOHM SMD Bourns Inc. |
9,595 |
|
Datasheet |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 900 mA | 1.2A | Shielded | 190mOhm Max | 16 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|

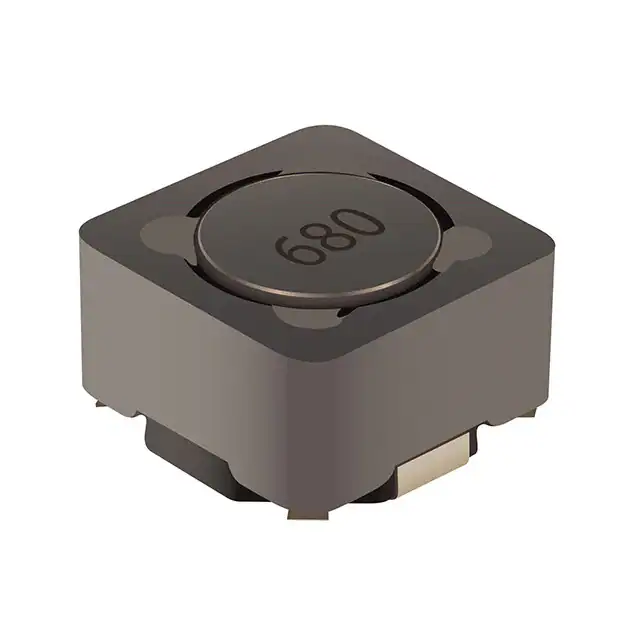

SRR0745A-102MFIXED IND 1MH 200MA 4.1 OHM SMD Bourns Inc. |
84,867 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 200 mA | 240mA | Shielded | 4.1Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRR0745A-330MFIXED IND 33UH 1.35A 150MOHM SMD Bourns Inc. |
2,117 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.35 A | 1.45A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|

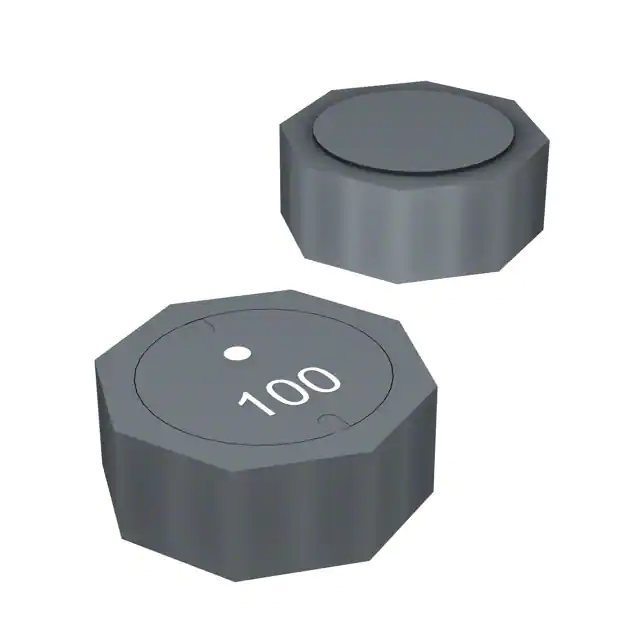

SRU1038-470YFIXED IND 47UH 1.65A 121MOHM SMD Bourns Inc. |
17,492 |
|
Datasheet |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.65 A | 1.6A | Shielded | 121mOhm | 22 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
SRU1048-100YFIXED IND 10UH 4.5A 18.5MOHM SMD Bourns Inc. |
43,202 |
|
Datasheet |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.5 A | 3.7A | Shielded | 18.5mOhm | 26 @ 7.96MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRU1048-150YFIXED IND 15UH 3.2A 29 MOHM SMD Bourns Inc. |
30,570 |
|
Datasheet |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.2 A | 2.7A | Shielded | 29mOhm | 30 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
