Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

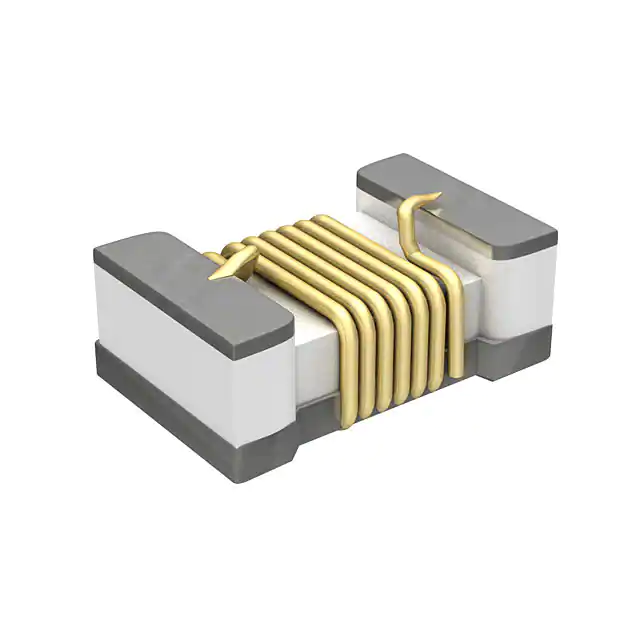

LQW04CAR45K00DFIXED IND 450NH 200MA 1.23OHM SM Murata Electronics |
0 |
|
Datasheet |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 450 nH | ±10% | 200 mA | - | Unshielded | 1.23Ohm Max | - | 850MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR51K00DFIXED IND 510NH 200MA 1.31OHM SM Murata Electronics |
0 |
|
Datasheet |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 510 nH | ±10% | 200 mA | - | Unshielded | 1.31Ohm Max | - | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
#FSLM2520-820J=P2FIXED IND 82UH 65MA 12.5 OHM SMD Murata Electronics |
0 |
|
Datasheet |
LLM2520 | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±5% | 65 mA | - | - | 12.5Ohm Max | 25 @ 2.52MHz | 11MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.067" (1.70mm) |
|
|
FDUE1040D-H-1R0M=P3FIXED IND 1UH 18A 2.515 MOHM SMD Murata Electronics |
0 |
|
- |
FDUE1040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 18 A | 16A | Shielded | 2.515mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.394" W (11.20mm x 10.00mm) | 0.157" (4.00mm) |
|
FDA1254-H-4R7M=P3FIXED IND 4.7UH 10.2A 8.8MOHM SM Murata Electronics |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 10.2 A | 11.2A | Shielded | 8.8mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.496" W (12.90mm x 12.60mm) | 0.213" (5.40mm) |
|
|
FDA1055-H-3R3M=P3FIXED IND 3.3UH 11.2A 7.3MOHM SM Murata Electronics |
0 |
|
- |
FDA1055 | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 11.2 A | 11.7A | Shielded | 7.3mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.425" W (10.80mm x 10.80mm) | 0.217" (5.50mm) |
|

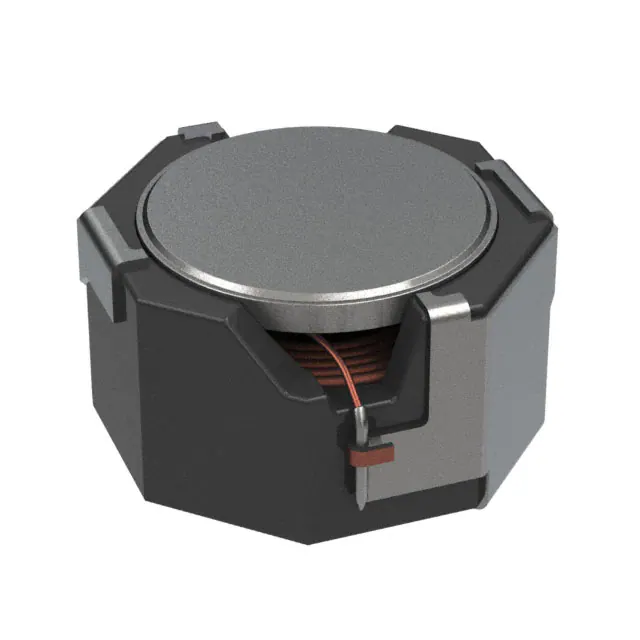

MDH12577C-330MA=P3FIXED IND 33UH 2.7A 39 MOHM SMD Murata Electronics |
0 |
|
- |
MDH12577C | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | 4A | Unshielded | 39mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
FDSD0415-H-1R0M=P3FIXED IND 1UH 4.5A 41 MOHM SMD Murata Electronics |
0 |
|
Datasheet |
FDSD0415 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±20% | 4.5 A | 5.3A | Shielded | 41mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.059" (1.50mm) |
|
FDVE1040-H-3R3M=P3FIXED IND 3.3UH 9A 10.1MOHM SMD Murata Electronics |
0 |
|
- |
FDVE1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 3.3 µH | ±20% | 9 A | 9.8A | Unshielded | 10.1mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.394" W (11.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFE201208S-1R0M=P2FIXED IND 1UH 2.1A 84 MOHM SMD Murata Electronics |
0 |
|
Datasheet |
DFE201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.1 A | 2.7A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
