FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CEN1233 BKCEN1233 IC Central Semiconductor Corp |
0 | - |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CMPDM202PH BKMOSFET P-CH 20V 2.3A SOT23F Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | SOT-23-3 Flat Leads | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 2.5V, 5V | 88mOhm @ 1.2A, 5V | 1.4V @ 250µA | 12 nC @ 5 V | 12V | 800 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23F |
|
|
CMPDM203NH BKMOSFET N-CH 20V 3.2A SOT23F Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | SOT-23-3 Flat Leads | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.2A (Ta) | 2.5V, 4.5V | 50mOhm @ 1.6A, 4.5V | 1.2V @ 250µA | 10 nC @ 4.5 V | 12V | 395 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23F |
|
|
CMPDM302PH BKMOSFET P-CH 30V 2.4A SOT23F Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | SOT-23-3 Flat Leads | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.4A (Ta) | 2.5V, 4.5V | 91mOhm @ 1.2A, 4.5V | 1.4V @ 250µA | 9.6 nC @ 5 V | 12V | 800 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23F |
|
|
CMPDM303NH BKMOSFET N-CH 30V 3.6A SOT23F Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | SOT-23-3 Flat Leads | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 4.5V | 40mOhm @ 1.8A, 4.5V | 1.2V @ 250µA | 13 nC @ 4.5 V | 12V | 590 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23F |
|
|
CTLDM8002A-M621 TRMOSFET P-CH 50V 280MA TLM621 Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | 6-PowerVFDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 5V, 10V | 2.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.72 nC @ 4.5 V | 20V | 70 pF @ 25 V | - | 900mW (Ta) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | TLM621 |
|
|
CTLDM8002A-M621H BKMOSFET P-CH 50V 280MA TLM621H Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 5V, 10V | 2.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.72 nC @ 4.5 V | 20V | 70 pF @ 25 V | - | 1.6W (Ta) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | TLM621H |
|

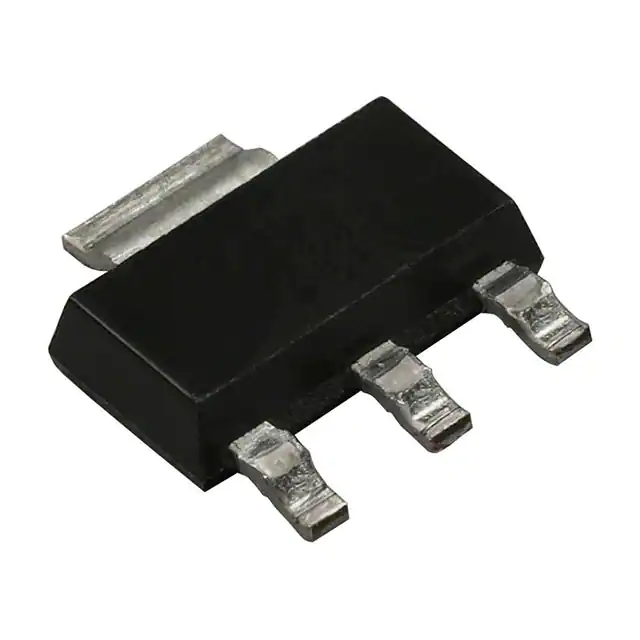

CZDM1003N BKMOSFET N-CH 100V 3A SOT-223 Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | TO-261-4, TO-261AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 3A (Ta) | 10V | 150mOhm @ 2A, 10V | 4V @ 250µA | 15 nC @ 10 V | 20V | 975 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
CP398X-CPDM303NH-CTMOSFET N-CH 30V 3.6A DIE Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | Die | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 4.5V | 78mOhm @ 1.8A, 2.5V | 1.2V @ 250µA | 13 nC @ 4.5 V | 12V | 590 pF @ 10 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
|
CP398X-CPDM303NH-WNMOSFET N-CH 30V 3.6A DIE Central Semiconductor Corp |
0 | - |
|
Datasheet |
- | Die | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 4.5V | 78mOhm @ 1.8A, 2.5V | 1.2V @ 250µA | 13 nC @ 4.5 V | 12V | 590 pF @ 10 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
