FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSD100N10TLMOSFET N-CH 100V 10A CPT3 Rohm Semiconductor |
0 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Ta) | 4V, 10V | 133mOhm @ 5A, 10V | 2.5V @ 1mA | 18 nC @ 10 V | ±20V | 700 pF @ 25 V | - | 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
|
R6004ENDTLMOSFET N-CH 600V 4A CPT3 Rohm Semiconductor |
11 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 980mOhm @ 1.5A, 10V | 4V @ 1mA | 15 nC @ 10 V | ±20V | 250 pF @ 25 V | - | 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
RRS075P03FRATBMOSFET P-CH 30V 7.5A 8SOP Rohm Semiconductor |
0 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4V, 10V | 21mOhm @ 7.5A, 10V | 2.5V @ 1mA | 21 nC @ 5 V | ±20V | 1900 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RRH075P03TB1MOSFET P-CH 30V 7.5A 8SOP Rohm Semiconductor |
0 | - |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4V, 10V | 21mOhm @ 7.5A, 10V | 2.5V @ 1mA | 21 nC @ 5 V | ±20V | 1900 pF @ 10 V | - | 650mW (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RSS090N03FRATBMOSFET N-CH 30V 9A 8SOP Rohm Semiconductor |
0 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4V, 10V | 16mOhm @ 9A, 10V | 2.5V @ 1mA | 15 nC @ 5 V | ±20V | 810 pF @ 10 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

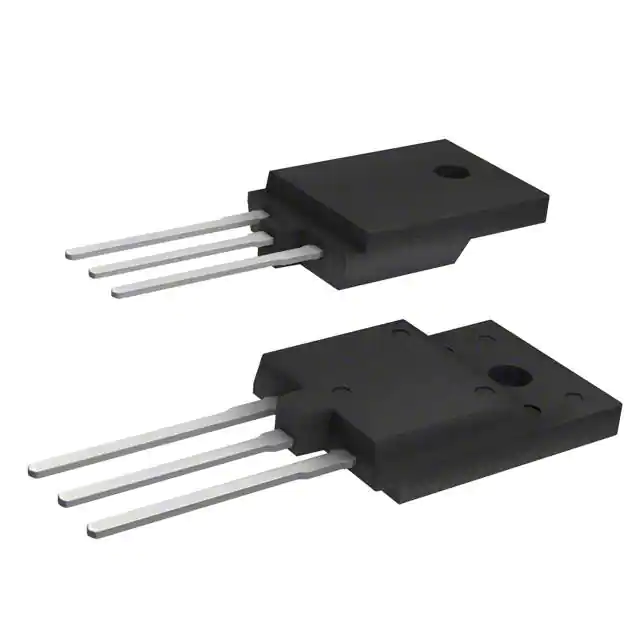

R6030KNZC8MOSFET N-CHANNEL 600V 30A TO3PF Rohm Semiconductor |
0 | - |
|
Datasheet |
- | TO-3P-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 130mOhm @ 14.5A, 10V | 5V @ 1mA | 56 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 86W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
R6012ANXMOSFET N-CH 600V 12A TO220FM Rohm Semiconductor |
0 | - |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Ta) | 10V | 420mOhm @ 6A, 10V | 4.5V @ 1mA | 35 nC @ 10 V | ±30V | 1300 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
|
2SK2887TLMOSFET N-CH 200V 3A CPT3 Rohm Semiconductor |
0 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 200 V | 3A (Ta) | 10V | 900mOhm @ 1.5A, 10V | 4V @ 1mA | 8.5 nC @ 10 V | ±30V | 230 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
RSS075P03TBMOSFET P-CH 30V 7.5A 8SOP Rohm Semiconductor |
0 | - |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4V, 10V | 21mOhm @ 7.5A, 10V | 2.5V @ 1mA | 30 nC @ 5 V | ±20V | 2900 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

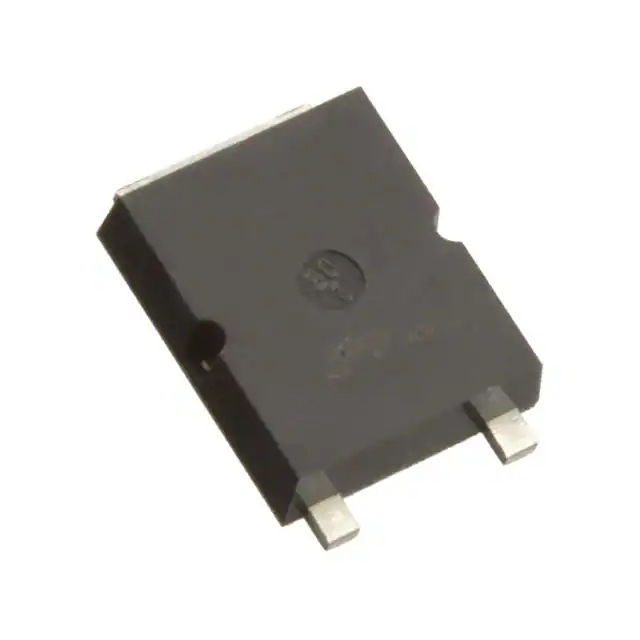

RSY160P05TLMOSFET P-CH 45V 16A TCPT3 Rohm Semiconductor |
11 | - |
|
Datasheet |
- | 3-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 45 V | 16A (Ta) | 4V, 10V | 50mOhm @ 16A, 10V | 2.5V @ 1mA | 25.5 nC @ 5 V | ±20V | 2150 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | TCPT3 |
