FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVTFS027N10MCLTAGPTNG 100V LL U8FL onsemi |
1,700 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.4A (Ta), 28A (Tc) | 4.5V, 10V | 26mOhm @ 7A, 10V | 3V @ 38µA | 11.5 nC @ 10 V | ±20V | 800 pF @ 50 V | - | 3.1W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|

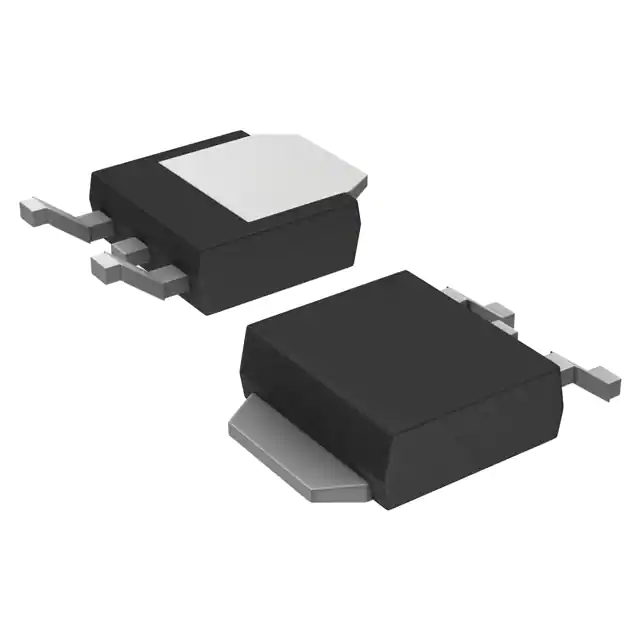

SVD5867NLT4GMOSFET N-CH 60V 22A DPAK-3 onsemi |
4,220 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Tc) | 4.5V, 10V | 39mOhm @ 11A, 10V | 2.5V @ 250µA | 15 nC @ 10 V | ±20V | 675 pF @ 25 V | - | 3.3W (Ta), 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK-3 |
|
NTMFS5C673NT1GMOSFET N-CH 60V 14A/50A 5DFN onsemi |
495 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta), 50A (Tc) | 10V | 10.7mOhm @ 7A, 10V | 4V @ 35µA | 9.6 nC @ 10 V | ±20V | 680 pF @ 30 V | - | 3.6W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
NVTFS6H880NLWFTAGMOSFET N-CH 80V 6.6A/22A 8WDFN onsemi |
1,248 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 6.6A (Ta), 22A (Tc) | 4.5V, 10V | 29mOhm @ 5A, 10V | 2V @ 20µA | 9 nC @ 10 V | ±20V | 431 pF @ 40 V | - | 3.1W (Ta), 33W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
FDMS7694MOSFET N-CH 30V 13.2A/20A 8PQFN onsemi |
2,927 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13.2A (Ta), 20A (Tc) | 4.5V, 10V | 9.5mOhm @ 13.2A, 10V | 3V @ 250µA | 22 nC @ 10 V | ±20V | 1410 pF @ 15 V | - | 2.5W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
|
NTMFS4C025NT1GMOSFET N-CH 30V 20A/69A 5DFN onsemi |
1,969 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta), 69A (Tc) | 4.5V, 10V | 3.41mOhm @ 30A, 10V | 2.1V @ 250µA | 26 nC @ 10 V | ±20V | 1683 pF @ 15 V | - | 2.55W (Ta), 30.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTTFS5C460NLTAGMOSFET N CH 40V 19A/74A 8WDFN onsemi |
2,859 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | - | - | 19A (Ta), 74A (Tc) | - | 4.8mOhm @ 35A, 10V | 2V @ 40µA | - | - | - | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NTMFS6H852NLT1GMOSFET N-CH 80V 11A/42A 5DFN onsemi |
376 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 11A (Ta), 42A (Tc) | 4.5V, 10V | 13.1mOhm @ 10A, 10V | 2V @ 45µA | 17 nC @ 10 V | ±20V | 906 pF @ 40 V | - | 3.6W (Ta), 54W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NVLJWS022N06CLTAGT6 60V LL 2X2 WDFNW6 onsemi |
3,000 |
|
Datasheet |
- | 6-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.2A (Ta), 25A (Tc) | 4.5V, 10V | 21mOhm @ 8A, 10V | 2V @ 77µA | 7.6 nC @ 10 V | ±20V | 440 pF @ 25 V | - | 2.4W (Ta), 28W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 6-WDFNW (2.05x2.05) |
|
|
NVTFS4C25NTAGMOSFET N-CH 30V 10.1A/22.1A 8DFN onsemi |
1,182 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.1A (Ta), 22.1A (Tc) | 4.5V, 10V | 17mOhm @ 10A, 10V | 2.2V @ 250µA | 10.3 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 3W (Ta), 14.3W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
