Electric Actuators/Cylinders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Motor Type | Stroke Length | Load Force (Dynamic) | Load Force (Static) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26DBM10D2U-LSTEPPER MOTOR PM LINEAR ACT 12V |
190 |
|
Datasheet |
26DBM-L | Bulk | Active | Linear Actuator | Stepper, Unipolar | 1.890" (48.00mm) | - | 7.69lbf (34.2N) | - | - | 12VDC | Ball Screw | - | - | - | - | - | Wire Leads | -20°C ~ 70°C | - | - |
|
26DBM10D2U-KSTEPPER MOTOR PM LINEAR ACT 12V |
383 |
|
Datasheet |
26DBM-K | Bulk | Active | Linear Actuator | Stepper, Unipolar | 0.520" (13.20mm) | - | 7.69lbf (34.2N) | - | - | 12VDC | Ball Screw | - | - | - | - | - | Wire Leads | -20°C ~ 70°C | - | - |
|
35DBM10B2U-LSTEPPER MOTOR PM LINEAR ACT 12V |
90 |
|
Datasheet |
35DBM-L | Bulk | Active | Linear Actuator | Stepper, Unipolar | 2.500" (63.50mm) | - | 4.70lbf (20.9N) | - | - | 12VDC | Ball Screw | - | - | - | - | - | Wire Leads | -20°C ~ 70°C | - | - |
|
35DBM10B2U-KSTEPPER MOTOR PM LINEAR ACT 12V |
94 |
|
Datasheet |
35DBM-K | Bulk | Active | Linear Actuator | Stepper, Unipolar | 0.705" (17.90mm) | - | 4.70lbf (20.9N) | - | - | 12VDC | Ball Screw | - | - | - | - | - | Wire Leads | -20°C ~ 70°C | - | - |
|
B58004M4030A020LINEAR ACTUATOR 59UM STRK 160VDC |
64 |
|
Datasheet |
Multilayer Piezo Actuator | Bulk | Active | Linear Actuator | Piezoelectric | 0.0023" (59.00µm) | - | - | - | - | 160VDC | - | - | - | - | - | - | Solder Tab | - | - | - |
|
2595LINEAR ACTUATOR MOTOR 4.8-6V |
112 |
|
Datasheet |
- | Bulk | Active | Linear Actuator | Brushed | - | - | - | - | - | 4.8 ~ 6VDC | Rack and Pinion | - | - | - | 0.66 | - | Wire Leads with Connector | 0°C ~ 55°C | - | - |
|

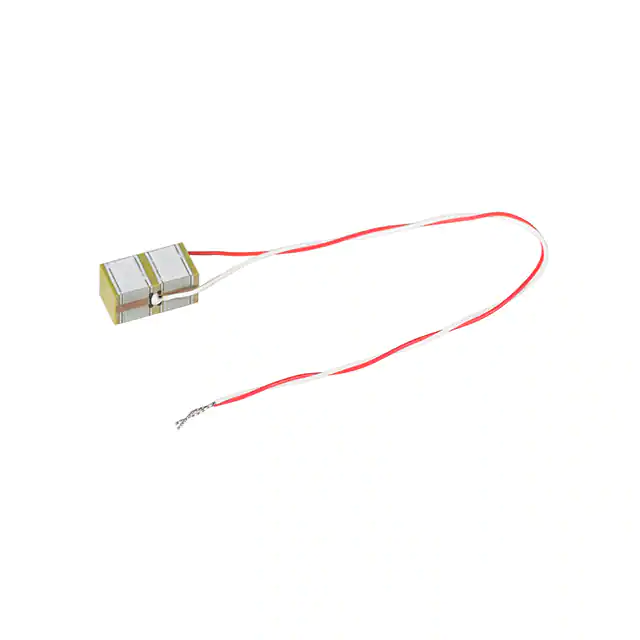

AE0203D04DFSOLENOID PIEZO 4.6UM 150V |
56 |
|
Datasheet |
AE | Bulk | Active | Linear Actuator | Piezoelectric | 0.0002" (4.60µm) | 44.96lbf (200.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
|
Z63000Z2910Z001Z78LINEAR ACTUATOR 15.6UM STRK 160V |
28 |
|
Datasheet |
Multilayer Piezo Actuator | Bulk | Active | Linear Actuator | Piezoelectric | 0.0006" (15.60µm) | - | - | - | - | 160VDC | - | - | - | - | - | - | Solder Tab | -40°C ~ 160°C | - | - |
|
80910002MOTOR DC LINEAR R=12.9.OHM POSIT |
136 |
|
Datasheet |
80910 | Bulk | Active | Linear Actuator | Stepper, Bipolar | 0.394" (10.00mm) | 13.04lbf (58.0N) | 22.48lbf (100.0N) | - | - | 5.6VDC | Ball Screw | - | - | - | - | - | Wire Leads | -5°C ~ 75°C | - | - |
|
|
Z63000Z2910Z001Z77LINEAR ACTUATOR 47UM STRK 160VDC |
40 |
|
Datasheet |
Multilayer Piezo Actuator | Bulk | Active | Linear Actuator | Piezoelectric | 0.0019" (47.00µm) | - | - | - | - | 160VDC | - | - | - | - | - | - | Wire Leads | -40°C ~ 160°C | - | - |
|

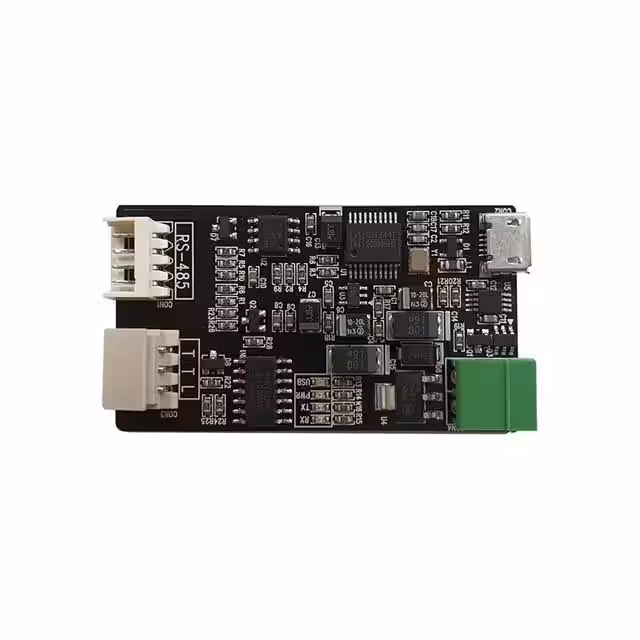

IR-USB02USB PC INTERFACE(TTL/RS-485) |
45 |
|
Datasheet |
- | Retail Package | Active | Linear Actuator | - | - | - | - | - | - | 12VDC | - | - | - | - | - | - | - | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|

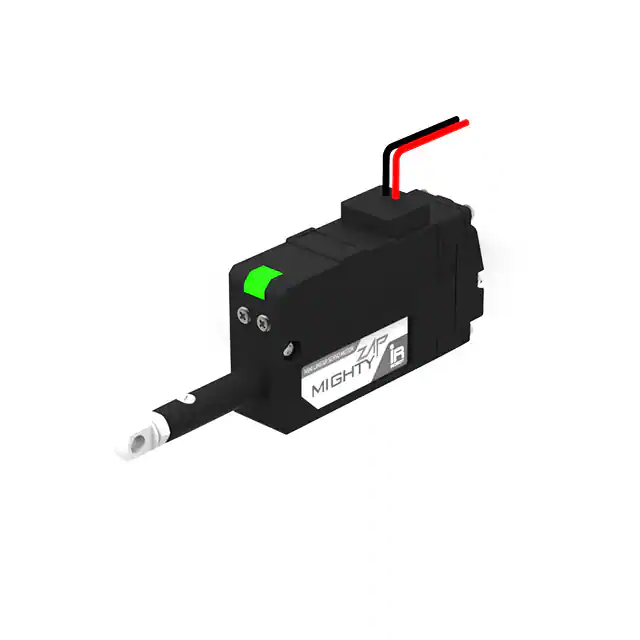

12D-12S-22MICRO LINEAR ACTUATOR LIMIT S/W |
69 |
|
- |
12D (Limit Switch) | Retail Package | Active | Linear Actuator | Brushed | 0.866" (22.00mm) | 2.70lbf (12.0N) | 5.40lbf (24.0N) | 0.39 in/s (10.0 mm/s) | 50% | 12VDC | Lead Screw | ±0.50mm | - | Limit Switches | 10 | - | Wire Leads | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|

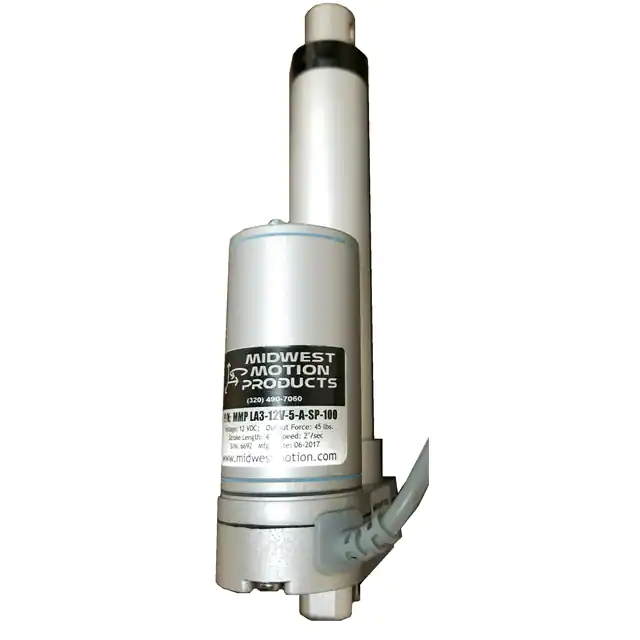

MMP LA3-12V-5-A-SP-100LINEAR ACTUATOR; Fits Generation |
100 |
|
Datasheet |
MMP LA3 | Box | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 44.96lbf (200.0N) | 517.06lbf (2300.0N) | 2.00 in/s (50.8 mm/s) | 25% | 12VDC | ACME Screw | - | - | Limit Switches | 5 | - | Cable Leads | -26°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|

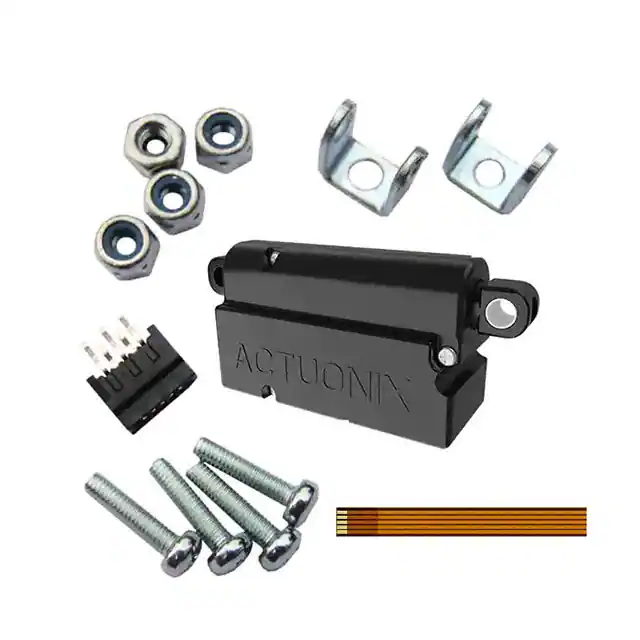

PQ12-30-6-PPQ12-P MICRO LINEAR ACTUATOR |
50 |
|
Datasheet |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 4.05lbf (18.0N) | - | 1.10 in/s (28.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | - | 30 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

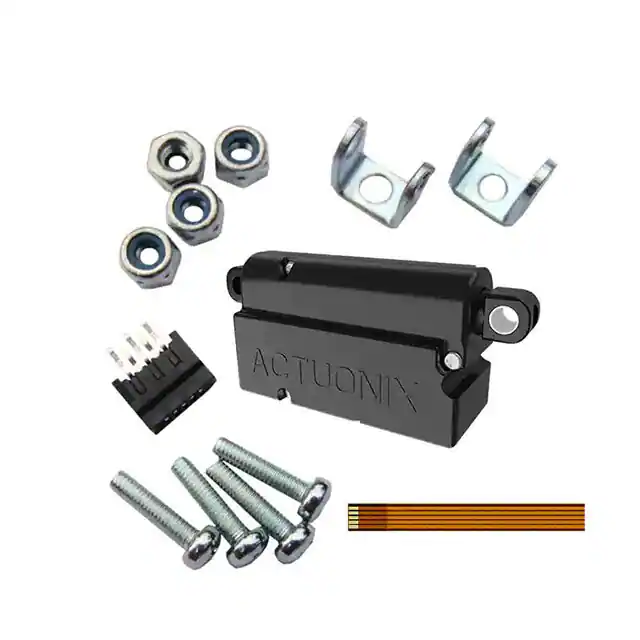

PQ12-63-6-SPQ12-S MICRO LINEAR ACTUATOR |
50 |
|
Datasheet |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 10.12lbf (45.0N) | - | 0.59 in/s (15.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | Limit Switches | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
PQ12-100-6-PPQ12-P MICRO LINEAR ACTUATOR |
50 |
|
Datasheet |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 11.24lbf (50.0N) | - | 0.39 in/s (10.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | - | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
PQ12-63-6-PPQ12-P MICRO LINEAR ACTUATOR |
50 |
|
Datasheet |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 10.12lbf (45.0N) | - | 0.59 in/s (15.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | - | 63 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
PQ12-100-12-SPQ12-S MICRO LINEAR ACTUATOR |
50 |
|
Datasheet |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 11.24lbf (50.0N) | - | 0.39 in/s (10.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | Limit Switches | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
PQ12-30-6-SPQ12-S MICRO LINEAR ACTUATOR |
50 |
|
Datasheet |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 4.05lbf (18.0N) | - | 1.10 in/s (28.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | Limit Switches | 30 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
PQ12-63-12-PPQ12-P MICRO LINEAR ACTUATOR |
50 |
|
Datasheet |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 10.12lbf (45.0N) | - | 0.59 in/s (15.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | - | 63 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
