DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

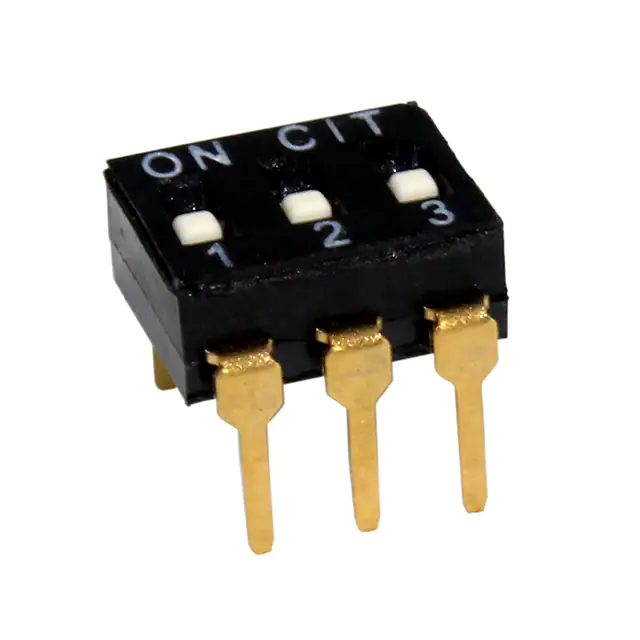

KT03RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
183 |
|
Datasheet |
KT | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KP03ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
605 |
|
Datasheet |
KP | Tube | Active | SPST | 3 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

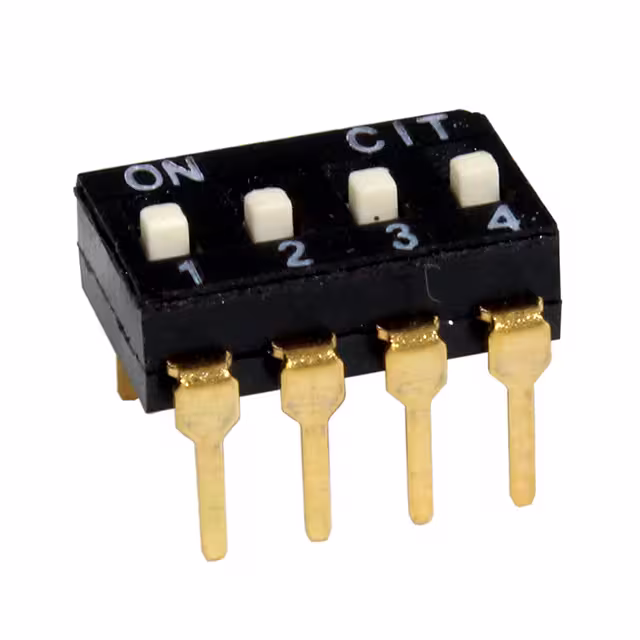

KT04EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
484 |
|
Datasheet |
KT | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

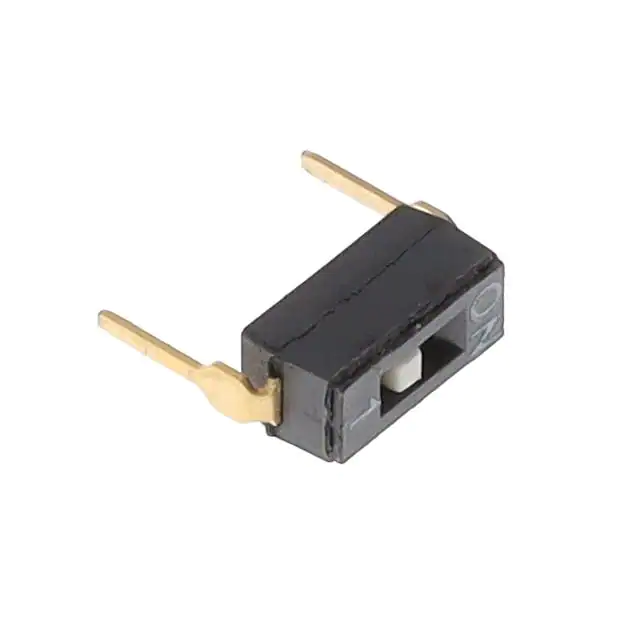

KT01RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
126 |
|
Datasheet |
KT | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR02RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
609 |
|
Datasheet |
KR | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

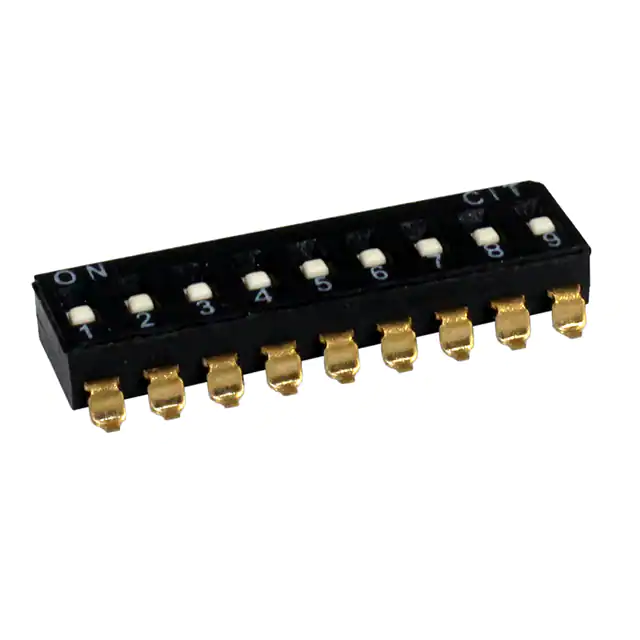

KJ09RTTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
330 |
|
Datasheet |
KJ | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT09EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
301 |
|
Datasheet |
KT | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

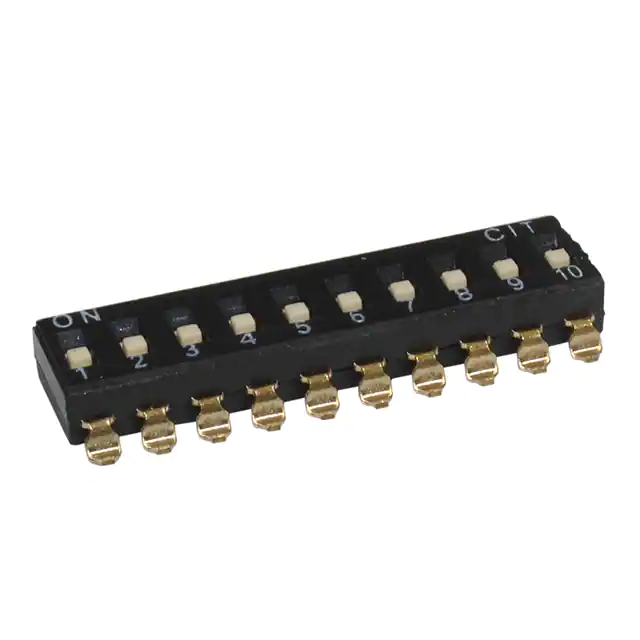

KJ10RTTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
273 |
|
Datasheet |
KJ | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

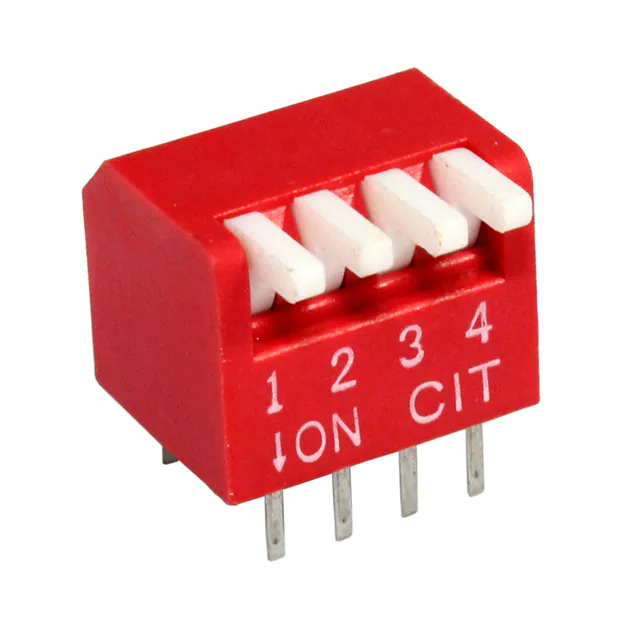

KP04ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
483 |
|
Datasheet |
KP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

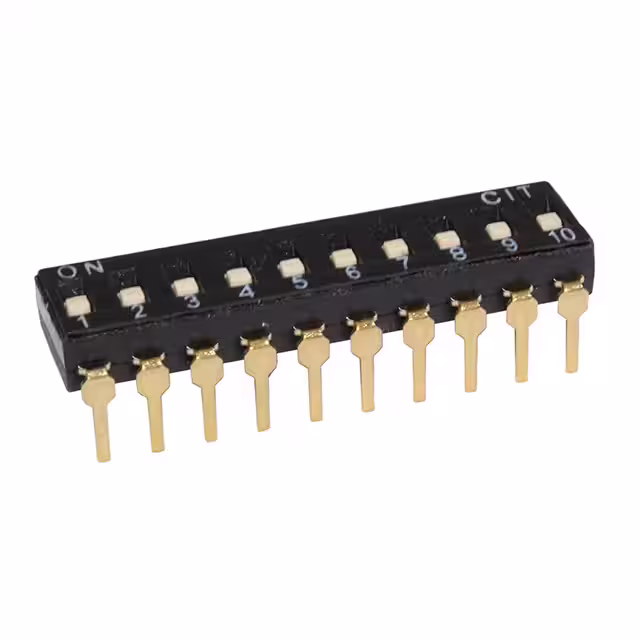

KT10RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
307 |
|
Datasheet |
KT | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
