DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NHDS06TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NHDS | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.062" (1.57mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
NHDS04TVSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NHDS | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.062" (1.57mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
PI06090SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
PI | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -40°C ~ 85°C |
|
|
PI04190SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
PI | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.190" (4.83mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -40°C ~ 85°C |
|
|
MPG304BSW PIANO DIP DPST 0.025A 24V |
0 |
|
Datasheet |
MPG | Tube | Active | DPST-NO/NC | 4 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
MPG304BTSW PIANO DIP DPST 0.025A 24V |
0 |
|
Datasheet |
MPG | Tube | Active | DPST-NO/NC | 4 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -25°C ~ 70°C |
|
|
MPG302BTSWITCH PIANO DIP DPST 25MA 24V |
0 |
|
Datasheet |
MPG | Tube | Active | DPST-NO/NC | 2 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -25°C ~ 70°C |
|
|
MPG301BSW PIANO DIP DPST 0.025A 24V |
0 |
|
Datasheet |
MPG | Tube | Active | DPST-NO/NC | 1 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
DS03TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS05TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS05SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS04TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS04SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS02TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS03SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS02SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Bulk | Obsolete | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS06TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DS | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|

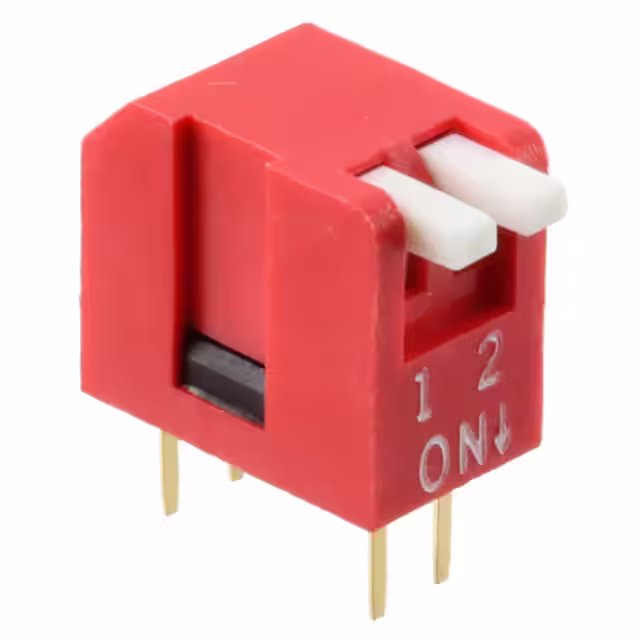

DPL02SWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DPL | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DPL04TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DPL | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL04SWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
DPL | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
