DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

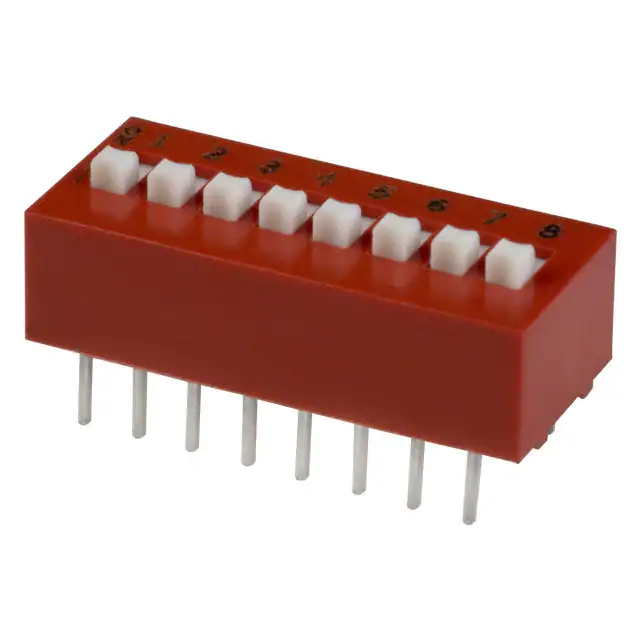

78B08TSWITCH SLIDE DIP SPST 0.15A 30V |
6,986 |
|
Datasheet |
78 | Tube | Active | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

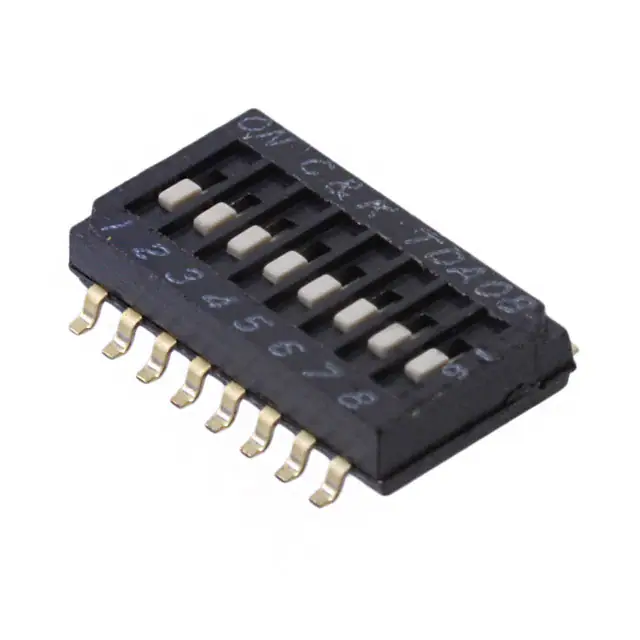

TDA08H0SB1SWITCH SLIDE DIP SPST 0.025A 24V |
85,468 |
|
Datasheet |
TDA | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

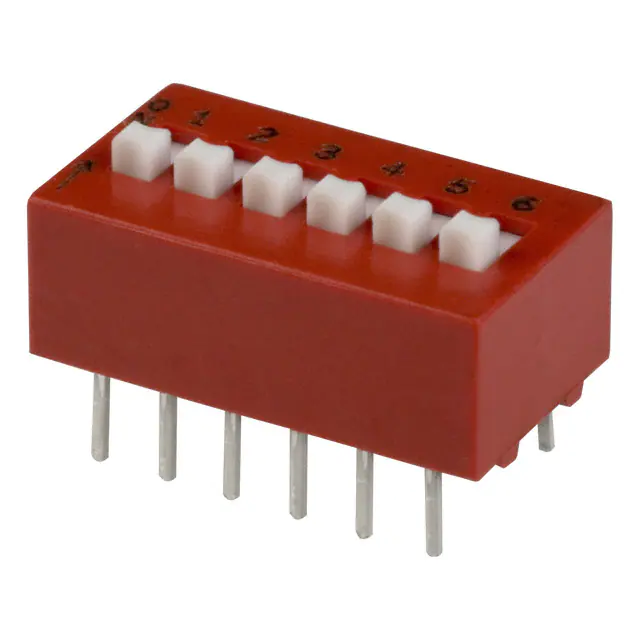

78B06STSWITCH SLIDE DIP SPST 0.15A 30V |
1,283 |
|
Datasheet |
78 | Tube | Active | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6H-8101-PMSWITCH SLIDE DIP SPST 0.025A 24V |
4,911 |
|
Datasheet |
A6H | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|

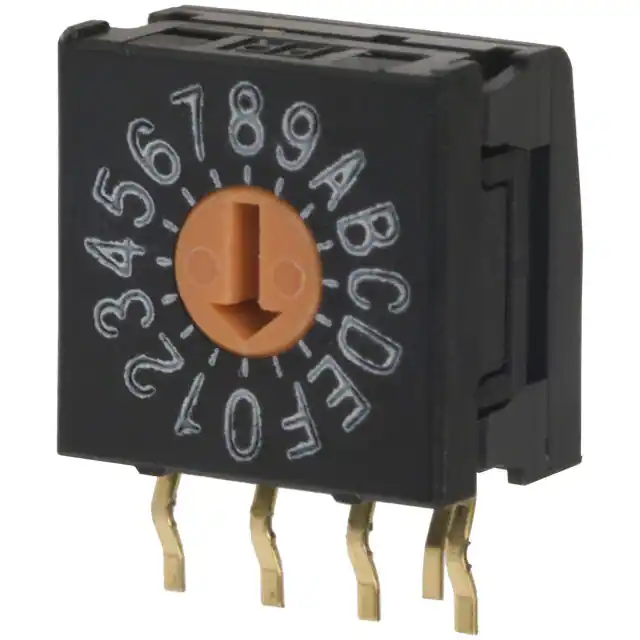

FR01FR16H-SSWITCH ROTARY DIP HEX 0.1A 5V |
13,683 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

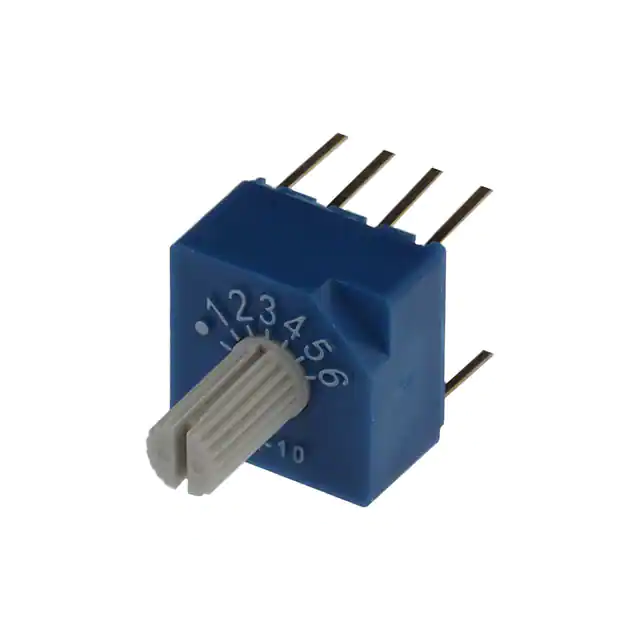

SS-10-16NP-LESWITCH ROTARY DIP SP6T 0.1A 5V |
7,588 |
|
Datasheet |
SS-10 | Bulk | Active | SP6T | 6 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|

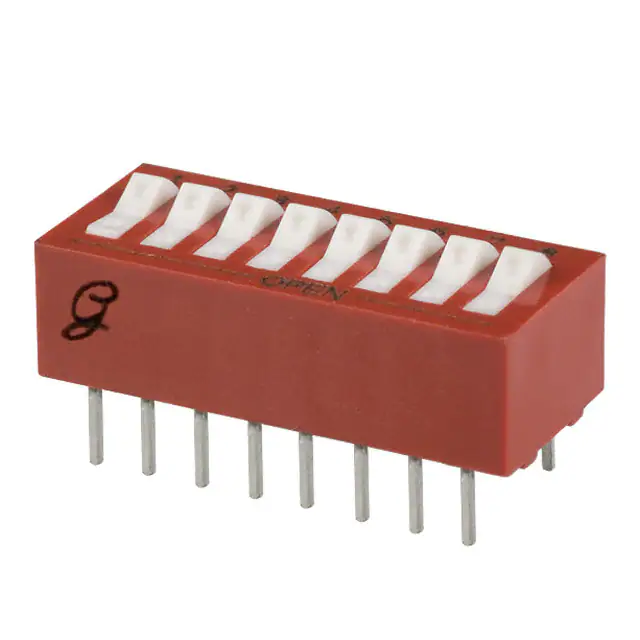

76SB08TSWITCH ROCKER DIP SPST 0.15A 30V |
5,391 |
|
Datasheet |
76 | Tube | Active | SPST | 8 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

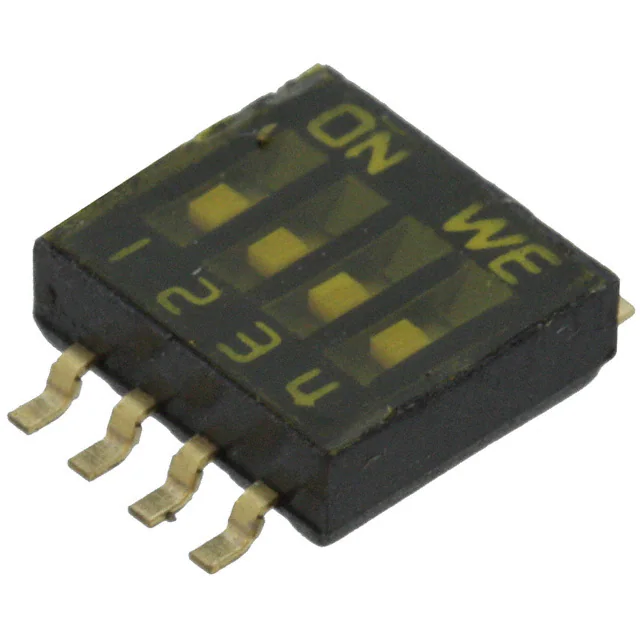

416131160804SWITCH SLIDE DIP SPST 0.025A 24V |
4,855 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

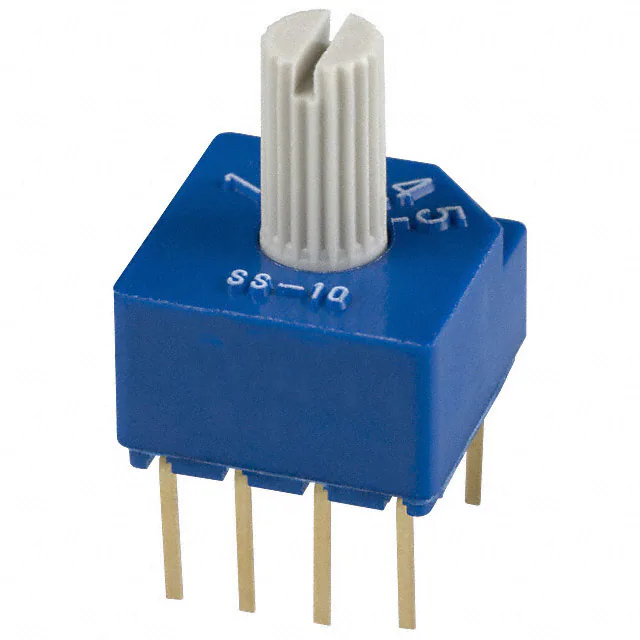

SS-10-15SP-LESWITCH ROTARY DIP SP5T 0.1A 5V |
3,521 |
|
Datasheet |
SS-10 | Bulk | Active | SP5T | 5 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
RDTDR04P1TSWITCH ROTARY DIP BCD 0.15A 42V |
2,204 |
|
Datasheet |
RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Raised | - | Gold | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
78B08STSWITCH SLIDE DIP SPST 0.15A 30V |
1,118 |
|
Datasheet |
78 | Tube | Active | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

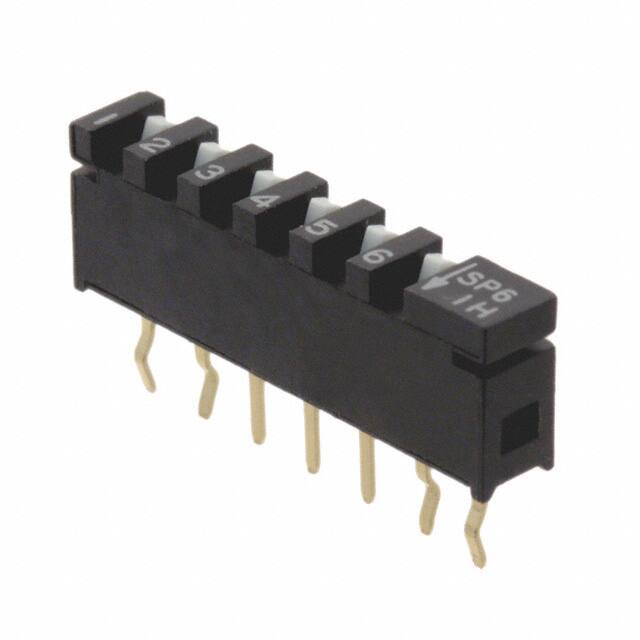

SPA06BSWITCH SLIDE DIP SPST 0.01A 20V |
5,885 |
|
Datasheet |
SPA | Tube | Active | SPST | 6 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 60°C |
|

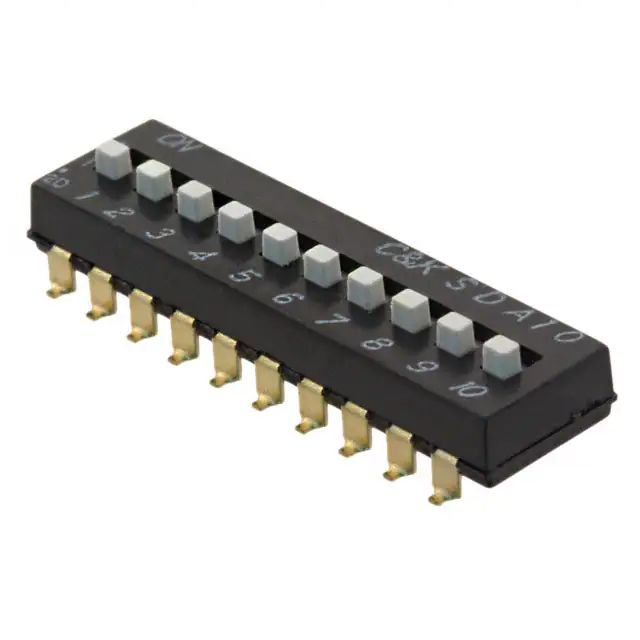

SDA10H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
648 |
|
Datasheet |
SDA | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

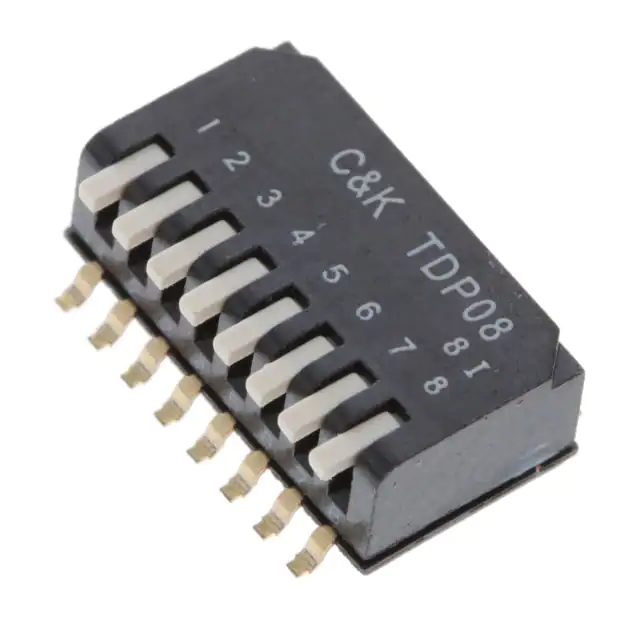

TDP08H1SBD1RSWITCH PIANO DIP SPST 0.025A 24V |
17,868 |
|
Datasheet |
TDP | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
76SB08STSWITCH ROCKER DIP SPST 0.15A 30V |
4,671 |
|
Datasheet |
76 | Tube | Active | SPST | 8 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

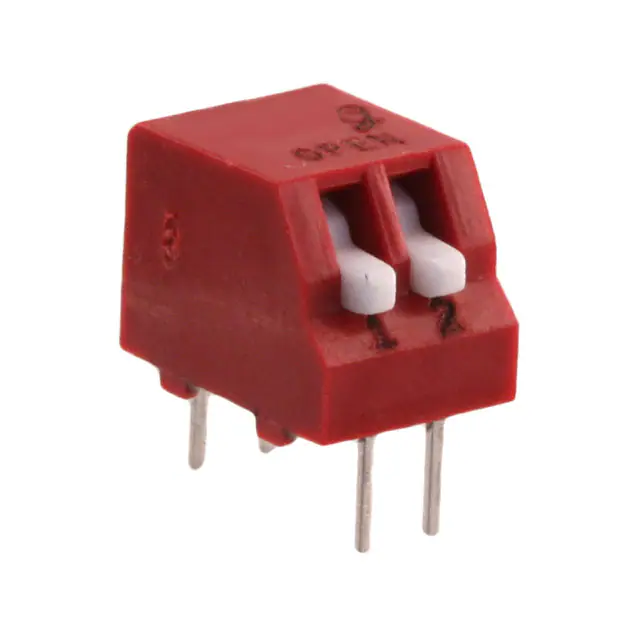

76PSB02STSWITCH PIANO DIP SPST 0.15A 30V |
1,945 |
|
Datasheet |
76 | Tube | Active | SPST | 2 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76PSB04TSWITCH PIANO DIP SPST 0.15A 30V |
7,708 |
|
Datasheet |
76 | Tube | Active | SPST | 4 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RDTAR10P1TSWITCH ROTARY DIP BCD 0.15A 42V |
3,470 |
|
Datasheet |
RDT | Tube | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

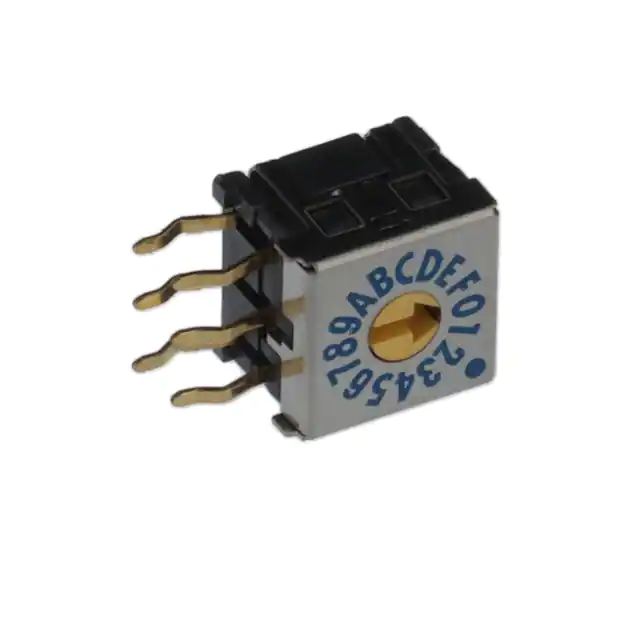

DRR7016CSWITCH ROTARY DIP HEX 0.03A 15V |
9,294 |
|
Datasheet |
DR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
S-8010SWITCH ROTARY DIP OCTAL 0.1A 5V |
1,742 |
|
Datasheet |
S-8000 | Bulk | Active | Octal | 8 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
