DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76SB06STSWITCH ROCKER DIP SPST 0.15A 30V Grayhill Inc. |
2,083 |
|
Datasheet |
76 | Tube | Active | SPST | 6 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

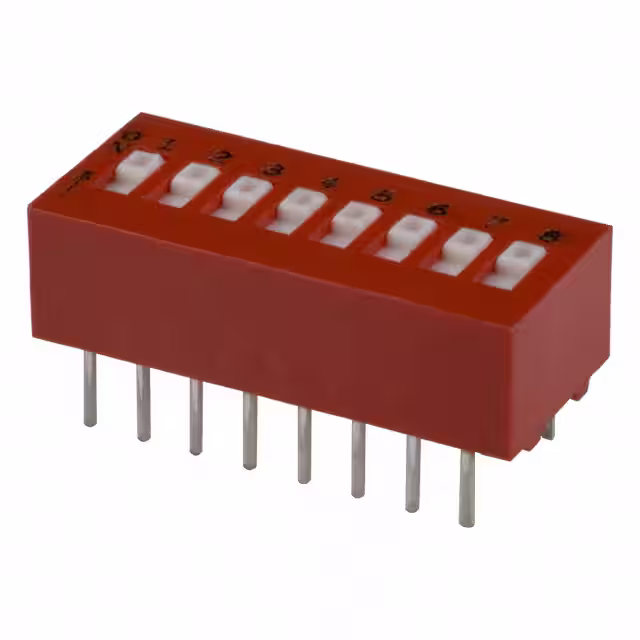

78RB08STSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
4,678 |
|
Datasheet |
78 | Tube | Active | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

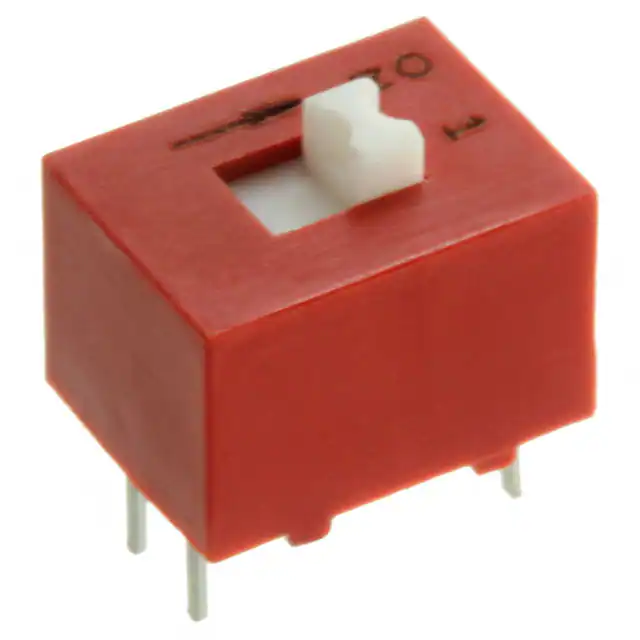

78F01TSWITCH SLIDE DIP DPST 0.15A 30V Grayhill Inc. |
1,257 |
|
Datasheet |
78 | Tube | Active | DPST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

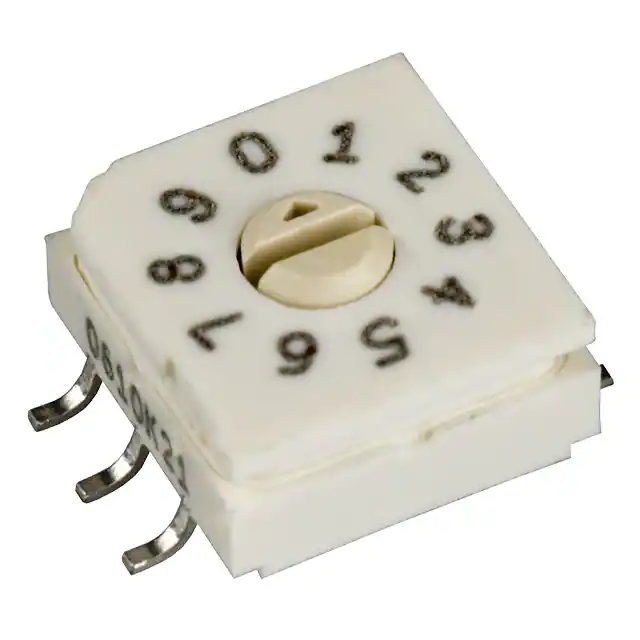

94HAB10WTSWITCH ROTARY DIP BCD 0.1A 50V Grayhill Inc. |
11,510 |
|
Datasheet |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
76PSB05TSWITCH PIANO DIP SPST 0.15A 30V Grayhill Inc. |
3,658 |
|
Datasheet |
76 | Tube | Active | SPST | 5 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

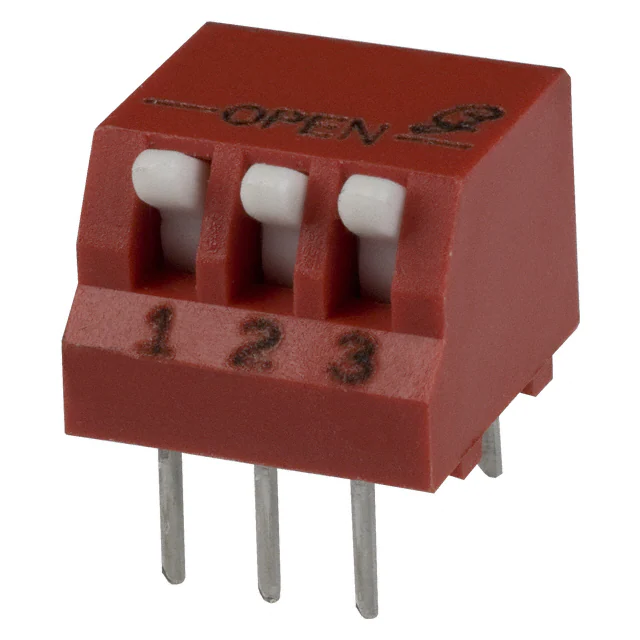

76PSB03STSWITCH PIANO DIP SPST 0.15A 30V Grayhill Inc. |
7,016 |
|
Datasheet |
76 | Tube | Active | SPST | 3 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

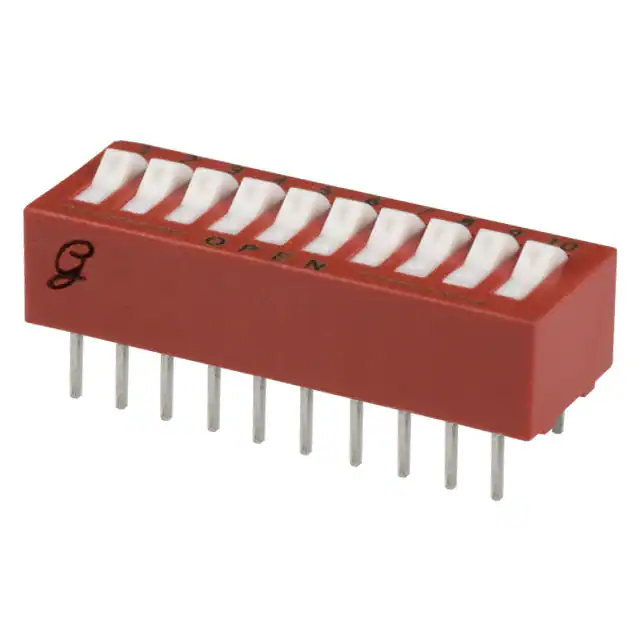

76SB10STSWITCH ROCKER DIP SPST 0.15A 30V Grayhill Inc. |
9,917 |
|
Datasheet |
76 | Tube | Active | SPST | 10 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78F01STSWITCH SLIDE DIP DPST 0.15A 30V Grayhill Inc. |
3,836 |
|
Datasheet |
78 | Tube | Active | DPST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

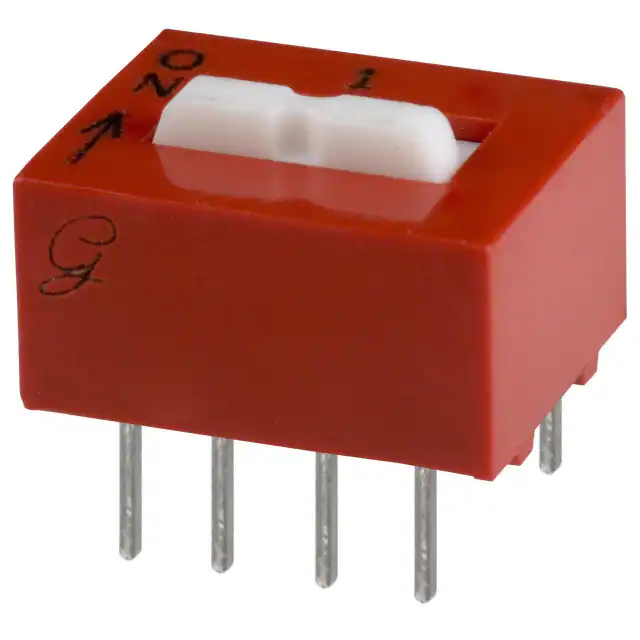

78H01TSWITCH SLIDE DIP 4PST 0.15A 30V Grayhill Inc. |
3,879 |
|
Datasheet |
78 | Tube | Active | 4PST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

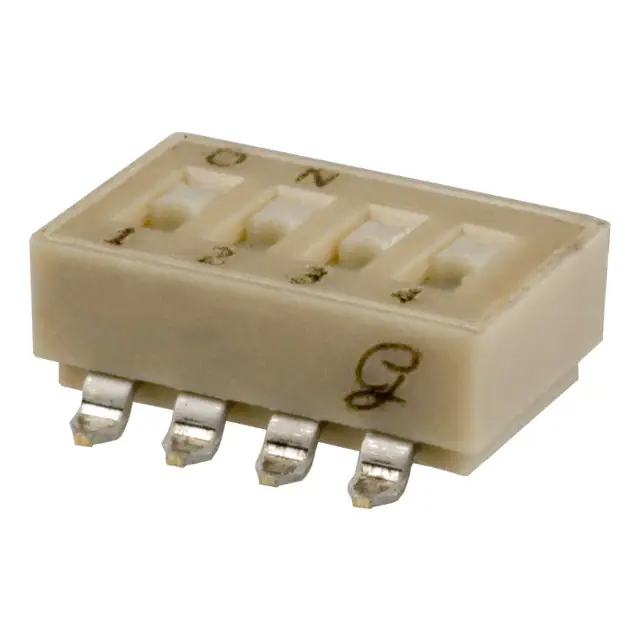

90HBW04PTSWITCH SLIDE DIP SPST 0.025A 24V Grayhill Inc. |
5,166 |
|
Datasheet |
90HB | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
