Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADM2486BRWZDGT ISO 2.5KV RS422/RS485 16SOIC |
3,535 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | No | 3 | 2/1 | Bidirectional | 2500Vrms | 25kV/µs | 20Mbps | 55ns, 55ns | 5ns | 5ns, 5ns | 3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADM2486BRWZ-REELDGT ISO 2.5KV RS422/RS485 16SOIC |
15 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | No | 3 | 2/1 | Bidirectional | 2500Vrms | 25kV/µs | 20Mbps | 55ns, 55ns | 5ns | 5ns, 5ns | 3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADUM3160BRWZ-RLDGT ISOL 2500VRMS 2CH USB 16SOIC |
20,233 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | USB | No | 1 | 1/1 | Bidirectional | 2500Vrms | 25kV/µs | 12Mbps | 70ns, 70ns | - | 20ns, 20ns (Max) | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3160BRWZDGT ISOL 2500VRMS 2CH USB 16SOIC |
3,242 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | USB | No | 1 | 1/1 | Bidirectional | 2500Vrms | 25kV/µs | 12Mbps | 70ns, 70ns | - | 20ns, 20ns (Max) | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ISOW7741FQDFMRQ1AUTOMOTIVE, LOW-EMISSIONS, QUAD- |
847 |
|
Datasheet |
ISOW774x-Q1 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 15.7ns, 15.7ns | 5ns | 2.5ns, 2.4ns | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|

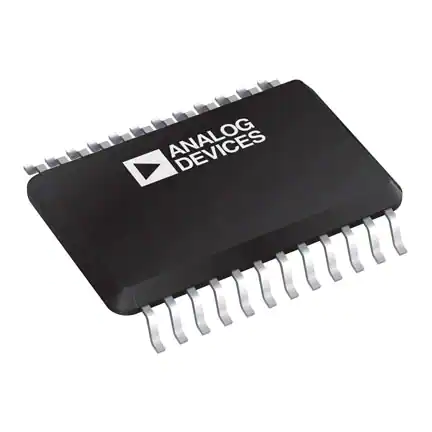

ADUM5411BRSZDGTL ISO 2500VRMS 4CH GP 24SSOP |
435 |
|
Datasheet |
iCoupler® | 24-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 2500Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 24-SSOP |
|
|
ADM3260ARSZDGT ISOL 2500VRMS 2CH I2C 20SSOP |
5,137 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | I2C | Yes | 2 | 2/2 | Bidirectional | 2500Vrms | 25kV/µs | - | - | 145ns, 85ns | - | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
IL 261-3EDGTL ISO 2500VRMS 5CH GP 16SOIC |
2,414 |
|
Datasheet |
IsoLoop®, IL261 | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 5 | 4/1 | Unidirectional | 2500Vrms | 30kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADUM2400CRWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,261 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
.jpg)
|
IL 260-1EDGTL ISO 2500VRMS 5CH GP 16QSOP |
1,265 |
|
Datasheet |
IsoLoop®, IL260 | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 5 | 5/0 | Unidirectional | 2500Vrms | 30kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-QSOP |
|
|
IL 262-3EDGTL ISO 2500VRMS 5CH GP 16SOIC |
1,128 |
|
Datasheet |
IsoLoop®, IL262 | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 5 | 3/2 | Unidirectional | 2500Vrms | 30kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
IL 260-3EDGTL ISO 2500VRMS 5CH GP 16SOIC |
941 |
|
Datasheet |
IsoLoop®, IL260 | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 5 | 5/0 | Unidirectional | 2500Vrms | 30kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADUM2400CRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
414 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADM3260ARSZ-RL7DGT ISOL 2500VRMS 2CH I2C 20SSOP |
237 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | I2C | Yes | 2 | 2/2 | Bidirectional | 2500Vrms | 25kV/µs | - | - | 145ns, 85ns | - | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
ADUM4151ARIZDGT ISOL 5000VRMS 7CH SPI 20SOIC |
844 |
|
Datasheet |
iCoupler®, SPIsolator™ | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | SPI | No | 7 | 5/2 | Unidirectional | 5000Vrms | 25kV/µs | 2Mbps | 25ns, 25ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC-IC |
|
MAX14945EWE+DGTL ISO 2.75KV RS422/485 16SOIC |
374 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2750Vrms | 35kV/µs (Typ) | 500kbps | - | - | - | 1.71V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|

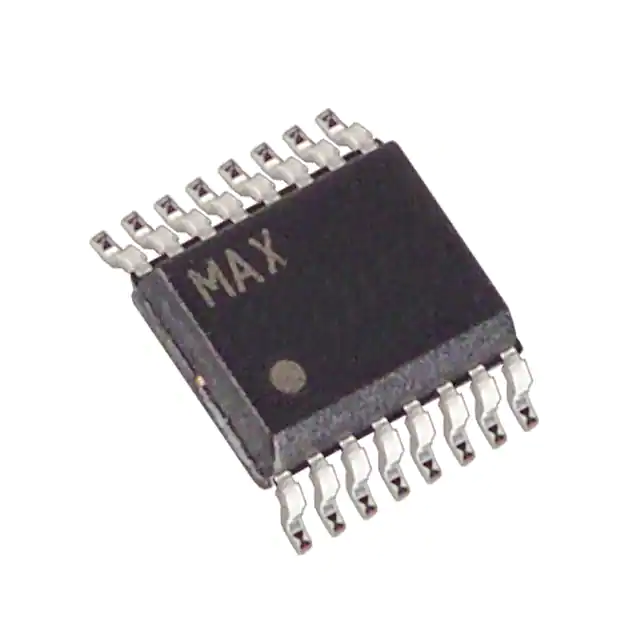

MAX14130FAEE+TDGTL ISO 1000VRMS 4CH GP 16QSOP |
1,431 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 1000Vrms | 25kV/µs (Typ) | 150Mbps | 7.5ns, 7.4ns | 1ns | 2ns, 2ns | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
ISOW1412DFMRDGT ISO 5KV 4CH RS422/485 20SOIC |
514 |
|
Datasheet |
ISOW14x2 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 100kV/µs (Typ) | 500kbps | 610ns, 610ns | 40ns | 4ns, 4ns (Max) | 1.71V ~ 1.89V, 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
MAX14435FAWE+TDGTL ISO 5000VRMS 4CH GP 16SOIC |
7,490 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 50kV/µs (Typ) | 200Mbps | 9.4ns, 9.2ns | 2ns | 1.6ns, 1.4ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
IL 717-3DGTL ISO 2500VRMS 4CH GP 16SOIC |
11,470 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
