Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Frequency Range	Type	Current Rating (Amps)	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Current Ratio	DC Resistance (DCR)	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
B82801B0803A020 CURR SENSE XFMR 1:20 SMD EPCOS - TDK Electronics	225	-	RFQ	Datasheet	B82801B	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	-	80 µH	-	1:20	-	0.8mOhm Primary, 400mOhm Secondary	-	Surface Mount	0.280" L x 0.320" W (7.11mm x 8.13mm)	0.200" (5.08mm)	Gull Wing
CST25-0200 CURR SENSE XFMR 1:120 125MA TH Triad Magnetics	158	-	RFQ	Datasheet	CST	Bulk	Active	50kHz ~ 500kHz	Invasive	25 A	76 mH	700VµS	1:200	-	4.5Ohm	-	Through Hole	0.669" L x 0.591" W (17.00mm x 15.00mm)	0.472" (12.00mm)	PC Pin
PMS9505.100NLT CURR SENSE XFMR 1:100 30A Pulse Electronics	159	-	RFQ	Datasheet	PMS9505	Tape & Reel (TR)	Active	20kHz	Invasive	30 A	7 mH	-	1:100	-	500µOhm Primary, 3.1Ohm Secondary (Max)	AEC-Q200	Surface Mount	0.504" L x 0.480" W (12.80mm x 12.20mm)	0.567" (14.40mm)	Gull Wing
SCS-2080 CURR SENSE XFMR 20:1 10A SMD Signal Transformer	983	-	RFQ	Datasheet	SCS	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	80 µH	-	20:1	-	700mOhm Primary, 400mOhm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PH9500.100NLT CURR SENSE XFMR 1:100 10A SMD Pulse Electronics	2,477	-	RFQ	Datasheet	PH9500.XXXNL	Tape & Reel (TR)	Active	-	Invasive	10 A	10 mH	-	1:100	-	3mOhm Primary, 2.1Ohm Secondary Max	-	Surface Mount	-	0.346" (8.80mm)	Gull Wing
CSE185L CURR SENSE XFMR 1:50 3A T/H Triad Magnetics	269	-	RFQ	Datasheet	-	Bulk	Active	50Hz ~ 400Hz	Invasive	3 A	-	-	1:50	-	19.5mOhm Primary, 23Ohm Secondary	-	Through Hole	0.846" L x 0.945" W (21.50mm x 24.00mm)	0.709" (18.00mm)	PC Pin
B82801A1135A125 CURR SENSE XFMR SMD EPCOS - TDK Electronics	1,440	-	RFQ	Datasheet	B82801A	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	-	1.28 mH	-	-	-	-	-	Surface Mount	0.185" L x 0.138" W (4.70mm x 3.50mm)	0.138" (3.50mm)	J Lead

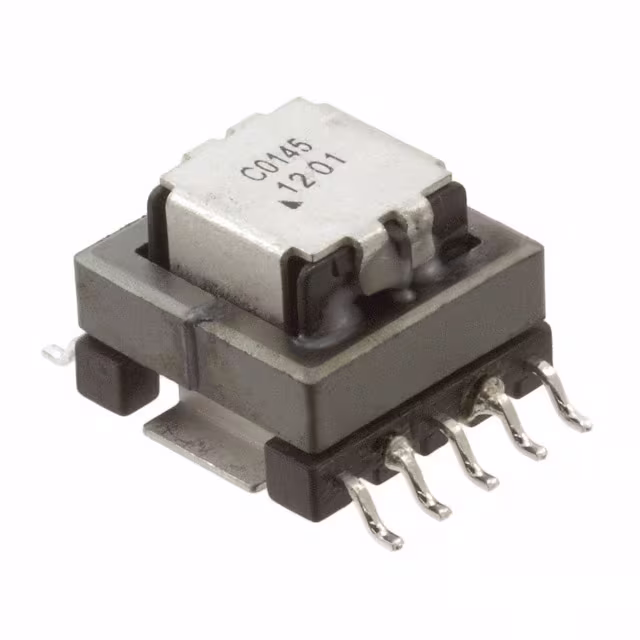

B82801C0145A050 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	379	-	RFQ	Datasheet	B82801C	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	1.4 mH	-	1:50	-	0.28mOhm Primary, 400mOhm Secondary	-	Surface Mount	0.560" L x 0.530" W (14.22mm x 13.46mm)	0.394" (10.00mm)	Gull Wing

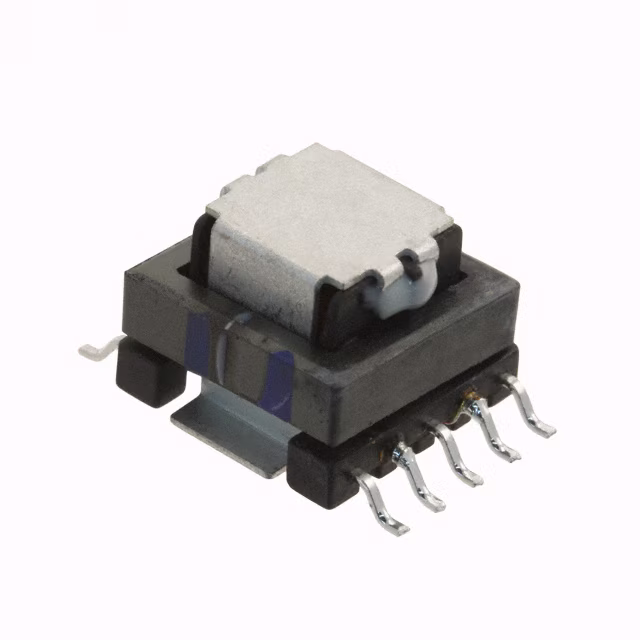

B82801C1265A150 CURR SENSE XFMR 1:150 SMD EPCOS - TDK Electronics	119	-	RFQ	Datasheet	B82801C	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	12.6 mH	-	1:150	-	0.28mOhm Primary, 2.2Ohm Secondary	-	Surface Mount	0.560" L x 0.530" W (14.22mm x 13.46mm)	0.394" (10.00mm)	Gull Wing
PE-68210NL CURR SENSE XFMR 1:1:50 SMD Pulse Electronics	804	-	RFQ	Datasheet	PE-68XXXNL	Tube	Active	50kHz ~ 500kHz	Invasive	-	3.8 mH	-	1:1:50	-	1.15mOhm Primary, 380mOhm Secondary	-	Surface Mount	0.495" L x 0.490" W (12.57mm x 12.45mm)	0.280" (7.11mm)	-
PE-68383NLT CURR SENSE XFMR 1:1:200 SMD Pulse Electronics	646	-	RFQ	Datasheet	PE-68XXXNL	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	59.2 mH	-	1:1:200	-	1.15mOhm Primary, 3.9Ohm Secondary	-	Surface Mount	0.495" L x 0.490" W (12.57mm x 12.45mm)	0.280" (7.11mm)	-
FIS155NL CURR SENSE XFMR 1:500 25A T/H Pulse Electronics	929	-	RFQ	Datasheet	FIS 1X5	Tube	Active	500kHz Max	Invasive	-	470 mH	1750VµS	1:500	-	16Ohm Max	-	Through Hole	0.693" L x 0.591" W (17.60mm x 15.00mm)	0.492" (12.50mm)	PC Pin

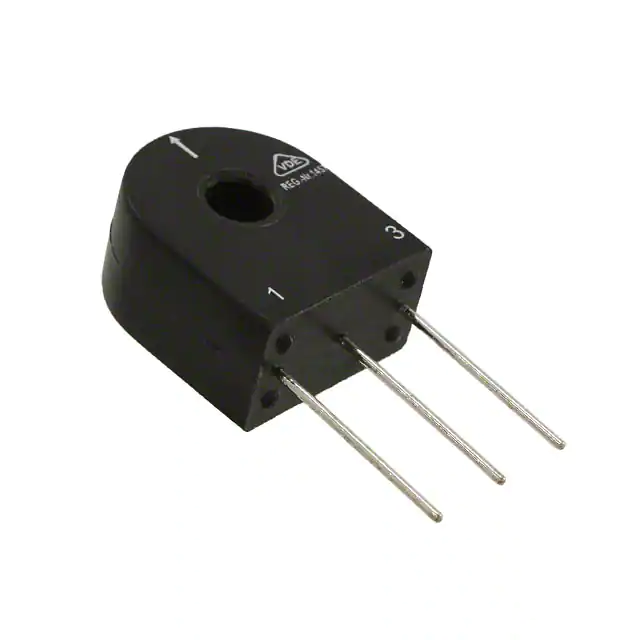

PE-51717NL CURR SENSE XFMR 20A T/H Pulse Electronics	1,658	-	RFQ	Datasheet	-	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	5 mH	-	-	50CT:1	-	-	Through Hole	0.900" L x 0.700" W (22.86mm x 17.78mm)	0.700" (17.78mm)	PC Pin
MR/C-01B CURR SENSE XFMR TH KEMET	725	-	RFQ	Datasheet	MR	Bulk	Active	60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	-	30Ohm	-	Through Hole	0.748" L x 0.689" W (19.00mm x 17.50mm)	0.311" (7.90mm)	PC Pin

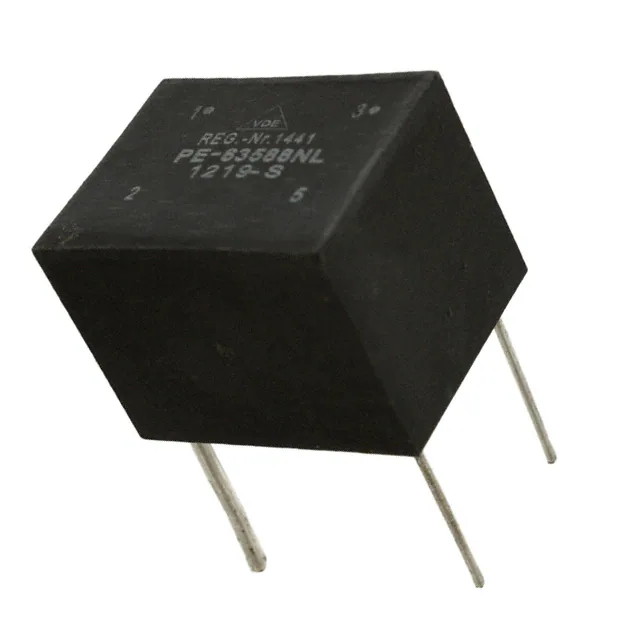

PE-63588NL CURR SENSE XFMR 20A T/H Pulse Electronics	437	-	RFQ	Datasheet	THT	Tray	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900" L x 0.700" W (22.86mm x 17.78mm)	0.700" (17.78mm)	PC Pin
PE-67050NL CURR SENSE XFMR 35A T/H Pulse Electronics	729	-	RFQ	Datasheet	-	Tray	Active	10kHz ~ 200kHz	Invasive	35 A	5 mH	-	-	50:1	15Ohm Primary, 700mOhm Secondary	-	Through Hole	0.565" L x 0.750" W (14.35mm x 19.05mm)	0.750" (19.05mm)	PC Pin
B78417A2185A003 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	1,459	-	RFQ	Datasheet	B78417	Tape & Reel (TR)	Active	50kHz ~ 250kHz	Invasive	-	7 mH	-	1:100	-	1.9mOhm Primary, 5Ohm Secondary	-	Surface Mount	0.417" L x 0.480" W (10.60mm x 12.20mm)	0.433" (11.00mm)	Gull Wing
7492540750 CURR SENSE XFMR 1:750 40A SMD Würth Elektronik	1,184	-	RFQ	Datasheet	MID-CST	Tape & Reel (TR)	Active	1MHz	Invasive	40 A	300 mH	1860Vµs	1:750	-	0.28mOhm Primary, 50.1Ohm Secondary	AEC-Q200	Surface Mount	0.570" L x 0.524" W (14.48mm x 13.30mm)	0.413" (10.50mm)	Gull Wing
7492540050 CURR SENSE XFMR 1:50 40A SMD Würth Elektronik	1,004	-	RFQ	Datasheet	MID-CST	Tape & Reel (TR)	Active	1MHz	Invasive	40 A	1.4 mH	124VµS	1:50	-	0.28mOhm Primary, 202mOhm Secondary	AEC-Q200	Surface Mount	0.570" L x 0.524" W (14.48mm x 13.30mm)	0.413" (10.50mm)	Gull Wing
7492540040 CURR SENSE XFMR 1:40 40A SMD Würth Elektronik	972	-	RFQ	Datasheet	MID-CST	Tape & Reel (TR)	Active	1MHz	Invasive	40 A	896 µH	99Vµs	1:40	-	0.28mOhm Primary, 130mOhm Secondary	AEC-Q200	Surface Mount	0.570" L x 0.524" W (14.48mm x 13.30mm)	0.413" (10.50mm)	Gull Wing
