Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ9731-1C-12DC4R1RELAY AUTOMOTIVE SPDT 30A 12V American Zettler |
942 |
|
Datasheet |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor, MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ9871-2A-12DETRELAY AUTOMOTIVE DPST 30A 12V American Zettler |
877 |
|
Datasheet |
AZ9871 | Tray | Active | Non Latching | 47.2 mA | 12VDC | DPST-NO (2 Form A) | 30 A | 24VDC - Max | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ9731-1C-12DC3R1RELAY AUTOMOTIVE SPDT 30A 12V American Zettler |
330 |
|
Datasheet |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

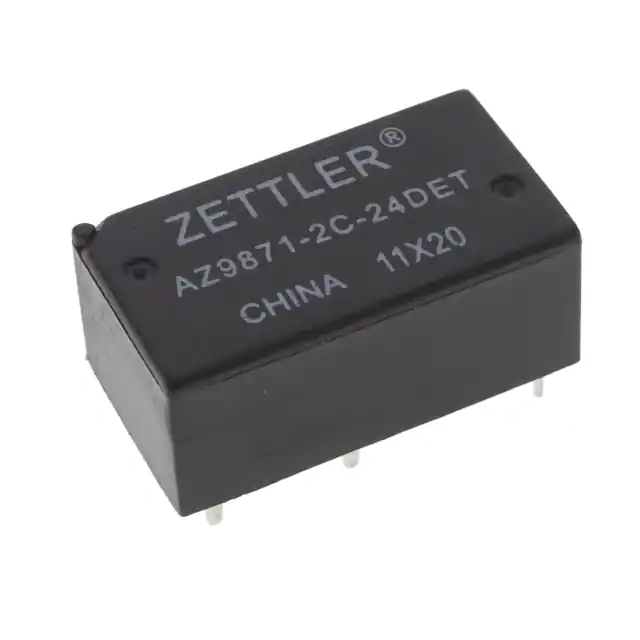

AZ9871-2C-24DETRELAY AUTOMOTIVE DPDT 30A 24V American Zettler |
2,378 |
|
Datasheet |
AZ9871 | Tray | Active | Non Latching | 23.8 mA | 24VDC | DPDT (2 Form C) | 30 A | 24VDC - Max | 13.8 VDC | 3 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|
AZ9891J-2C-12DERELAY AUTOMOTIVE DPDT 30A 12V American Zettler |
998 |
|
Datasheet |
AZ9891J | Tray | Active | Non Latching | 66.7 mA | 12VDC | DPDT (2 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ983-1C-12DERELAY AUTOMOTIVE SPDT 60A 12V American Zettler |
1,124 |
|
Datasheet |
AZ983 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|

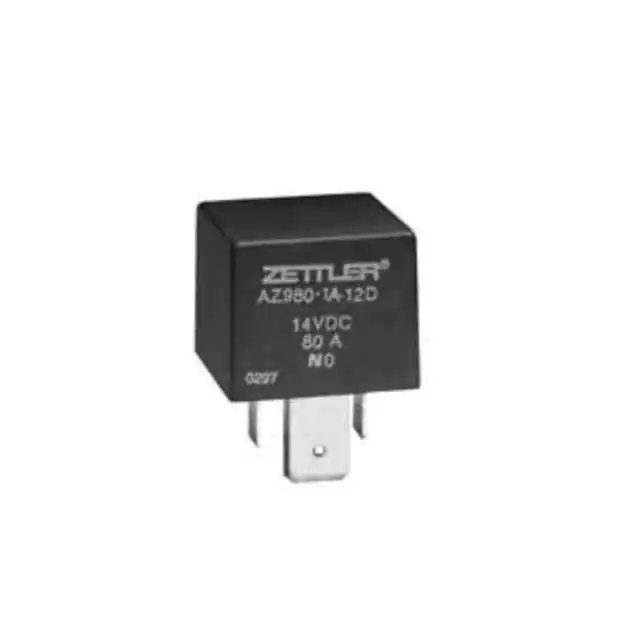

AZ980-1A-12DERELAY AUTOMOTIVE SPST 80A 12V American Zettler |
832 |
|
Datasheet |
AZ980 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ980-1C-12DERELAY AUTOMOTIVE SPDT 60A 12V American Zettler |
986 |
|
Datasheet |
AZ980 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
AZ9731-1A-12DC3ERELAY AUTOMOTIVE SPST 40A 12V American Zettler |
299 |
|
Datasheet |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC2RELAY AUTOMOTIVE SPDT 40A 12V American Zettler |
383 |
|
Datasheet |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO w/ Plastic mounting bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
