Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSA0J331MCN1GSCAP ALUM POLY 330UF 20% 6.3V SMD Nichicon |
12,010 |
|
Datasheet |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|

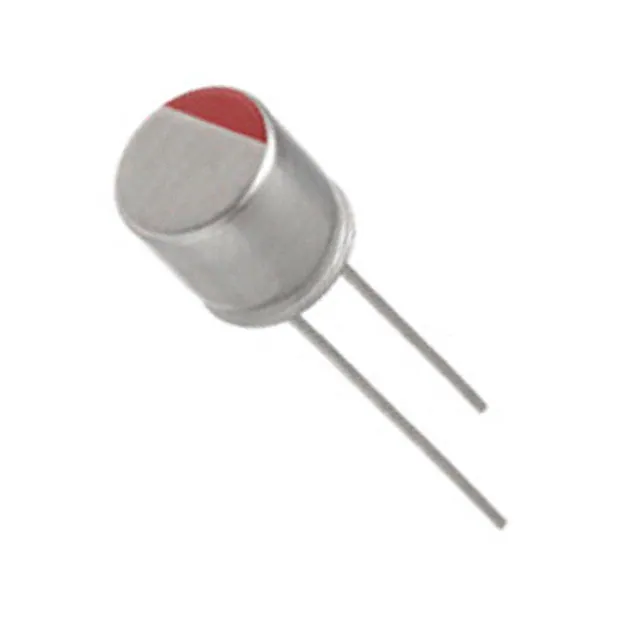

RL80J821MDN1KXCAP ALUM POLY 820UF 20% 6.3V TH Nichicon |
16,603 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
RL81C221MDN1KXCAP ALUM POLY 220UF 20% 16V TH Nichicon |
12,192 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
RHS0J102MCN1GSCAP ALUM POLY 1000UF 20% 6.3V Nichicon |
9,238 |
|
Datasheet |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 515 mA @ 120 Hz | 5.15 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RHA1C151MCN1GSCAP ALUM POLY 150UF 20% 16V SMD Nichicon |
6,448 |
|
Datasheet |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 322 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCS0J221MCL1GSCAP ALUM POLY 220UF 20% 6.3V SMD Nichicon |
2,915 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCR1H820MCL6GSCAP ALUM POLY 82UF 20% 50V SMD Nichicon |
10,935 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 50 V | 26mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

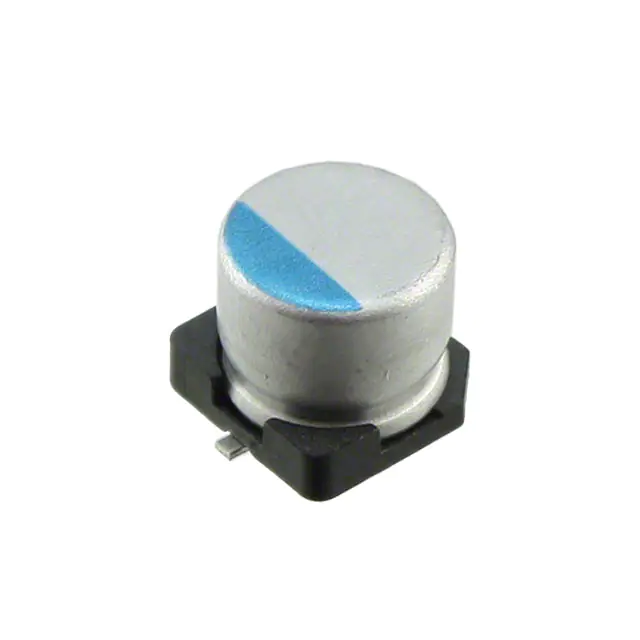

PCX1V100MCL1GSCAP ALUM POLY 10UF 20% 35V SMD Nichicon |
1,312 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 35 V | 85mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 800 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

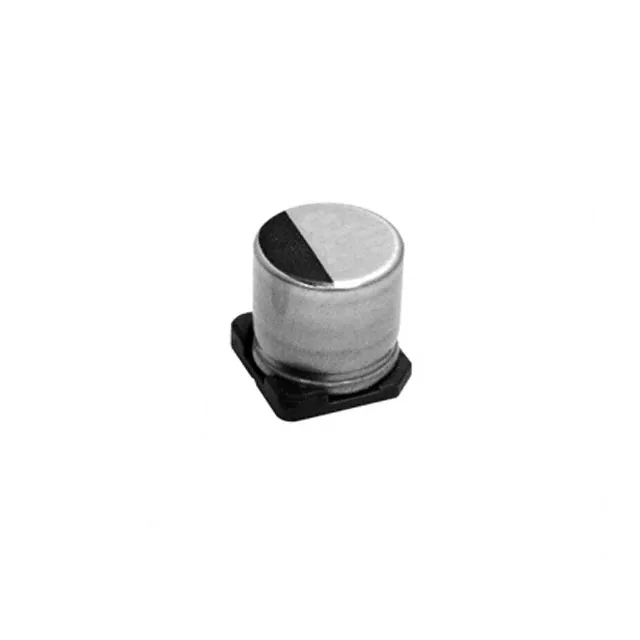

PCF1C151MCL1GSCAP ALUM POLY 150UF 20% 16V SMD Nichicon |
5,314 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

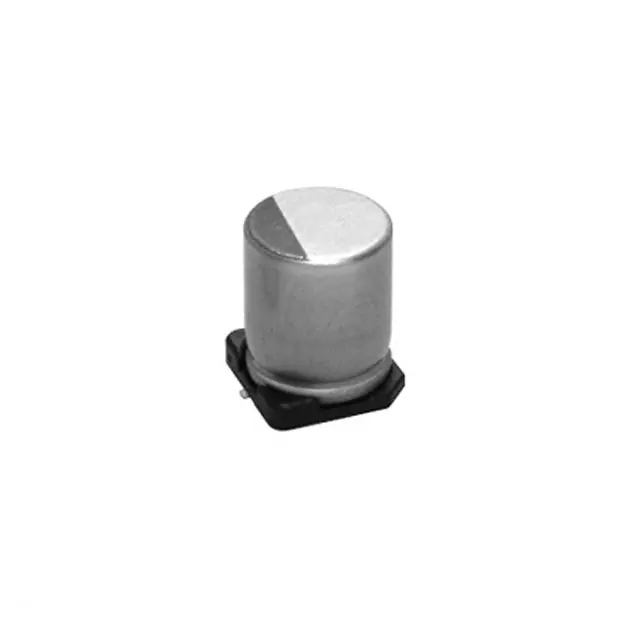

PCG1A101MCL1GSCAP ALUM POLY 100UF 20% 10V SMD Nichicon |
3,682 |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
