Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
ALS75-12AC/DC CONVERTER 12V 75W Triad Magnetics |
1,226 |
|
![]() Datasheet |
ALS75 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC | 12V | - | - | - | - | - | 6.2 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.65" H (127.0mm x 76.2mm x 42.0mm) |
![]() |
ALS75-24AC/DC CONVERTER 24V 75W Triad Magnetics |
511 |
|
![]() Datasheet |
ALS75 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC | 24V | - | - | - | - | - | 3.1 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.65" H (127.0mm x 76.2mm x 42.0mm) |
![]() |

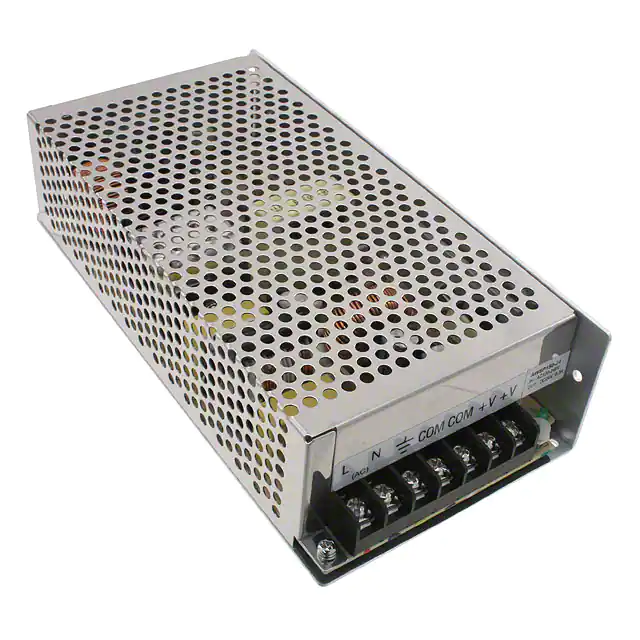

AWSP150-24AC/DC CONVERTER 24V 150W Triad Magnetics |
99 |
|
![]() Datasheet |
AWSP150 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm) |
![]() |
AWSP150-12AC/DC CONVERTER 12V 150W Triad Magnetics |
57 |
|
![]() Datasheet |
AWSP150 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm) |
![]() |

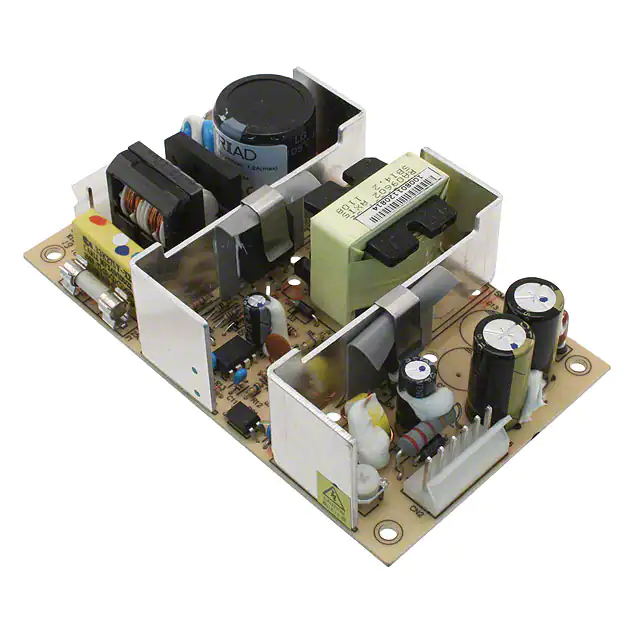

ALS50-24AC/DC CONVERTER 24V 50W Triad Magnetics |
230 |
|
![]() Datasheet |
ALS50 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
![]() |

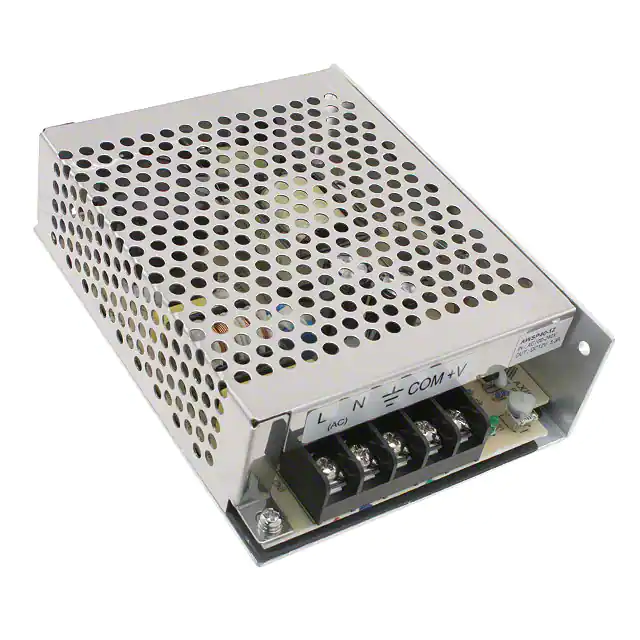

AWSP40-12AC/DC CONVERTER 12V 40W Triad Magnetics |
128 |
|
![]() Datasheet |
AWSP40 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
![]() |

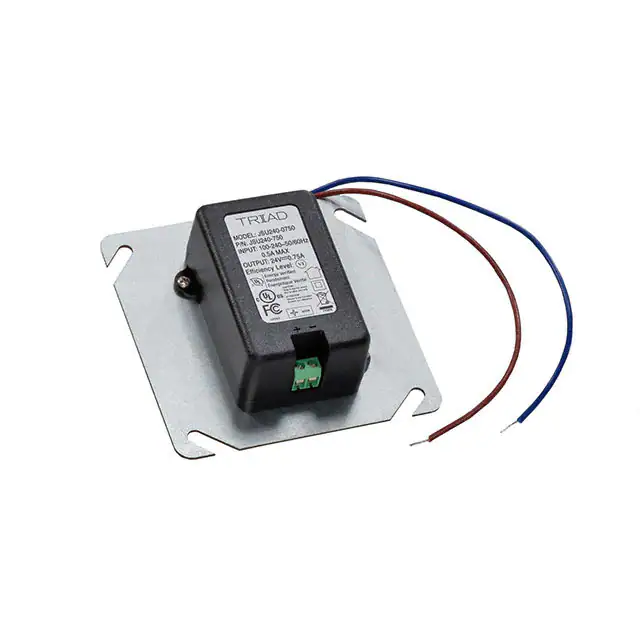

JSU240-0750AC/DC CONVERTER 24V 18W Triad Magnetics |
21 |
|
![]() Datasheet |
JSU240 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 750 mA | - | - | - | - | - | 18W | ITE (Commercial) | 3 kV | 0°C ~ 40°C | Universal Input | Rack Mount | 2.95" L x 1.89" W x 1.22" H (74.9mm x 48.0mm x 31.0mm) |
![]() |
JSU120-1500AC/DC CONVERTER 12V 18W Triad Magnetics |
35 |
|
![]() Datasheet |
JSU120 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 18W | ITE (Commercial) | 3 kV | 0°C ~ 40°C | Universal Input | Rack Mount | 2.95" L x 1.89" W x 1.22" H (74.9mm x 48.0mm x 31.0mm) |
![]() |

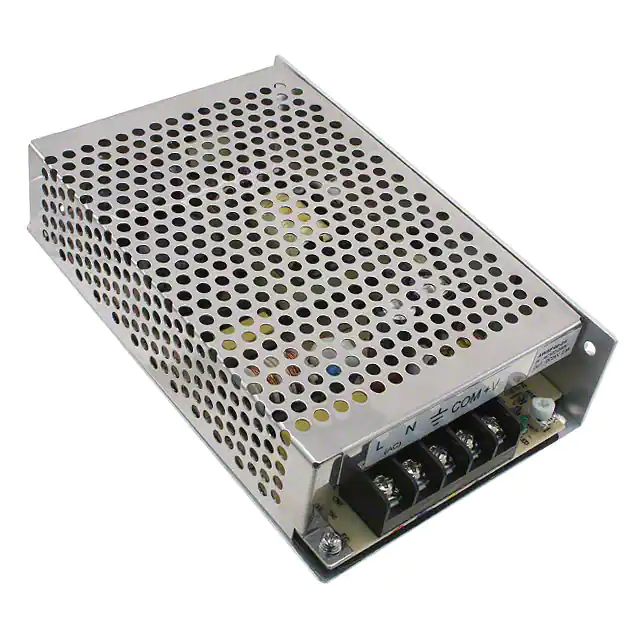

AWSP60-12AC/DC CONVERTER 12V 60W Triad Magnetics |
30 |
|
![]() Datasheet |
AWSP60 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) |
![]() |

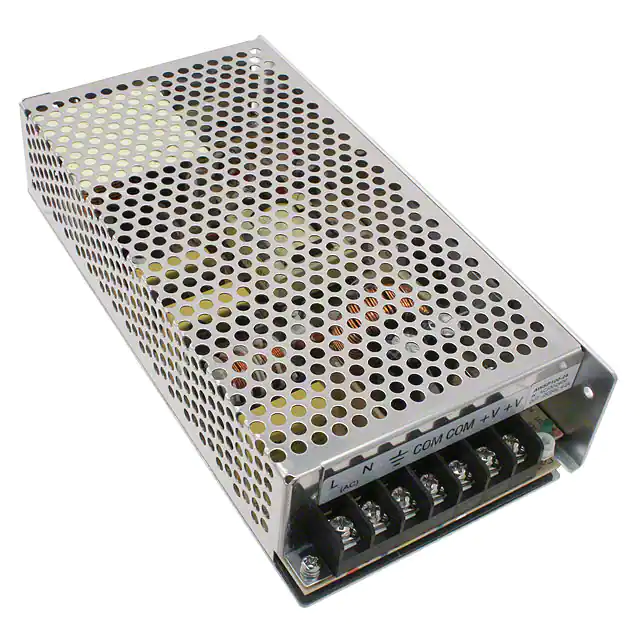

AWSP100-24AC/DC CONVERTER 24V 100W Triad Magnetics |
27 |
|
![]() Datasheet |
AWSP100 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.65" H (199.0mm x 98.0mm x 42.0mm) |
